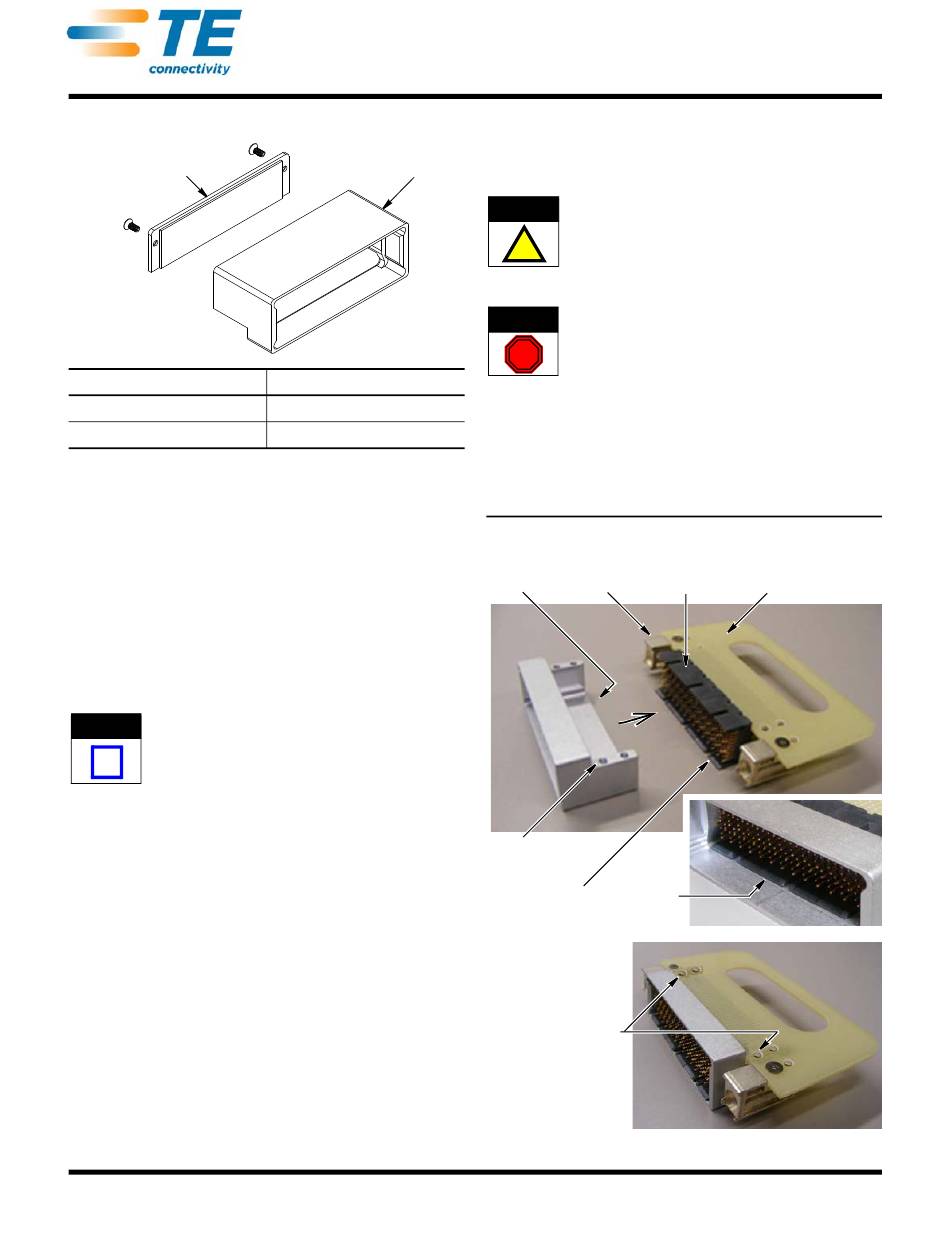

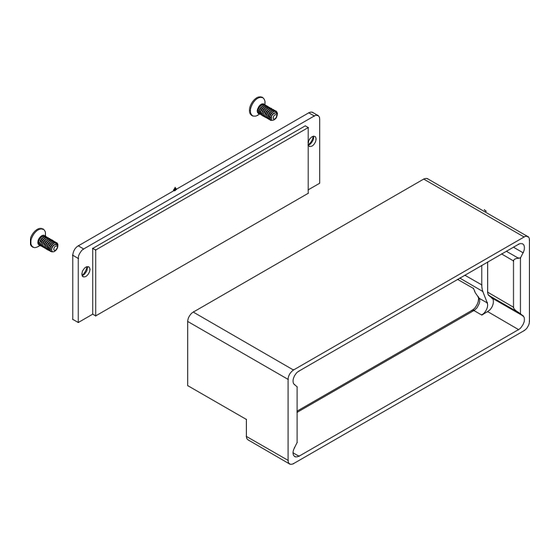

TE Connectivity FORTIS Zd Series Assembly

Backplate
(with 2 Self-Locking
Attachment Screws)
PART NUMBER
2102114-[ ]
2102077-[ ]
Figure 1
1. INTRODUCTION
This instruction sheet covers the assembly and
disassembly procedures for FORTIS Zd Metal Shell
Module Assembly Kits 2102114-[ ] and 2102077-[ ].
Each kit is designed to be assembled onto FORTIS Zd
2- or 3-pair center header modules arranged from 10
to 60 columns installed onto a printed circuit (pc) board.
Guide modules can also be used with the assembly.
The header modules and guide modules are not included
with the kit; however, they are available separately.
All numerical values in this instruction sheet are in
NOTE
metric units [with U.S. customary units in brackets].
Dimensions are in millimeters. Figures are not
i
drawn to scale.
Reasons for reissue of this instruction sheet are
provided in Section 6, REVISION SUMMARY.
2. DESCRIPTION
Each module assembly kit consists of a metal shell
and backplate with self-locking attachment screws.
Four M2x0.4 screws, not included with the kit, are
required to attach the metal shell to the printed circuit
(pc) board. The length of the screws depends on pc
board thickness.
3. ASSEMBLY
1. Prepare the pc board using the recommended
pc board layout shown on the applicable customer
drawing for the module assembly kit or header modules.
2. Install the header modules and guide modules
onto the pc board according to Application
Specification 114-13267.
