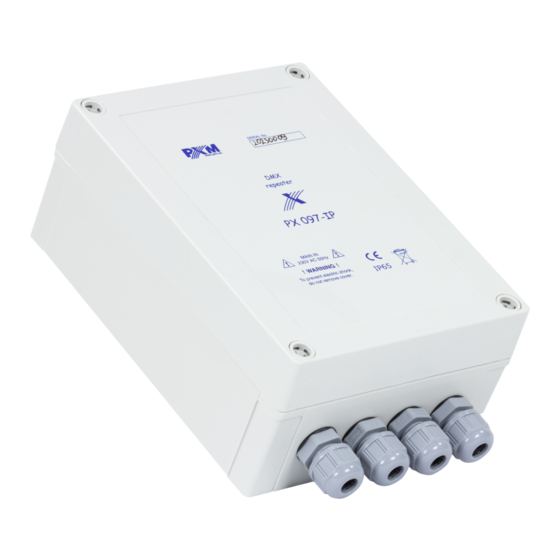

- Page 1 PX097-IP PX097-IP-K DMX Repeater – IP User manual...
-
Page 2: Table Of Contents
3 Connectors....................5 4 Connection scheme...................6 5 Dimensions....................7 6 Technical data.....................7 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-1 BDO register number 000005972 www.pxm.pl... -
Page 3: Description
Description DMX Repeater is a universal repeater and splitter of the DMX signal. The device allows to create ramifications in the complex stage DMX installations and to amplify the DMX signal, that means, enables to connect next 32 receivers and to lengthen the DMX line. According to the DMX standard, the receivers in a DMX route must be connected in series. -
Page 4: Safety Conditions
Safety conditions Repeater PX097-IP is a device powered directly from standard 230V AC grid, what cause electric shock when safety rules are not observed. Therefore it is necessary to observe the following: 1. Repeater installation must be performed by a person holding the appropriate qualifications, according to the manual. -
Page 5: Connectors
Connectors D+ D- GND D+ D- GND D+ D- GND Dmx Input Dmx Output1 Dmx Output2 power supply DMX input 230V AC DMX output... -
Page 6: Connection Scheme
Connection scheme DMX line (max. 32 signal receiver, 300 m) DMX Repeater PX097-IP DMX controller TERMINATOR... -
Page 7: Dimensions
Dimensions Remember about additional space for cables coming out of the cable glands max. 205 Technical data type PX097-IP / PX097-IP-K IP class DMX I / O lines 1 / 2 DMX line connectors screw connectors (terminal block) isolation I / O breakdown voltage >... - Page 8 Podłęże, 16.01.2020 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: DMX Repeater – IP Product code: PX097-IP / PX097-IP-K meets the requirements of the following standards, as well as harmonised...
