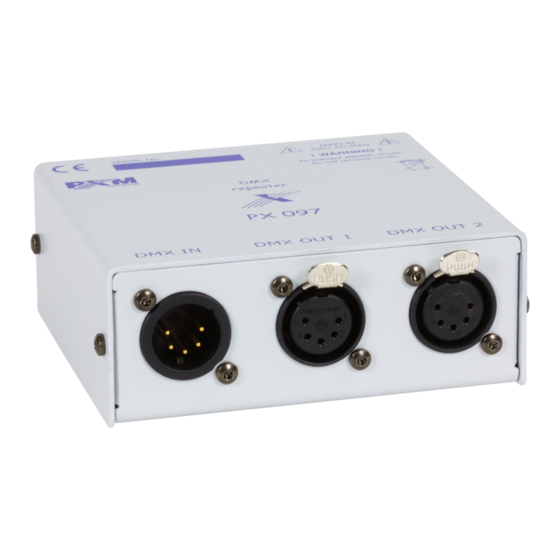

- Page 1 PX097 DMX Repeater INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
4. Front panel..................... 5. Technical specification................6. Declaration of conformity................ Manufacturer reserves the right to make modifications in order to improve device operation. PXM s.c. tel.: (+48 12) 626 46 92 ul. Przemysłowa 12 fax: (+48 12) 626 46 94 30-701 Kraków... -
Page 3: Safety Conditions
The proper maintenance of these features is ensured by application of the Repeater. With the PX097 DMX Repeater you can split the incoming DMX signal into two independent branches and amplify the DMX signal. The device has an optical isolation between input and two outputs. -
Page 4: Dmx Signal Connection
DMX route using the repeater. PUSH SHIELD DMX+ DMX- ATTENTION!! The DMX cable shield cannot be connected to the device ground! 3.1. Exemplary DMX line DMX lines (32 receivers, 500 m max. each) DMX Repeater PX097 PUSH PUSH DMX controller TERMINATOR... -
Page 5: Rules For Creating Dmx Connections
2. The devices have to be connected in series. 3. When the PX097 repeater is applied, each of two outputs is treated as a beginning of a new DMX line. 4. The maximal number of devices in a DMX line is 32. -
Page 6: Declaration Of Conformity
Przemysłowa 12 tel: +48 12 626 46 92 http://www.pxm.pl 30-701 Kraków, Poland fax: +48 12 626 46 94 DECLARATION OF CONFORMITY according to guide lines 73/23/EWG and 89/336/EWG PXM s.c.
