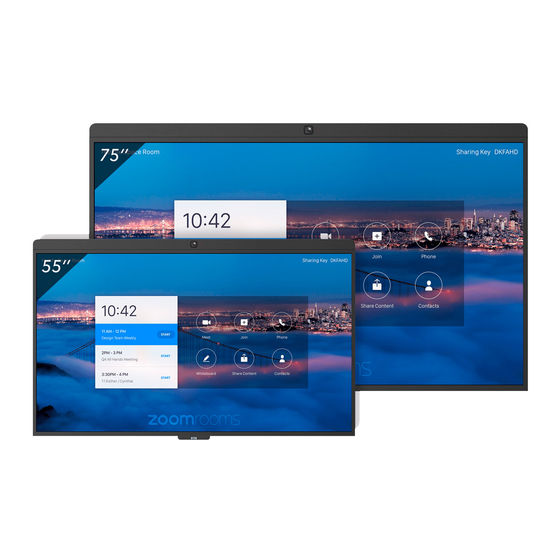

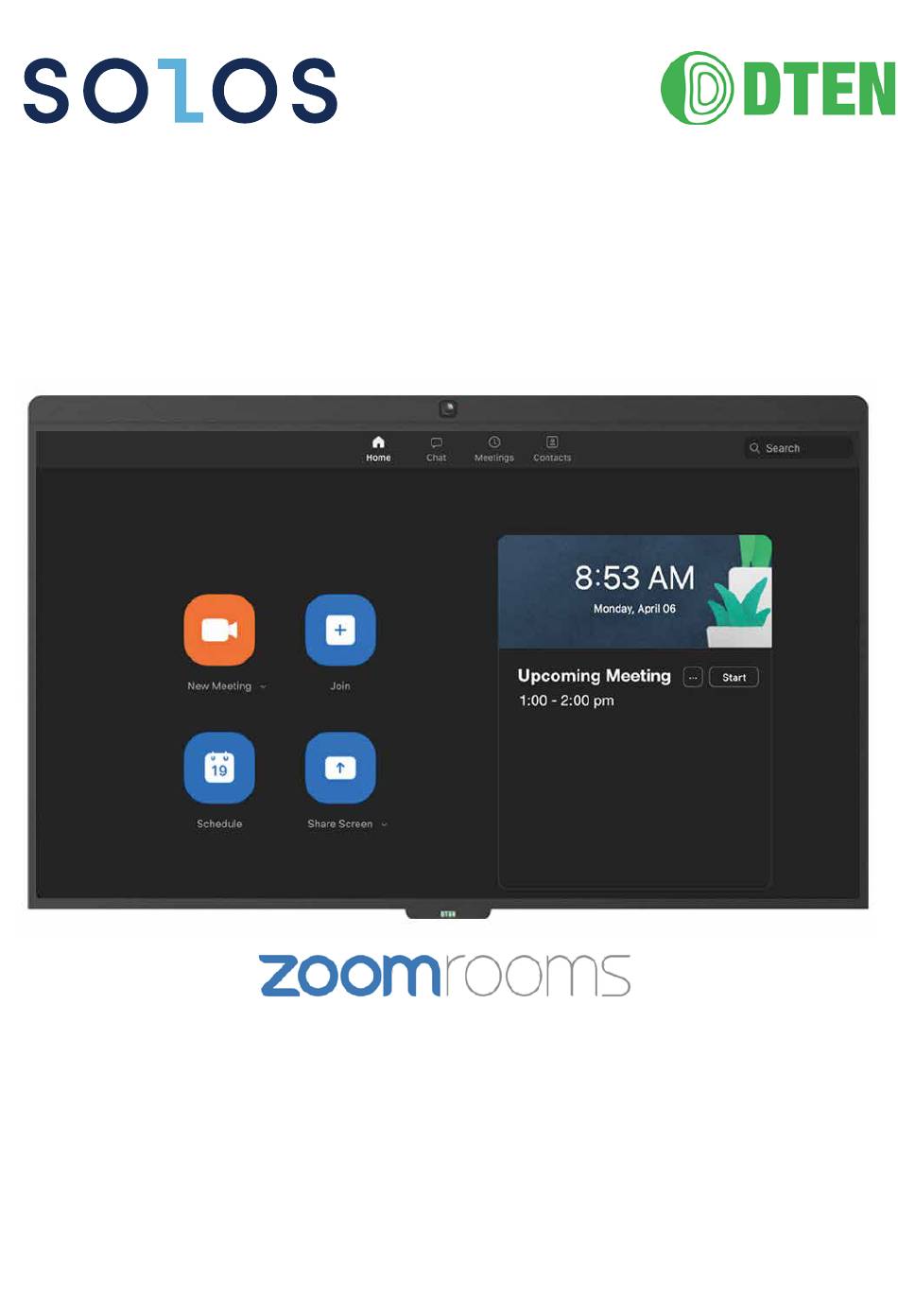

- Page 1 75‘’ User and Installation Manual CERTIFIED HARDWARE & Technology Partner D7 Single 55” DTEN ser Manual support@dten.com sales@dten.com...
-
Page 2: Table Of Contents
DTEN Offers a one-year limited warranty. For full warranty information,see our online statement available at: DTEN.COM DTEN acceptes no liability for any losses or claims resulting from misuse or incorrect installation or operation of this product, or any associated equipment. DTEN D7 Single 75”... -
Page 3: Introduction
INTRODUCTION The DTEN D7 is a complete ZOOM Rooms TOUCH conferencing Installation, including all hardware and software. The built-in, Al enhanced,16 element microphone array with 4K camera, offers a best-in-class conferencing, wireless, screen sharing, and white boarding experience.(All software is pre-installed.) -
Page 4: Important Safety Information
During cleaning,always disconnect the power; then use a soft dry or slightly damp cloth. Never use damaged equipment. Unboxing: Remove parts and packaging from the top of the box. DTEN D7 Single 75” User Manual Page 4 D7 Single 55” DTEN ser Manual support@dten.com... -
Page 5: Package Contents
PACKAGE CONTENTS DTEN D7 HD Interactive Unit — AV Panel — Wall Mounting Brackets — Monitor Mounting Clips — Wi-Fi Antenna x2 — D7 Stylus — Power cord — DTEN D7 Single 75” User Manual Page 5 D7 Single 55”... -
Page 6: Conference Room Setup
• Participants’faced should not be n shadow. • Rooms with many hard surfaces may be acoustically ‘’ambient’’.Acoustics can be improved by adding thick carpeting, sound absorbing furniture(such as bookcases), or acoustic panels/partitions. DTEN D7 Single 75” User Manual Page 6... -
Page 7: Wall Mounting
WALL MOUNTING DTEN D7 monitors ship with wall mounting brackets, mounting clips, plugs, and screws. The brackets should be wall mounted in an appropriate location and the clips attached to the back of the monitors as shown in the following pages The plugs and screws supplied are intended for use on masonry surfaces. -
Page 8: Attaching Av Panel
ATTACHING AV PANEL On the Display: Attach the AV panel to the front(as shown). The Stylus may be attached to the magnetic clip/shoe. AV Panel Stylus Holder DTEN D7 Single 75” User Manual Page 8... -
Page 9: Attaching Antenna, Ethernet And Power Cord
(Recommended) Antenna Ethernet (Recommended – not supplied) Antenna 1. Insert the power cord into the outlet. Arrange or dress cables using ties or tape DTEN D7 Single 75” User Manual Page 9 D7 Single 55” DTEN ser Manual support@dten.com sales@dten.com... -
Page 10: Power Up D7
POWER UP D7 With the power connected: • The unit will power up and ZOOM Rooms will launch. Note: In the event that the monitor does not power up, it may be necessary to press the Power button on the rear right hand of the Display.) -
Page 11: Zoom Rooms Setup
Prerequisite: account. If you need to purchase ZOOM Rooms ZOOM Rooms , visit https://zoom.us/pricing Signing in to ZOOM Rooms - Follow the instruction: https://support.zoom.us/hc/en-us/ articles/115003659546-signing-in-to-Zoon-Rooms - Follow more information visit: https://support.zoom.us/hc/en-us/ articles/360028757332-DTEN-D7-Frequently-Asked-Questions DTEN D7 Single 75” User Manual Page 11... -
Page 12: Product Toxic Or Hazardous Substances Statement
The environmentally friendly life of the product is 10 years when used in accordance with this manual. Dispose of and recycle this product in accordance with local regulations. This equipment is a Class-A product and may produce radio interference in the environment. DTEN D7 Single 7 5” User Manual Page 12...
