EVOnet JB2100 Installation Manual

S47759 EVOnet-JB2100 INSTALLATION MANUAL

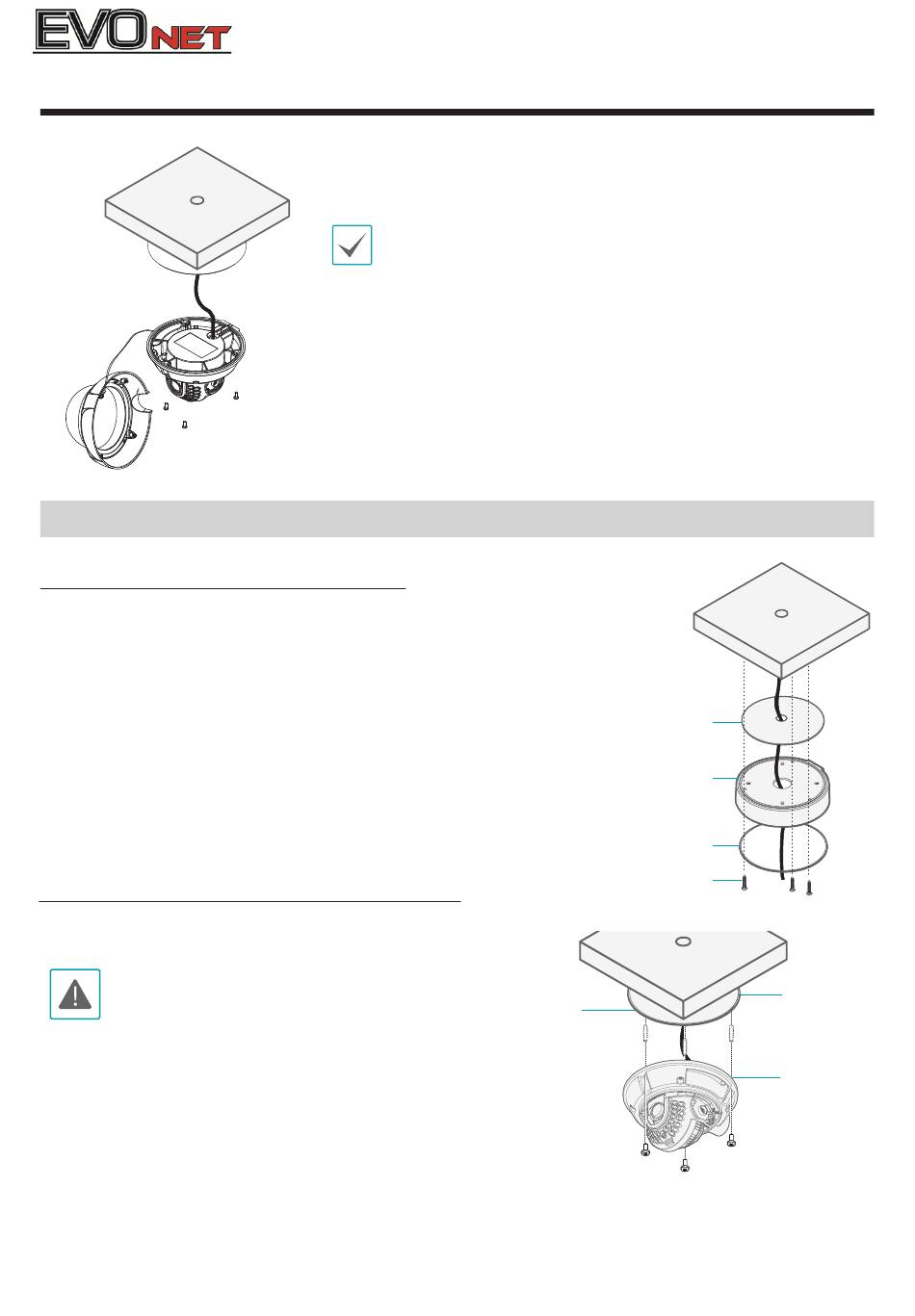

Mounting

Mount the bracket to the wall as follows:
1
Insert cables from external devices, network
and power adapter to the sponge and bracket.
2
Mount the sponge to the wall and then
bracket to the sponge by using the anchors
and screws.
3
Attach the rubber onto bracket.
Connect your camera to the bracket as follows:
4
Screw the camera body onto bracket.
Make sure that the rubber is attached
onto bracket.
EVOnet Series 4 "B"
S47325 EVOnet-C-ID420-MZIR
S47328 EVOnet-C-VD420-MZIR
S47347 EVOnet-C-ID420-MZ
S47348 EVOnet-C-VD420-MZ
This manual is intended for users of the EVOnet-JB2100 wall
mounting bracket. It includes instructions for mounting the
EVOnet-JB2100 wall mounting bracket to a wall.
• This bracket is intended to be used with EVOnet-
series 4 "B" cameras. Do not use it with other
models of cameras.
• This installation should be performed
by a qualified service personnel in conformance to all
local codes.
• You may need to reinforce the wall. If the wall
is not strong enough to support the camera,
the camera may fall.
• Do not use this product for other purposes.
Sponge
Bracket
Rubber
Tapping Screw 4X20, 3EA
Rubber
Bracket
Camera
Body
