EVOnet WM2000 Installation Manual

EVOnet-WM2000 INSTALLATION MANUAL

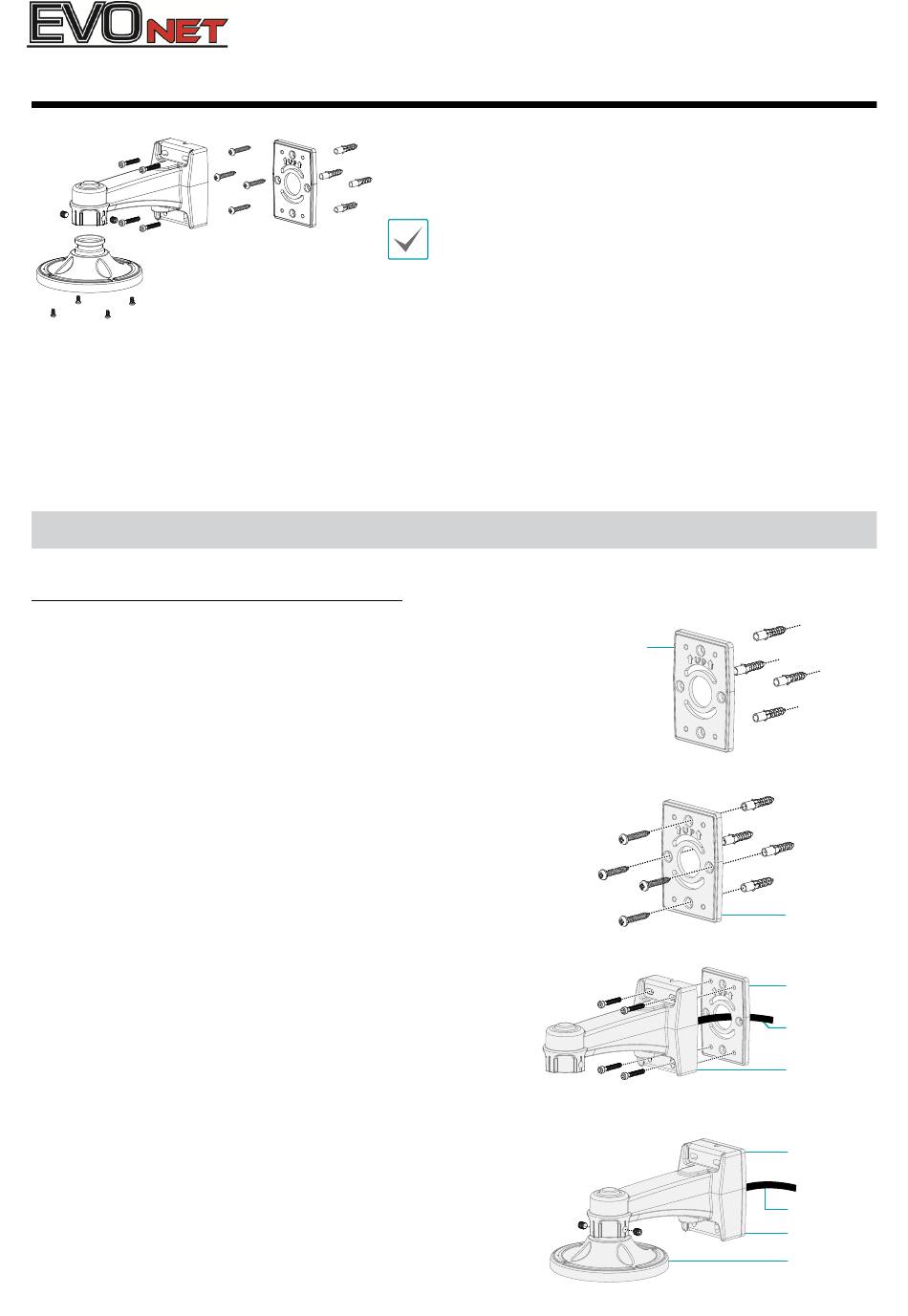

Mounting
Mount the bracket to the wall as follows:
1
Mount bracket 1 to the wall by using the anchors
and screws.
2
Insert cables from external devices,
network and power adapter through the hole
in bracket 1 and the rear of bracket 2.
3
Screw bracket 2 to bracket 1.
4
Assemble bracke 3 into bracket 2 and fix it by using
the screws.
This manual is intended for users of the EVOnet-WM2000
wall mounting bracket. It includes instructions for
mounting the EVOnet-WM2000 wall mounting bracket to a
wall.
• This bracket is intended to be used with
EVOnet series 4 cameras. Do not use it with
other models of cameras.
• This installation should be performed
by a qualified service personnel in conformance
to all local codes.
• You may need to reinforce the wall. If the wall
is not strong enough to support the camera,
the camera may fall.
• Do not use this product for other purposes.
Bracket 1
Bracket 1
Bracket 1
Cable
Bracket 2
Bracket 1
Cable
Bracket 2
Bracket 3
