EVOnet CM2000 Installation Manual

EVOnet-CM2000 INSTALLATION MANUAL

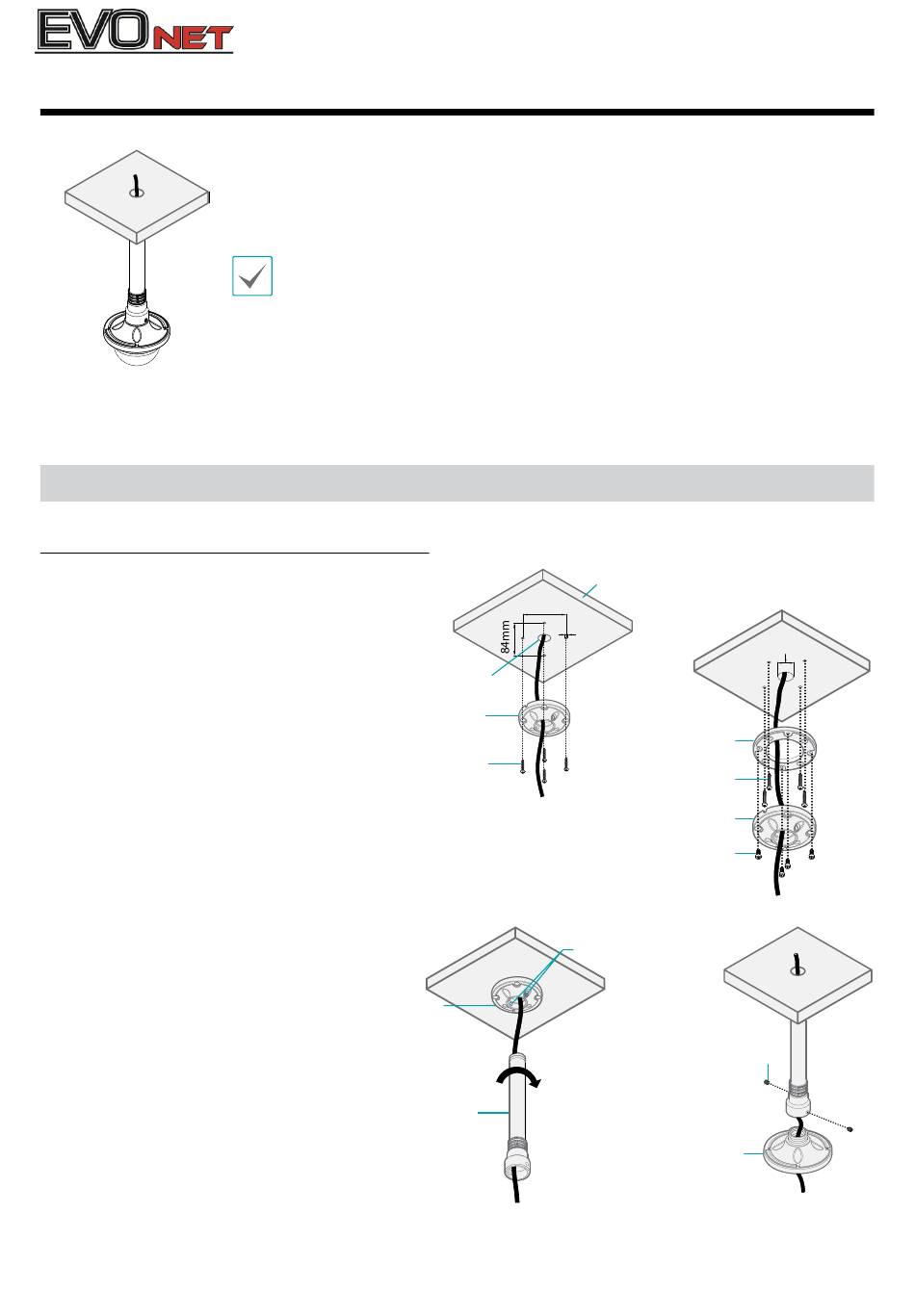

Mounting

Mount the bracket to the ceiling as follows:
1
Insert cables from external
devices, network and power
adapter into base.
2
Mount base to the ceiling by
using the anchors and screws.
Or, mount bracket 1 to the
ceiling and then the base to
bracket 1 by using the anchors
and screws.
3
Insert cables from external
devices, network and power
adapter through the ceiling
pipe.
4
Assemble the ceiling pipe into
the base.
5
Insert cables from external
devices, network and power
adapter into bracket 2.
6
Assemble bracket 2 into the
ceiling pipe and fix it by using
the screws.
This manual is intended for users of the EVOnet-CM2000 ceiling mounting
bracket. It includes instructions for mounting the EVOnet-CM2000 ceiling
mounting bracket to a ceiling.
• This bracket is intended to be used with EVOnet series 4 Dome
cameras. Do not use it with other models of cameras.
• This installation should be performed by a qualified service
personnel in conformance to all local codes.
• You may need to reinforce the ceiling. If the ceiling is not strong
enough to support the camera, the camera may fall.
• Do not use this product for other purposes.
Hole Ø25~30mm
Screw 4X25, 4EA
Ceiling Pipe
84mm (3.31")
Ø 6.5mm
(0.26")
Base
Hexagon Socket 5X10, 4EA
Screw Set M8X8, 2EA
Base
Ceiling
Ø 30mm (1.18")
Bracket 1
Screw 4X25, 4EA
Base
Screw Set M8X8, 2EA
Bracket 2
