1-2. KD-60X690E/KD-60X695E/KD-60X697E/KD-60X6700E

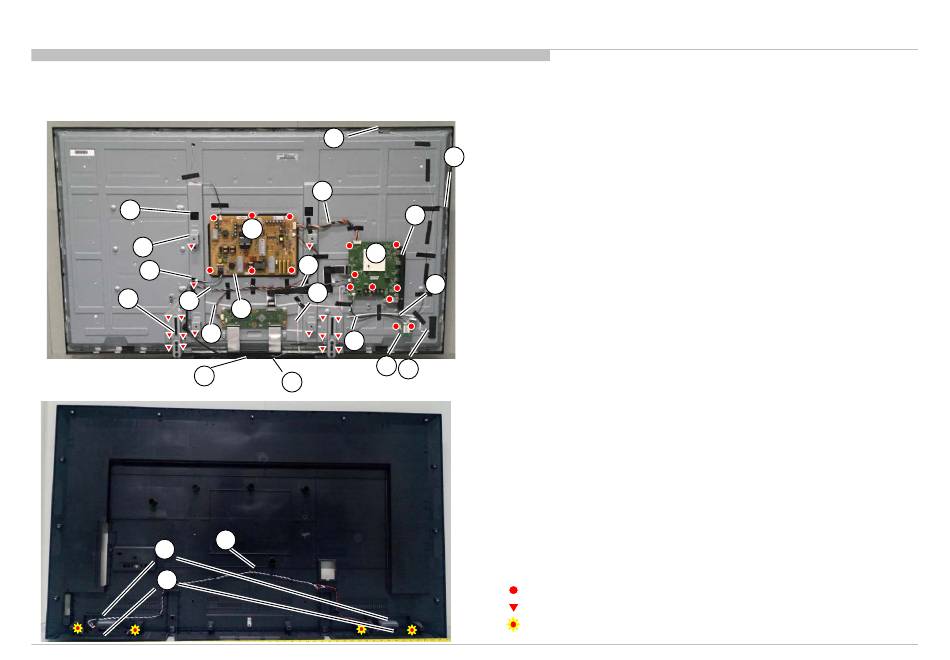

1-2-4. OVERALL
30
27
31
28
17
22
26
24
32
KD-60X690E(UC2/LA1)/KD-60X695E(AR4/LA8)/KD-60X697E(CO1)/KD-60X6700E(AZ1/ME6/EA4)
9
16
11
12
19
20
25
23
15
13
18
REF.NO. PART No.
9
1-522-035-11 ANTENNA 1 (W)
10
1-522-033-11 ANTENNA 2 (B)
11
1-897-219-11 MOUNTED PWB POWER UNIT
12
1-897-214-11 MOUNTED PWB A
1-897-209-11 MOUNTED PWB A
10
1-897-217-11 MOUNTED PWB A
1-897-211-11 MOUNTED PWB A
1-897-210-11 MOUNTED PWB A
1-897-208-11 MOUNTED PWB A (AZ1, ME6, EA4) For AZ1/ME6/EA4
29
13
1-897-212-11 MOUNTED PWB H
14
1-897-213-11 MOUNTED PWB KEY
15
1-897-207-11 MOUNTED PWB WF
16
1-910-112-59 CONNECTOR ASSY 15P (MB-PSU)
21
17
1-910-112-60 CONNECTOR ASSY (MB-SPK 1)
18
1-910-112-61 CONNECTOR ASSY (MB-SPK 2)
19
1-910-112-56 LVDS CABLE 41P (MB-Panel)
20
1-910-112-57 CONNECTOR ASSY 10P (MB-IR)
21
1-910-112-58 CONNECTOR ASSY 6P (MB-key)
14
22
1-910-112-63 CONNECTOR ASSY (PSU-Panel)
23
1-910-112-62 CONNECTOR ASSY (MB-WIFI)
24
1-859-242-11 SPEAKER 12W
25
4-723-286-01 SHEET, INSULATION
26
4-723-287-01 DECO
27
4-545-671-01 BRACKET, VESA (60)
28
4-723-278-01 BRACKET, BOTTOM
29
4-723-297-01 BRACKET, SIDE IO
4-723-279-01 BRACKET, SIDE IO (LA8/CO1/AR4) For LA8/CO1/AR4
30
4-729-982-01 CUSHION W25*T5
31
4-723-294-01 CLAMP, CABLE
32
4-729-986-01 NWF 145*8*0.35mm
2-990-421-41 SCREW(PSW)(M3X6)
4-729-978-01 SCREW, +PSW M3X8 W8
4-459-864-01 SCREW, +PWTP2 4X10
DISASSEMBLY AND PARTS LIST
DESCRIPTION
MARK
For UC2
For LA8
For LA1
For AR4
For CO1
For UC2/LA1/
EA4/ME6/AZ1
12
