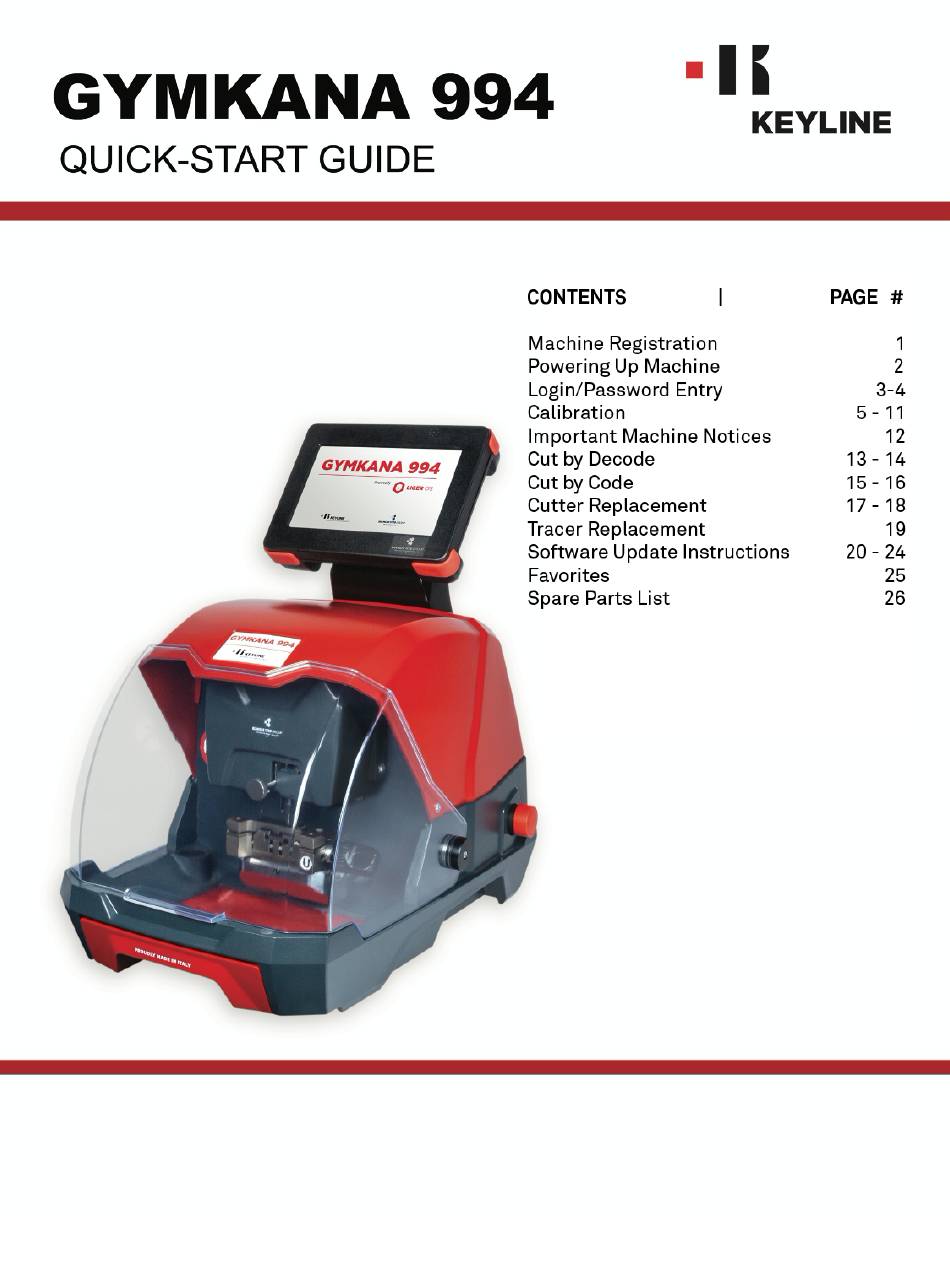

Keyline GYMKANA 994 Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the GYMKANA 994 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Keyline GYMKANA 994

Summary of Contents for Keyline GYMKANA 994

  • Page 2 * IMPORTANT * REGISTERING YOUR MACHINE Thank you for your purchase of the Keyline Gymkana 994. Before continuing with machine setup and use, please complete the following; COMPLETE PRODUCT REGISTRATION FORM Complete enclosed form and fax to 216-803-0202 or e-mail to info@keyline- .
  • Page 3 POWERING MACHINE ON/OFF Cable Connection & Powering Machine ON *MOBILE USERS: YOU MUST USE A PURE SINE WAVE INVERTER WITH 1100 WATTS (or greater) TO POWER THE MACHINE OR MACHINE MOTOR WILL NOT WORK PROPERLY Attach power cord to back of machine and plug into a properly grounded outlet. Attached phone jack cables to console and to back of machine.
  • Page 4 LOGIN / PASSWORD ENTRY TIP: Use included stylus with touch screen to ensure accurate selections Leave password screen blank, no Select ADMINSTRATOR default password is set, Select NEXT. To create password, see below. PASSWORD CREATION (OPTIONAL) -Skip this section if you do not want a password- From Main Menu, Select SETUP, USERS and then CHANGE PASSWORD.
  • Page 5 LOGIN / PASSWORD ENTRY, cont. TIP: Use included stylus with touch screen to ensure accurate selections Leave password screen blank, no Select ADMINSTRATOR default password is set, Select NEXT. To create password, see below.
  • Page 6 CALIBRATION TIP: Use included stylus with touch screen to ensure accurate selections Follow the steps below Select SETUP. Select CALIBRATIONS. Select TRACER SETUP. PRESS START. Loosen the tracer knob, lower the TRACER and tighten the knob. PRESS OK...

  • Page 7: Calibration , Cont

    CALIBRATION cont. REMOVE the V037 CUTTER. PRESS OK Install the T00 Calibration TRACER into the cutter spindle. Tighten the set screw and CLOSE THE SHIELD. PRESS OK The MACHINE will START the setup process.
  • Page 8 CALIBRATION cont. When prompted, loosen the tracer knob, LIFT THE TRACER and MOVE IT TO THE RIGHT. Close the shield. PRESS OK PRESS OK. Write down the X & Y values and PRESS THE SAVE BUTTON. PRESS YES to save the results.
  • Page 9 CALIBRATION cont. IMPORTANT Run the Tracer Setup process a second time and compare the X & Y values of this process with the previous set. The values should not change more than +/- 3. EXAMPLE: If during the first calibration process X= 0 and Y= -4. In the second calibration process: X must be between values -3 and +3 Y must be between values -7 and -1.
  • Page 10 CALIBRATION cont. Install the CUTTER V037. PRESS OK The machine will move the tracer over the jaw. Loosen the tracer knob, lower the TRACER, tighten the KNOB. PRESS OK...
  • Page 11 CALIBRATION cont. PRESS OK and then PRESS BACK. Press JAW SETUP and SELECT U JAW Make note of the values of X,Y,Z. Completely remove the CHIPS from the PRESS START. TRACER, the JAW and the KEY. PRESS OK.
  • Page 12 CALIBRATION cont. PRESS SAVE. PRESS OK. IMPORTANT Run the calibration a second time and compare the X, Y & Z values with the first set of numbers and make sure that they do not change more than +/- 3. EXAMPLE: If the first calibration values are X= -44, Y= -51 and Z= -28 In the second calibration values can be: X must be between -47 and -41...
  • Page 13 KEY MATERIAL The Gymkana 994 defaults to cutting brass keys as the key material type. If you are cutting a different type of metal key, such as steel, nickel silver or aluminum, you can make the selection in the cutting screen.
  • Page 14 DO NOT DECODE PLASTIC KEYS! Only metal keys can be decoded and cut on the Gymkana 994. IMPORTANT: Make sure to clean the jaw, cutter and tracer of all chips before decoding or cutting keys by code. 1. Select: SETUP...
  • Page 15 CUT BY DECODE, cont. Confirm key is clamped as Decoding in process shown, then select NEXT Decode complete; Select OK Depths and key code displayed Select NEXT, then proceed with cutting the key by code (refer to Page 8 – CUT BY CODE, cont.
  • Page 16 CUT BY CODE TIP: Cutting a test key is also recommended on first use to verify correct key cutting procedure. IMPORTANT: Make sure to clean the jaw, cutter and tracer of all chips before decoding or cutting keys by code. Select MAKE, then NEXT Select VEHICLES Select MODEL, then NEXT...
  • Page 17 CUT BY CODE, cont. Key depths appear, select NEXT Clamp the key in the jaw, select CUT Confirm the key is properly installed on the jaw and select OK Flip key in jaw, removing key shavings with brush, select OK Cut complete...

  • Page 18: Cutter Replacement

    CUTTER REPLACEMENT 1. Select: SETUP Select UTILITY Select SETUP Select REPLACE CUTTER Current cutter installed displays, select YES to continue TO REMOVE CUTTER: 1. Insert 2.5mm Allen tool into set screw and once initial release, loosen ½ turn. Remove Allen tool. 2.
  • Page 19 CUTTER REPLACEMENT , cont. TO INSTALL NEW CUTTER: 1. Insert new cutter until it stops. 2. Tighten set screw with 2.5mm Allen tool. Select YES once complete Select OK to reset cutter counter Utility screen appears, select HOME to go to Main Menu...
  • Page 20 TRACER REPLACEMENT 1. Select: SETUP Select UTILITY Select SETUP Select REPLACE TRACER Current tracer installed displays, select YES to continue Remove tracer using 2.5mm allen tool, then select OK Install new tracer until it stops and tighten down set screw with 2.5mm allen tool You must perform the tracer setup, tracer adjustment and jaw calibration...

  • Page 21: Software Update Instructions

    SOFTWARE UPDATE INSTRUCTIONS SOFTWARE UPDATE VIA USB MEMORY STICK & KEYONLINE WEBSITE WHAT YOU WILL NEED: Console, USB Memory Stick (included with machine), PC with Internet connection NOTE: USB Memory Stick must be blank with no files on it To check your current software version, see ‘Version SW’ below the Main Menu tab...
  • Page 22 STEP 1: Prepare USB Memory Stick with Update File At MAIN MENU, select SETUP At SETUP MENU, select UPDATES Then select KEYONLINE VIA PC Select YES to Software Update Insert USB Memory Stick, select OK USB stick inserts on left side of console Console prepares software file Remove USB stick, Select OK...
  • Page 23 STEP 2: Install Update File on USB from PC Insert USB stick into USB port on PC then go to http://keyonline.keyline.it On site, double-click CHOOSE FILE Go to File Explorer, locate the drive where the USB stick is assigned and double-click the drive Highlight the ‘.cks’...
  • Page 24 STEP 2, cont: Install Update File on USB from PC Package creation completed should appear. You will be prompted with a pop up at the bottom of the screen, that shows the downloaded file. Click on the drop down arrow to the right of the download file and select OPEN IN FOLDER Once you have the downloaded file...
  • Page 25 STEP 3: Complete Software Installation on Console Insert USB into console and select OK Update begins Select YES to confirm update Machine will re-boot and power back up as update continues Update continues; progress bar on bottom Update successful; select OK...
  • Page 26 FAVORITES Selecting Favorites helps bypass Make, Model and Year selections that you most commonly use to get you right to the Code/Decode/Direct screen Go through the menu and select the Make, then the Model, then the Year and Code Series range of the vehicle you want to save a favorite for At Main Menu, select VEHICLES...
  • Page 27 V Clamp – VW, Jeep Wrangler OPZ10260B Calibration Tracer – T00 RIC05350B Jaw calibration template RIC10952B Tip Stop B3405 “H" Clamp - Orange OPZ09523B Anti-glare console screen protector B9979 USB Flash Drive for Software Updates PROMO-15 ©2019 Keyline USA. All Rights Reserved.
