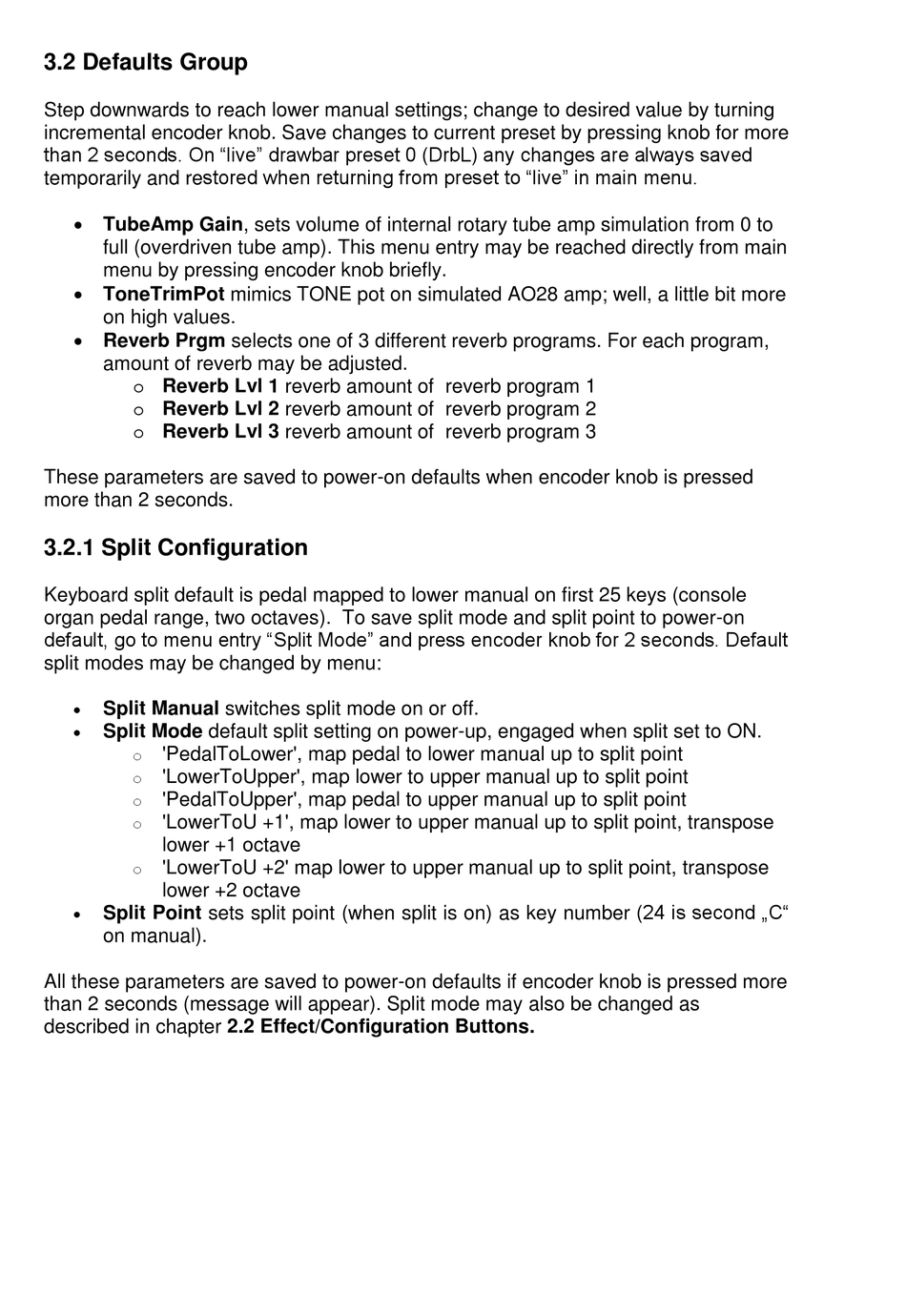

3.2 Defaults Group
Step downwards to reach lower manual settings; change to desired value by turning
incremental encoder knob. Save changes to current preset by pressing knob for more
than 2 seconds. On "live" drawbar preset 0 (DrbL) any changes are always saved
temporarily and restored when returning from preset to "live" in main menu.
 TubeAmp Gain, sets volume of internal rotary tube amp simulation from 0 to
full (overdriven tube amp). This menu entry may be reached directly from main
menu by pressing encoder knob briefly.
 ToneTrimPot mimics TONE pot on simulated AO28 amp; well, a little bit more
on high values.
 Reverb Prgm selects one of 3 different reverb programs. For each program,
amount of reverb may be adjusted.
o Reverb Lvl 1 reverb amount of reverb program 1
o Reverb Lvl 2 reverb amount of reverb program 2
o Reverb Lvl 3 reverb amount of reverb program 3
These parameters are saved to power-on defaults when encoder knob is pressed
more than 2 seconds.
3.2.1 Split Configuration
Keyboard split default is pedal mapped to lower manual on first 25 keys (console
organ pedal range, two octaves). To save split mode and split point to power-on
default, go to menu entry "Split Mode" and press encoder knob for 2 seconds. Default
split modes may be changed by menu:

Split Manual switches split mode on or off.

Split Mode default split setting on power-up, engaged when split set to ON.
o 'PedalToLower', map pedal to lower manual up to split point
o 'LowerToUpper', map lower to upper manual up to split point
'PedalToUpper', map pedal to upper manual up to split point
o
'LowerToU +1', map lower to upper manual up to split point, transpose
o
lower +1 octave
o 'LowerToU +2' map lower to upper manual up to split point, transpose
lower +2 octave
Split Point sets split point (when split is on) as key number (24 is second „C"

on manual).
All these parameters are saved to power-on defaults if encoder knob is pressed more
than 2 seconds (message will appear). Split mode may also be changed as
described in chapter 2.2 Effect/Configuration Buttons.
