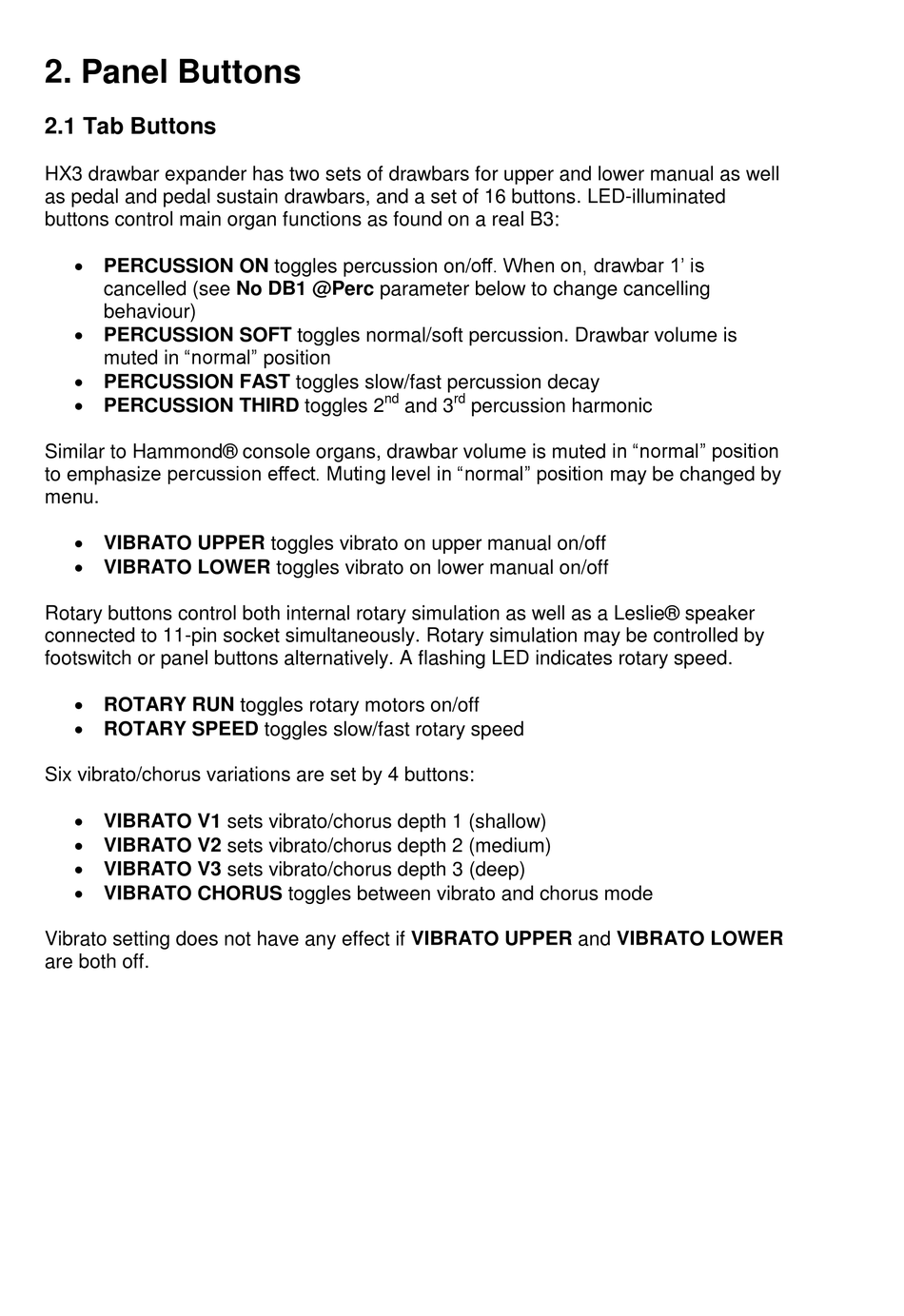

2. Panel Buttons

2.1 Tab Buttons
HX3 drawbar expander has two sets of drawbars for upper and lower manual as well
as pedal and pedal sustain drawbars, and a set of 16 buttons. LED-illuminated
buttons control main organ functions as found on a real B3:
 PERCUSSION ON toggles percussion on/off. When on, drawbar 1' is
cancelled (see No DB1 @Perc parameter below to change cancelling
behaviour)
 PERCUSSION SOFT toggles normal/soft percussion. Drawbar volume is
muted in "normal" position
 PERCUSSION FAST toggles slow/fast percussion decay
 PERCUSSION THIRD toggles 2
Similar to Hammond® console organs, drawbar volume is muted in "normal" position
to emphasize percussion effect. Muting level in "normal" position may be changed by
menu.
 VIBRATO UPPER toggles vibrato on upper manual on/off
 VIBRATO LOWER toggles vibrato on lower manual on/off
Rotary buttons control both internal rotary simulation as well as a Leslie® speaker
connected to 11-pin socket simultaneously. Rotary simulation may be controlled by
footswitch or panel buttons alternatively. A flashing LED indicates rotary speed.
 ROTARY RUN toggles rotary motors on/off
 ROTARY SPEED toggles slow/fast rotary speed
Six vibrato/chorus variations are set by 4 buttons:
 VIBRATO V1 sets vibrato/chorus depth 1 (shallow)
 VIBRATO V2 sets vibrato/chorus depth 2 (medium)
 VIBRATO V3 sets vibrato/chorus depth 3 (deep)
 VIBRATO CHORUS toggles between vibrato and chorus mode
Vibrato setting does not have any effect if VIBRATO UPPER and VIBRATO LOWER
are both off.
nd rd
and 3 percussion harmonic
