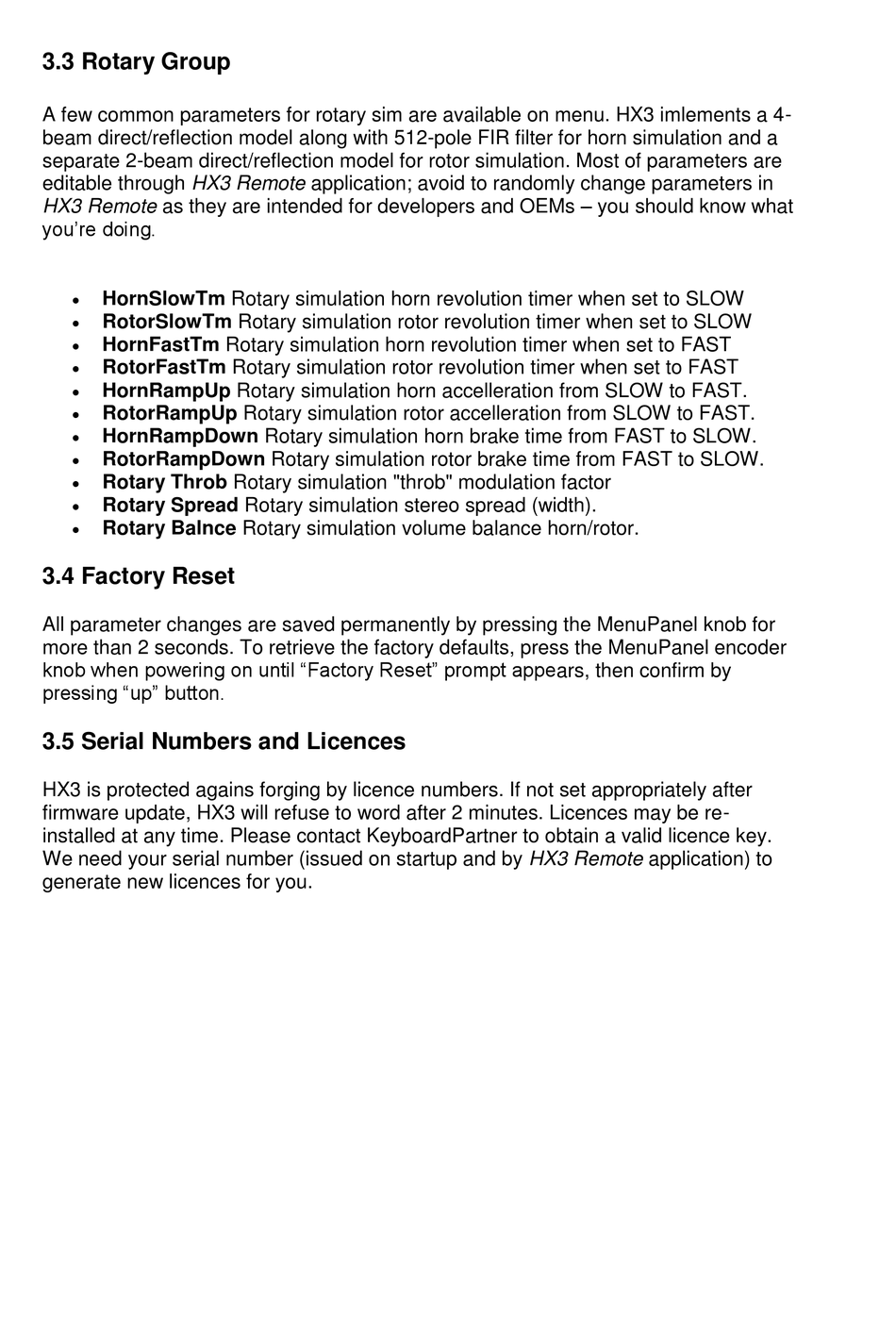

3.3 Rotary Group
A few common parameters for rotary sim are available on menu. HX3 imlements a 4-
beam direct/reflection model along with 512-pole FIR filter for horn simulation and a
separate 2-beam direct/reflection model for rotor simulation. Most of parameters are
editable through HX3 Remote application; avoid to randomly change parameters in
HX3 Remote as they are intended for developers and OEMs – you should know what
you're doing.

HornSlowTm Rotary simulation horn revolution timer when set to SLOW

RotorSlowTm Rotary simulation rotor revolution timer when set to SLOW

HornFastTm Rotary simulation horn revolution timer when set to FAST

RotorFastTm Rotary simulation rotor revolution timer when set to FAST

HornRampUp Rotary simulation horn accelleration from SLOW to FAST.

RotorRampUp Rotary simulation rotor accelleration from SLOW to FAST.

HornRampDown Rotary simulation horn brake time from FAST to SLOW.

RotorRampDown Rotary simulation rotor brake time from FAST to SLOW.

Rotary Throb Rotary simulation "throb" modulation factor

Rotary Spread Rotary simulation stereo spread (width).

Rotary Balnce Rotary simulation volume balance horn/rotor.
3.4 Factory Reset
All parameter changes are saved permanently by pressing the MenuPanel knob for
more than 2 seconds. To retrieve the factory defaults, press the MenuPanel encoder
knob when powering on until "Factory Reset" prompt appears, then confirm by
pressing "up" button.
3.5 Serial Numbers and Licences
HX3 is protected agains forging by licence numbers. If not set appropriately after
firmware update, HX3 will refuse to word after 2 minutes. Licences may be re-
installed at any time. Please contact KeyboardPartner to obtain a valid licence key.
We need your serial number (issued on startup and by HX3 Remote application) to
generate new licences for you.
