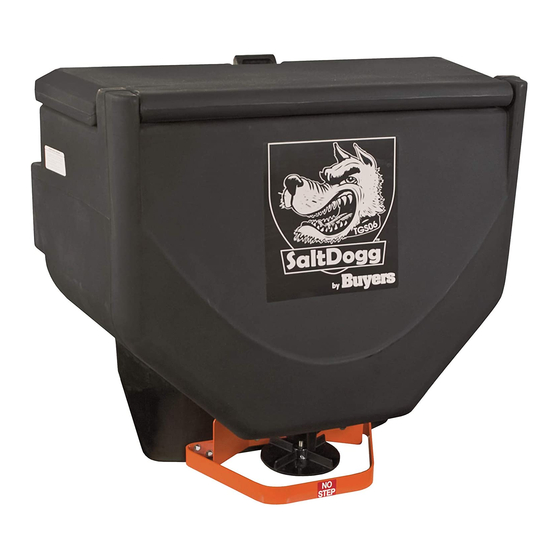

TGS06 Salt Spreader
Safety Precautions
WARNING
Observe the following Safety Precautions before, during
and after operating this spreader. By following these pre-
cautions and common sense, possible injury to persons
and potential damage to this machine may be avoided.
1. Read this entire Installation Instruction before oper-
ating this spreader.
2. Read all safety decals on the spreader before
operating.
3. Verify that all personnel are clear of the spreader
spray area before starting or operating this spreader.
4. Do not adjust, clean, lubricate or unclog material
jams without first turning off the spreader.
5. Make sure the spreader is securely fastened to the
vehicle in accordance with this manual.
6. Do not operate a spreader that is in need of main-
tenance or repairs.
7. Always disconnect the battery before removing or
replacing electrical components.
Spreader Assembly
Check contents of box against parts list to make sure
all components are included. When ordering replace-
ment or spare parts refer to parts list
(figures 8 and 9) for part numbers.
Installation Instructions
Phone (440) 974-8888 • Fax (440) 974-0165
Toll-Free Fax 800-841-8003 • saltdogg.com
SPREADER WARRANTY
This warranty replaces all previous warranties and no
employee of this company is authorized to extend addi-
tional warranties, or agreements, or implications not
explicitly covered herein.
Buyers Products Company warrants all parts of the
product to be free from defects in material and workman-
ship for a period of one (1) year. Parts must be properly
installed and used under normal conditions. Normal wear
is excluded.
Any part, which has been altered, including modifica-
tions, misuse, accident, or lack of maintenance will not
be considered under this warranty.
The sole responsibility of Buyers Products Company
under this warranty is limited to repairing or replacing any
part(s), which are returned, prepaid, 30 days after such
defect is discovered, and returned part(s) are found to be
defective by Buyers Products Company.
Authorization from Buyers Products Company must
be obtained before returning any part. The following
information must accompany defective parts returned
to Buyers Products Company: RMA #, spreader model,
serial number, date installed, and distributor from whom
purchased.
Buyers Products Company shall not be liable for damage
arising out of failure of any unit to operate properly, or
failure, or delay in work, or for any consequential dam-
ages. No charges for transportation or labor performed
on any part will be allowed under this warranty.
1
9049 Tyler Blvd. • Mentor, Ohio 44060
—continued inside
Advertisement
Table of Contents
Related Manuals for SaltDogg TGS06
Summary of Contents for SaltDogg TGS06

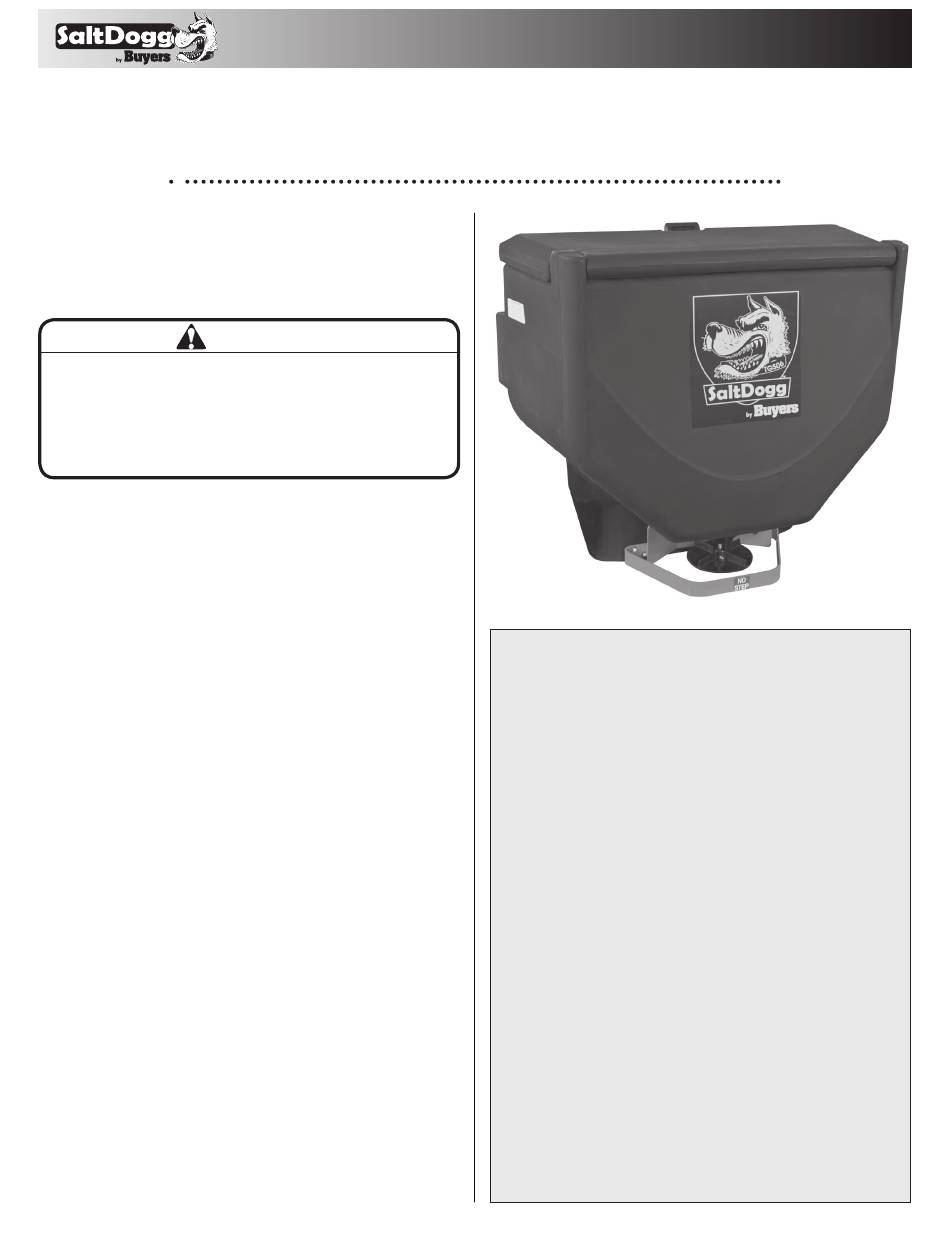

- Page 1 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com Installation Instructions TGS06 Salt Spreader Safety Precautions WARNING Observe the following Safety Precautions before, during and after operating this spreader. By following these pre- cautions and common sense, possible injury to persons and potential damage to this machine may be avoided.
- Page 2 1. Assemble and install Hitch Adjuster to • Assemble hardware (2) 1/2"-13 x 3.5" bolts 39, spreader assembly. Refer to Fig. 1. (4) 1/2" washers 40, and (2) 1/2"-12 jam nuts 41. • Insert and align hitch adjuster 28 between mounting •...
- Page 3 2. Assemble and install Hitch Receiver to Vehicle one of the three mounting holes, insuring opening in vertical tube is not obstructed by bumper. Option A (hitch assembly) suggested • Insert hitch pin 37 and secure with cotter pin 38. Refer to Fig.
- Page 4 3. Assemble Stake Pocket Mounts Refer to Fig. 3 • Insure “U” portion of retainer plate is facing up, or towards cover plate. • Assemble two stake pocket mounts as shown using (1) cover • Thread bolt into retainer nut plate using 2-2½ turns. This bolt plate 32, (1) retainer nut plate 34, (1) retainer plate 35, and (1) will be tightened once inserted into stake pocket 3/8"-16 x 2½"...
- Page 5 5. Install Spreader Assembly to Vehicle 6. Install Stake Pocket Straps Refer to Fig. 6 Refer to Fig. 5 • Insert (2) stake pocket straps 26 into holes located in • Lift and align the spreader so that the adjuster hitch aligns spreader.
- Page 6 • Connect the wire harness to the motor and vibrator located operation. inside the TGS06 spreader. • Inspect and clean flow gate and matting surfaces to remove any unwanted rock salt.
- Page 7 3009319 Pin, Pivot Lid 3009311 Mounting Bracket Hitch 3009324 Spring Pin Lid 3008076 Vibrator 80 lbs. 12 VDC 3009317 Spring Gate TGS06 3009312 Plate Cover 3010970 Spinner Poly TGS06 3008043 Plate Vibrator Kit SST 1420014 Pin Clevis, 1/4 x 2.5...
- Page 8 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com BOM Hardware Fig. 9 Bill of Materials ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 3009906 Assembly Stake Pocket Straps...
