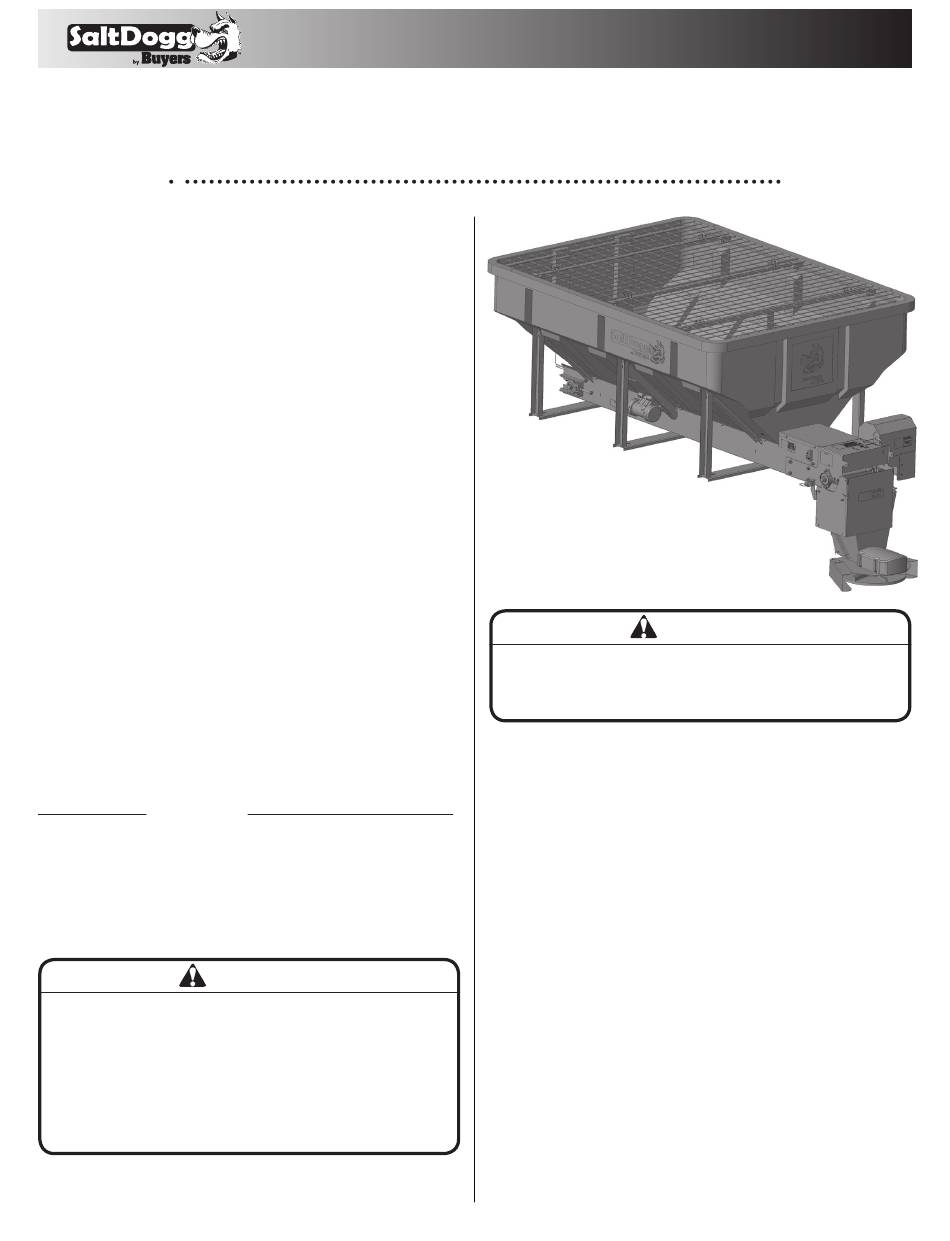

SHPE4000CH SaltDogg
Drive Poly Hopper Spreader
4.0 cubic yards
Table of Contents
General Information ....................................................................1
Safety Precautions ......................................................................1
Installation Instructions ........................................................... 2-4
Spreader Operation ................................................................ 3-4
Spreader Maintenance ................................................................4
Repair Parts & Drawings ......................................................... 5-8
Warranty Information ..................................................................8
General Information
Overall Length: 123.3 inches
Overall Width: 77 inches
Overall Height: 47.3 inches
Empty Weight: 812 lbs
Capacity Struck: 4.0 cu. yd.
Vehicle Requirements
Trucks with GVWR 15,000 to 26,000 lbs.
150 AMP or higher alternator is recommended.
Average Material Weights
Materials to use
Fine Salt-Dry
Coarse Salt-Dry
Sand Coarse-Dry
Note: To calculate the total spreader weight (including ice
control material), add the empty spreader weight plus the ice
control material and spreader accessories.
WARNING
Improper installation and operation could cause
personal injury, and/or property damage. Observe
the following Safety Precautions before, during and
after operating this spreader. By following these
precautions and common sense, possible injury to
persons and potential damage to this machine may
be avoided.
Installation Instructions
Electric
®
Weight (pounds per cubic yard)
2,250
1,431
2,565
Phone (440) 974-8888 • Fax (440) 974-0165
Toll-Free Fax 800-841-8003 • saltdogg.com
Do not overload vehicle beyond the vehicle's GVWR
or GAWR. Check vehicle's load rating certification
sticker for maximum vehicle capacity.
Safety Precautions
1. Read this entire Owners Manual before operating this
spreader.
2. Read all safety decals on the spreader before operating.
3. Check to make sure all safety guards are securely mounted
into place before operating this spreader.
4. Verify that all personnel are clear of the spreader spray area
before starting or operating this spreader.
5. Do not over-load your vehicle beyond payload limits. If there
are any questions, contact the vehicle manufacturer.
6. Do not adjust, clean, lubricate or unclog material jambs
without first turning off the spreader.
7. Do not climb on or in the spreader during operation. Do not
ride on the spreader while the vehicle is in motion.
8. Make sure the spreader is securely fastened to the vehicle in
accordance with this manual.
9. Do not operate a spreader that is in need of maintenance or
repairs.
10. Batteries normally produce explosive gases which can
cause personal injury. Always disconnect the battery before
removing or replacing electrical components.
11. Do not leave unused material in hopper. Material can freeze
or solidify, causing spreader to not work properly, and/ or
damage the unit. Empty and clean after each use.
1
9049 Tyler Blvd. • Mentor, Ohio 44060
CAUTION
—continued inside
Advertisement
Table of Contents
Related Manuals for SaltDogg SHPE4000CH
Summary of Contents for SaltDogg SHPE4000CH
- Page 1 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com Installation Instructions SHPE4000CH SaltDogg Electric ® Drive Poly Hopper Spreader 4.0 cubic yards Table of Contents General Information ..............1 Safety Precautions ..............1 Installation Instructions ............
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS WARNING 1. MOUNTING THE SPREADER ONTO THE VEHICLE: A. Remove the tailgate from the vehicle (if equipped) as well as Do not drill holes into fuel tanks, fuel lines, thru any other object which will interfere with the spreader. electrical wiring, etc that may be damaged by drilling. -
Page 3: Controller Operation
J. Connect the wire harness to the motors and vibrator. Make 3. CONTROLLER OPERATION sure wire colors on wire harness match colors on the motor. A. SHPE4000CH is equipped with a dual independent speed Thoroughly clean battery terminals. Make sure battery controller. To start spreader, press "POWER" switch. Switch will terminals have no tarnish or corrosion. -
Page 4: Spreader Maintenance
4. SPINNER/CHUTE ASSEMBLY OPERATION Spreader Maintenance 1. Use dielectric grease on all electrical connections before an electrical connection is made or after a connector is disconnected. 2. Grease the following: • Idler shaft bearings (2) • Flange bearings (2) 3. Check the Feed Chain tension periodically. To check the tension, measure in 21"-25"... -
Page 5: Chute Assembly
Chute Assembly ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 3030392 UPPER CHUTE WELDMENT 3030179 SPINNER 18" POLY CW 1410241 WIPER BELT, HOPPER 3030579 BAFFLE, CHUTE FWF025063007SS WASHER, FLAT 1/4 SAE SS 3025065 BUSHING STRAIN RELIEF FCS025020075SS SCREW, CAP 1/4-20 X 3/4 SST SCREW #12-14x.74 SS SELF DRIL HEX 3015873 WASHER HD... -
Page 6: Hopper Assembly
Hopper Assembly... - Page 7 QTY. DESCRIPTION ITEM NO. PART NO. QTY. DESCRIPTION 3038843 FCS025020100SS TROUGH WELDMENT SHPE4000CH SCREW, CAP HEX HD 1/4-20 X 1 SST 3001522 BOLT, CARRIAGE 1/2-13 X 1 SST 3007115 WASHER, FLAT 3/8 X 1.5 X.048 SST 3001523 FCS038016125SS NUT, HX FLNG-1/2-13 SST SCREW, HHC-3/8-16 X 1.25 SST...
-
Page 8: Bill Of Materials
9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com SHPE4000CH Assembly Bill of Materials ITEM NO. PART NO. QTY. DESCRIPTION ITEM NO. PART NO. QTY. DESCRIPTION 3038842 HOPPER ASM 4.0 CU YD ELECTRIC MTR TS31 STRAP, RUBBER TARP 31"...
