alatech Runaid 10 Quick Start Manual

Bluetooth 4.0 Running Watch
Runaid 10

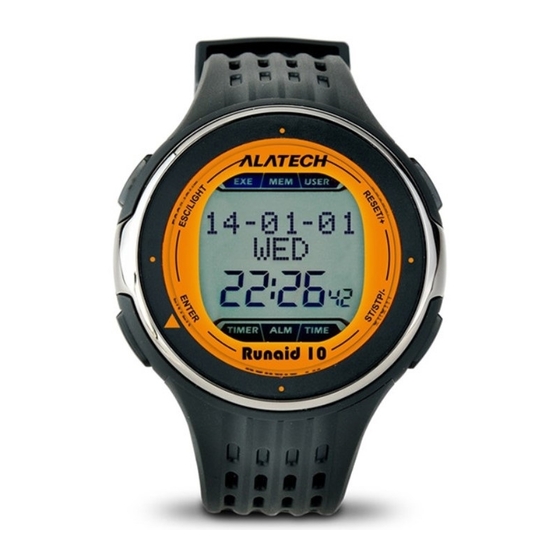

Getting to know your Runaid 10
This product employs low power consumption Bluetooth
wireless technology and supports a full range of Bluetooth 4.0 Heart Rate Strap and
Foot Pod. When working with the Bluetooth 4.0 mobile device, it displays heartbeat,
calorie consumption, cadence, speed per minute and per hour.
Items contained in the package:
• Runaid 10 Bluetooth Running Watch
(FB006)
• Quick Start Guide
• Warranty Card
Keys
(there are four operating keys)
ESC/LIGHT
• Press to exit.
• Press and hold for 2
seconds to turn on the back
light.
• Press to end exercise in
EXE mode.
ENTER/OK
• Press to enter and
accept.
• While in the main screen,
press this key to quickly start
exercise, or as a hotkey to
wirelessly connect with your
iPhone.
• Press to start exercise in EXE
mode.
Note: The back light may be too dim to be noticed
under direct sun light.
Main screen and icons
Year Month
Function bar
Week
Hour Minute
Note: Only icons of the running mode, or the mode you are switching to, is displayed.
Switch the function mode
Press C or D key to select a mode from the function bar in the screen and press the B
key to switch to the selected mode:
Exercise Mode
D
C
Date/Time Setup
Note: Press the A key repeatedly to return to the main screen from any function mode.
Set up your product before first use
Date/Time Setup
1. Press D key in the main screen to change the function bar to
to enter.
2. Press B key to select setup fields, press C/D key to set up.
3. Press A key twice to → return to the main screen after set up.
Please download the latest Quick User Guide and complete user manual at web site:
•
www.alatech.com.tw.
® Smart (Bluetooth 4.0)
Optional accessories:
• ALATECH Bluetooth 4.0 Foot Pod
(GS002BLE)
• ALATECH Bluetooth 4.0 Heart Rate Strap
(CS009, CS010 or CS011)
RESET/+
• Press to turn pages.
• Press to increase setup
values.
• Press to reset the second
or countdown TIMER.
ST.SP/-
• Press to turn pages.
• Press to decrease setup
values.
• Press to start/stop the
second or countdown
TIMER.
Alarm
Heartbeat
Day
AM
PM
Battery low
EXE
Exercise Mode
MEM
Memory Mode
USER
User Setting
TIMER
Timer Function
ALM
Daily Alarm Setup
TIME
Date/Time Setup
Second
C C
D D
User Setting
Memory Mode
C C
D D
Daily Alarm
Timer Function
TIME
→ Press B key
Quick Start Guide
User Setting
1. Press C key in the main screen to change the function bar to
key to enter.
2. Press C/D key to change values or options, press B key to accept and move to the
next setup field.
3. Press A key three times to → return to the main screen after set up.
Note: Please enter correct personal data including gender, height, and weight to
obtain an accurate analysis on exercise results. Or you may synchronize
the user settings in the ALA COACH+ App to your Runaid 10 watch.
Please visit our web site for further information and download the
complete operation manual.
Pair with optional accessories
You may purchase the optional Bluetooth 4.0 Foot Pod to work with your product for
number of steps (STEP), hourly speed (KPH), PACE (min/km or min/mile), and step
frequency (SPM) tracking. An optional Bluetooth 4.0 Heart Rate Strap is also available
for heartbeat and calorie consumption tracking during exercise. Please pair these
optional devices with your product before use them for the first time.
Recommended Foot Pod model:
GS002BLE
1. Press C key in the main screen to change the function bar to
to enter.
2. Press C/D key to point to PAIRING SET→ Press B key to enter.
3. Press C/D key to point to PAIRING HRM (for Heart Rate Strap) or PAIRING STRIDE
(for Foot Pod)→ Press B key to start pairing with your product.
4. After the device is paired with your product successfully → An OK Message will
appear on your watch → Press the A key three times to back to the main screen.
In case the pairing fails → Message NO DEV HRM or NO DEV STRIDE appears on
your watch → Press the A key to pair again from step 3.
Pairing with a mobile device
This product is compatible with Bluetooth 4.0 receiving devices including iOS 5.0 or
later devices and Android 4.3 or later devices. Make sure your device and system
version are compliant with the Bluetooth version.
Go to to download and install the ALA COACH+ App(required iOS 5.0 or
above).
Follow the steps below to set up your Runaid 10 watch before any pairing
operation:
1. Press C key in the main screen to change the function bar to
key to enter.
2. Press C/D key to point to HOT KEY SET → Press B key to enter.
3. Press C/D key to point to CONNECT PHONE→ Press A key three times to return to
the main screen.
Follow the steps below to set up your Apple mobile device before any pairing
operation:
Enable the Bluetooth
Initiate the pairing operation:
1. Open the ALA COACH+ App > Setup > Sensor > Sports watch > Setup > Add new
sensor. → Press B key in the main screen to start pairing.
The device turns on
after being paired
successfully.
2. Validate the sensor scanned by the App, tap this icon to pair with it. Device is
paired successfully →The App prompts an OK message → Press A key to
exit to the main screen.
C
D
Tap this icon to start pairing.
Note: Please pair optional sensors
and mobile devices with your
product respectively. Please
keep them within 10
centimeters from your Runaid
10 watch and away from any
Bluetooth sensor devices for at
least 20 meters.
For further information on
compatible mobile devices,
please visit our web site.
Please recycle your waste batteries.
•
• Product information in this document is for reference only.
Recommended Heart Rate Strap model:
CS009, CS010, or CS011
USER
USER
function
®
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS.
® is a registered trademark of Bluetooth SIG Inc.
•Bluetooth
•iPhone is a registered trademark of Apple Inc.
•App store is a service mark of Apple Inc.
2PF297210100041
→ Press B
USER
→ Press B key
→ Press B
.
You may rename it.
EN
