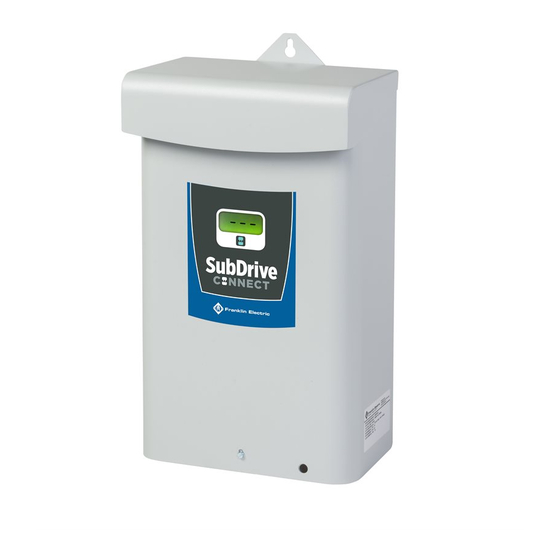

SubDrive50 Connect
Fan Replacement Install Guide
Kit No. 226545903

Advertisement

loading
Need help?

Need help?

Do you have a question about the SubDrive50 Connect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Franklin Electric SubDrive50 Connect

Summary of Contents for Franklin Electric SubDrive50 Connect

  • Page 1 SubDrive50 Connect Fan Replacement Install Guide Kit No. 226545903...
  • Page 2 - Verify that the fan runs for 3–5 seconds during the power-up initialization. * The bracket kit comes preassembled. If the fan does not perform as stated above, note the error and consult your local Franklin Electric representative or call the Franklin Electric Technical Service Hotline at 1-800-348-2420.

  • Page 3: Tools And Hardware Required

    SUBDRIVE50 CONNECT FAN REPLACEMENT INSTALL GUIDE WARNING REMOVE ALL INCOMING ELECTRICAL POWER TO THE DRIVE. THIS IS A NON-POWERED ELECTRIC PROCEDURE. PURPOSE The SubDrive50 Fan Replacement Kit provides repairability to drives in which the existing fan has been damaged, failed, or is otherwise inoperable.
  • Page 4 SUBDRIVE50 CONNECT FAN REPLACEMENT INSTALL GUIDE STEP 3: Disconnect the power connection from the main board. STEP 4: Remove the fan from the enclosure. STEP 5: Locate the airflow indication arrow on the side of the fan. Position the fan so that the air is directed into the enclosure.
  • Page 5 SUBDRIVE50 CONNECT FAN REPLACEMENT INSTALL GUIDE STEP 6: Install the replacement fan into the enclosure. STEP 7: While holding the fan in place with one hand, secure it to the enclosure using the four screws. Torque the screws to 9 in-lbs.
  • Page 6 STEP 9: Fan installation is complete. Verify that fan turns on and is working properly. If you experience any difficulty in performing these steps, consult your local Franklin Electric representative or call the Franklin Electric Technical Service Hotline at 1-800-348-2420.
  • Page 8 TOLL-FREE HELP FROM A FRIEND Franklin Electric Technical Service Hotline 800-348-2420 9255 Coverdale Rd., Fort Wayne, Indiana 46809 226546103 Tel: 260-824-2900 • Fax: 260-824-2909 Rev. 0 franklinwater.com 06-16...

This manual is also suitable for:

226545903
