ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch
having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being
sure that the connector of the feeding cable is correctly in-
serted in the socket placed on the side of the fan.

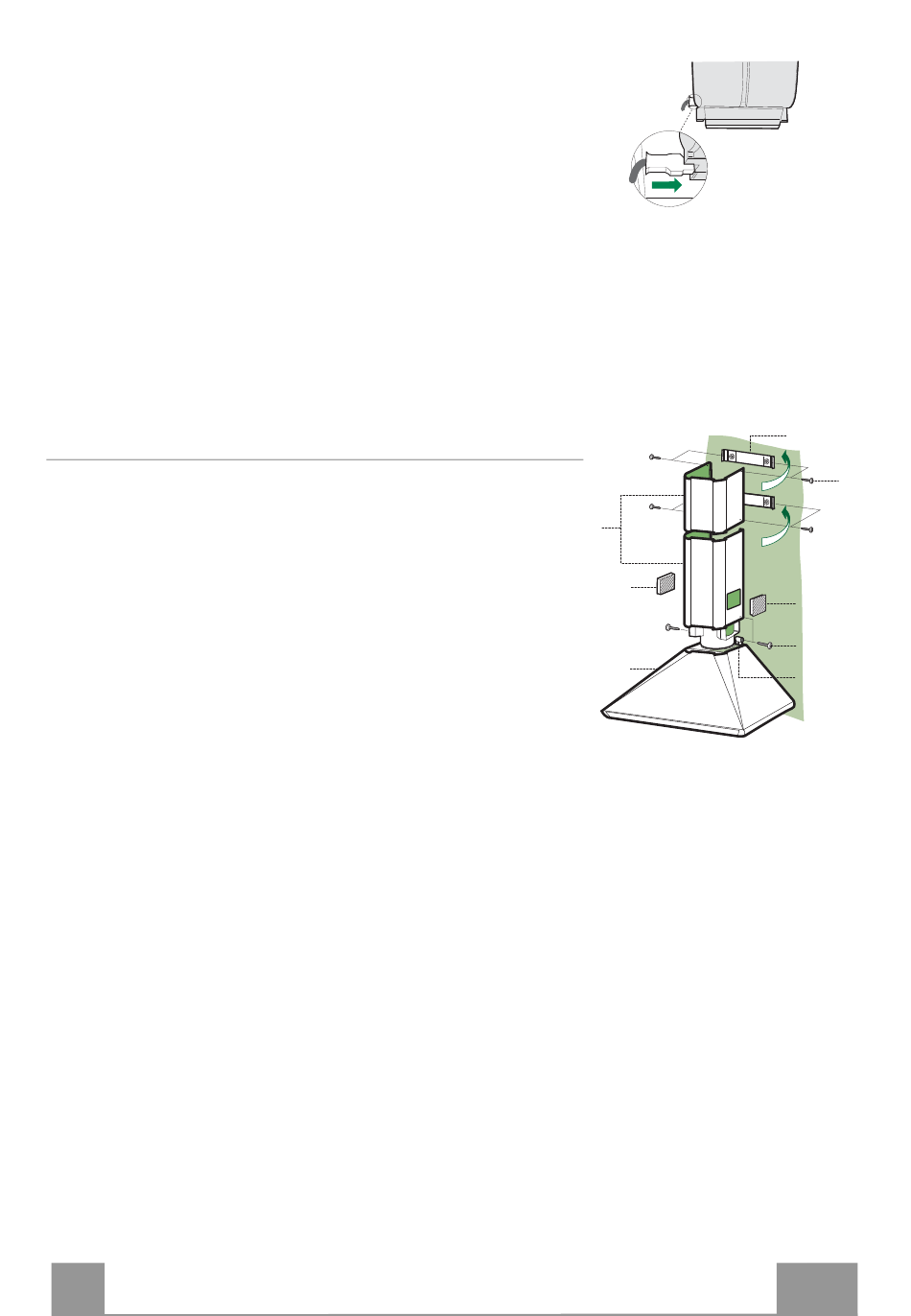

Upper chimney section
• Slightly widen the two sides of the upper chimney and hook
them behind the brackets 7.2.1, making sure that they are
properly housed.
• Secure the sides to the brackets using the 4 screws 12e (2,9 x
9,5) supplied.
Lower exhaust flue
• Insert the lower flue fixing bush 17 in the top of the hood
body and rotate it 90° clockwise as far as it will go.
• Slightly widen the two sides of the chimney and hook them
between the upper chimney section and the wall, making
sure that they are properly housed.
• Secure the sides of the bottom section to the bushes provided
using the 2 screws 12c (2,9 x 9,5) supplied.
• On the recirculation version, fit the directional grids 8a – 8b
in their housings making sure that the directional symbols
are towards the top and front of the hood. Also make sure
that they are correctly inserted in the outlet connection piece
15.
EN
Chimney assembly
7.2.1
2.1
2
2.2
8b
12e
1
12e
8a
17
1
19
