Summary of Contents for Pilz PNOZ p1vp

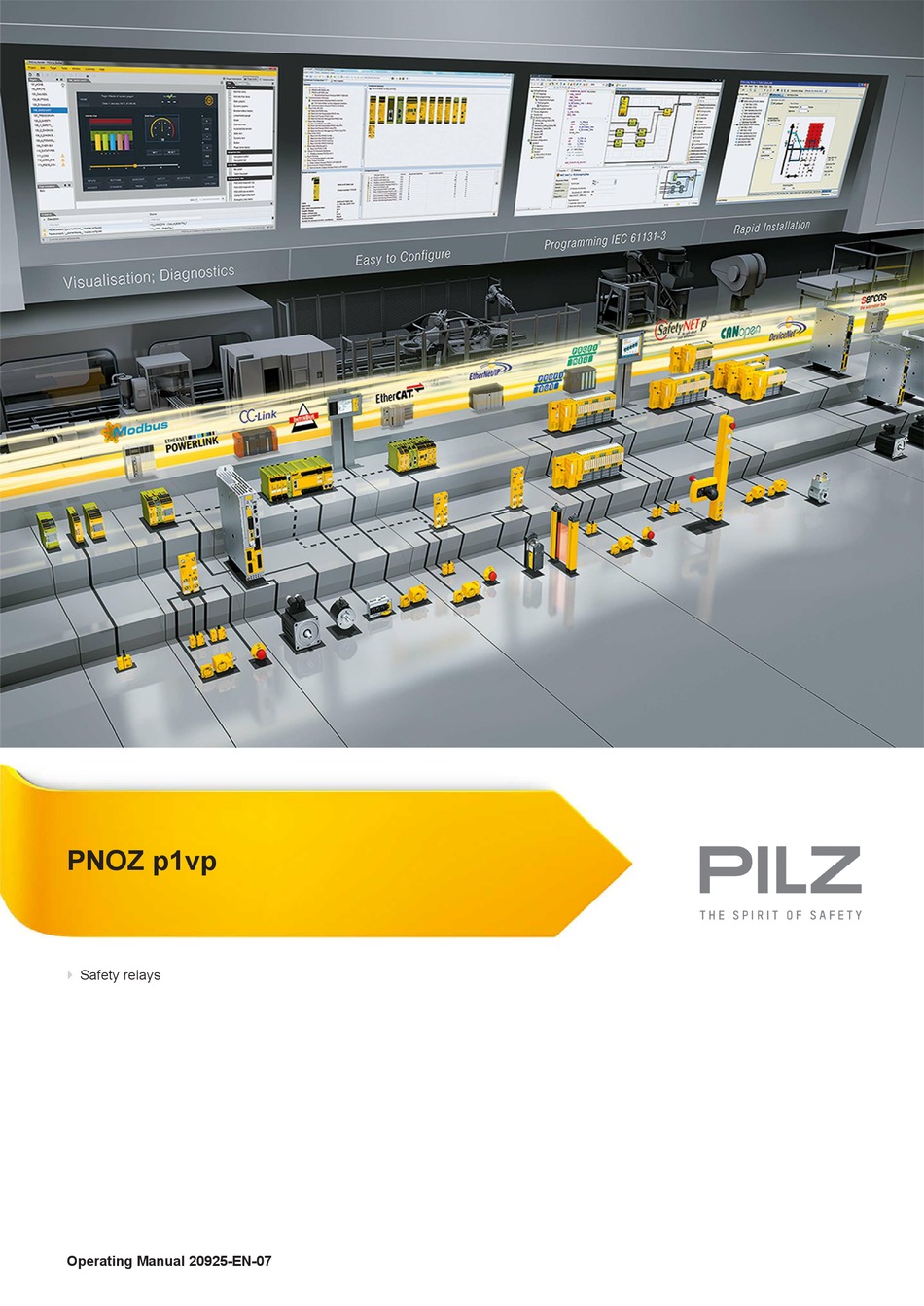

- Page 1 PNOZ p1vp Safety relays Operating Manual 20925-EN-07...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
-
Page 3: Table Of Contents
Block diagram/terminal configuration Function Description Operating modes Timing diagram Installation Wiring Preparing for operation Operation Status indicators Faults – Interference Dimensions in mm Technical details Safety characteristic data Remove plug-in terminals Order reference EC declaration of conformity Operating Manual PNOZ p1vp 20925-EN-07... -
Page 4: Introduction
PNOZ p1vp Introduction Validity of documentation This documentation is valid for the product PNOZ p1vp. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
Safety Intended use The safety relay PNOZ p1vp is a base unit of the safety system PNOZpower. It provides a safety-related interruption of a safety circuit. The safety relay meets the requirements of EN 60947-5-1, EN 60204-1 and VDE 0113-1... -
Page 6: Warranty And Liability
In safety-related applications, please comply with the mission time T in the safety-re- lated characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PNOZ p1vp 20925-EN-07... -
Page 7: Unit Features
The circuit is redundant with built-in self-monitoring. The safety function remains effective in the case of a component failure. The correct opening and closing of the safety function relays is tested automatically in each on-off cycle. Operating Manual PNOZ p1vp 20925-EN-07... -
Page 8: Block Diagram/Terminal Configuration
A high signal is present at semi-conductor output Y35 if the supply voltage is present and the internal fuse has not blown. If there is a fault on the PNOZ p1vp or on an ex- pansion module, there is low signal at Y35. -
Page 9: Operating Modes
Single-channel operation: No redundancy in the input circuit, earth faults in the start and input circuit are detected. Dual-channel operation with detection of shorts across contacts: Redundant input cir- cuit, PNOZ p1vp detects – earth faults in the start and input circuit, –... -
Page 10: Installation
Fit the unit to a horizontal DIN rail. If other mounting positions are used, the switching capability values stated in the technical details cannot be maintained. There are 2 sockets on the rear of the PNOZ p1vp. The base unit/control module and the expansion modules are connected using the jumpers supplied. -
Page 11: Wiring
Use the power supply PNOZ pps1p, or an external power supply that complies with the regulations for extra low voltages with safe electrical separation (SELV, PELV) in ac- cordance with VDE 0100, Part 410. Ensure the wiring and EMC requirements of IEC 60204-1 are met. Operating Manual PNOZ p1vp 20925-EN-07... -
Page 12: Preparing For Operation
Important for detection of shorts across contacts: As this function for detecting shorts across contacts is not failsafe, it is tested by Pilz during the final control check. If there is a danger of exceeding the cable length, we recommend the following test after the installation of the device: 1. - Page 13 E-STOP with detection of shorts across contacts Safety gate without detection of shorts across contacts Safety gate with detection of shorts across contacts Light beam device with detection of shorts across contacts via ESPE Operating Manual PNOZ p1vp 20925-EN-07...
- Page 14 Feedback loop with feedback loop monitoring Link or contacts from external con- Base unit tactors K5 K6 Expansion module 13 (23 ...) 14 (24 ...) Semiconductor output Y31, Y30: External supply voltage Operating Manual PNOZ p1vp 20925-EN-07...
-
Page 15: Operation
1 minute, the unit is ready for operation again. LED "PWR" does not light: Short circuit or no supply voltage. Operating Manual PNOZ p1vp 20925-EN-07... -
Page 16: Dimensions In Mm
PNOZ p1vp Error at an PNOZ p1vp expansion module: Semiconductor output Y35 has a Low sig- nal. Dimensions in mm Technical details General 773950 773951 CCC, CE, EAC (Eurasian), TÜV, CCC, CE, EAC (Eurasian), TÜV, Approvals cULus Listed cULus Listed... - Page 17 Storage temperature Temperature range -40 - 85 °C -40 - 85 °C Climatic suitability Humidity 93 % r. h. at 40 °C 93 % r. h. at 40 °C Condensation during operation Not permitted Not permitted Operating Manual PNOZ p1vp 20925-EN-07...
- Page 18 Torque setting with screw terminals 0,6 Nm 0,6 Nm Dimensions Height 94 mm 94 mm Width 45 mm 45 mm Depth 135 mm 135 mm Weight 355 g 355 g Where standards are undated, the 2014-07 latest editions shall apply. Operating Manual PNOZ p1vp 20925-EN-07...
-
Page 19: Safety Characteristic Data
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PNOZ p1vp 20925-EN-07... -
Page 20: Remove Plug-In Terminals
Product type Features Connection type Order No. PNOZ p1vp 24 VDC; Screw terminals 773 950 Delay: up to 30 s selectable PNOZ p1vp 24 VDC; Screw terminals 773 951 Delay: up to 300 s selectable Operating Manual PNOZ p1vp 20925-EN-07... -
Page 21: Ec Declaration Of Conformity
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/support/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PNOZ p1vp... - Page 22 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
