SETTING THE LIGHTING SYSTEM

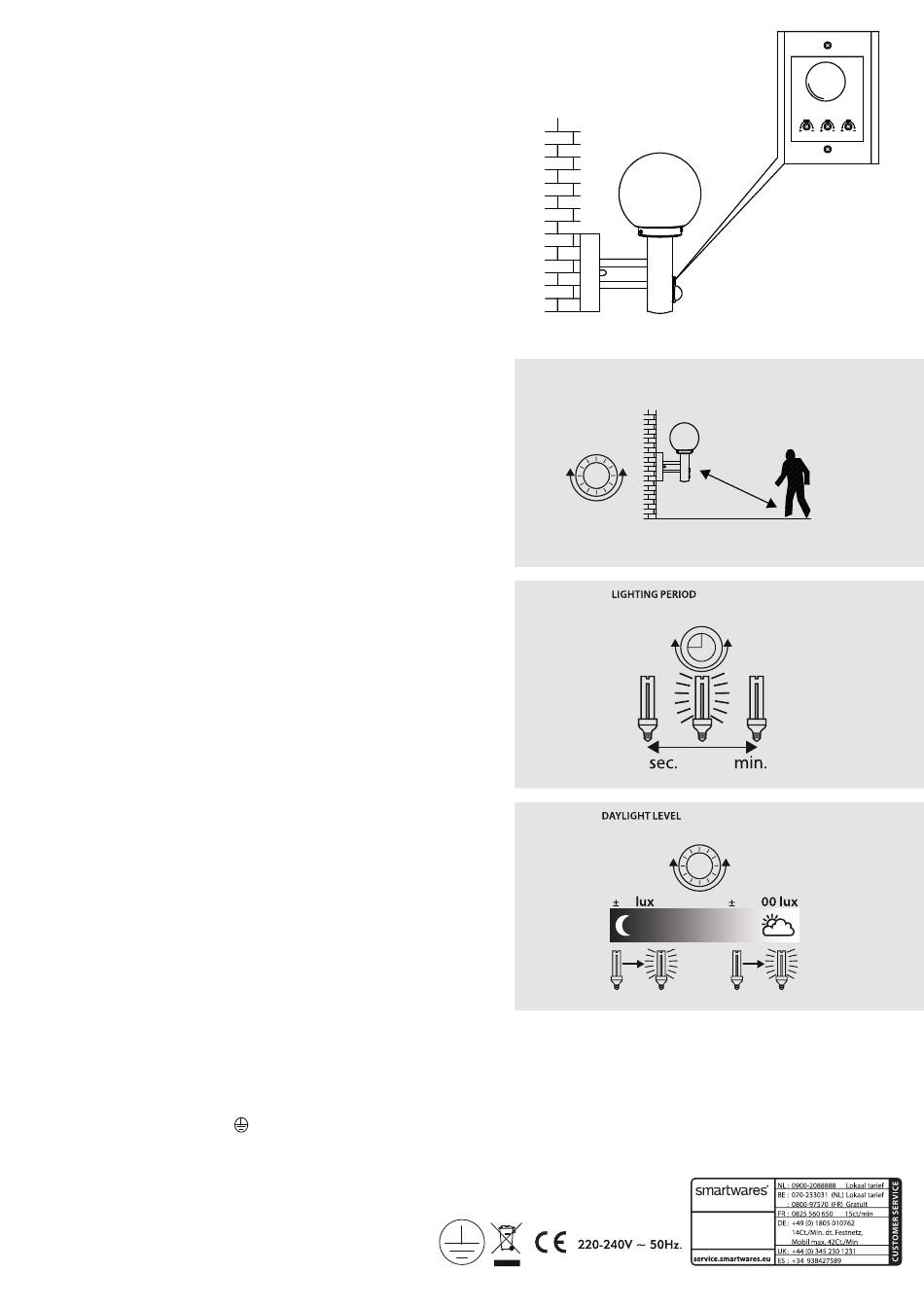

(1) SENSITIVITY
The SENS adjustment determines at what distance the lighting
system will start operating.
Turn the SENS control knob clockwise to increase the distance
up to 10m.
Turn the SENS control knob anti-clockwise to decrease the distance
down to 4m.
(2) LIGHT ADJUSTMENT
The LUX adjustment determines at what light level the
lighting system will start operating .
Turn the light control knob clockwise to allow the light to
operate during the day.
Turn the light control knob anit-clockwise to allow the light
to operate at night only.
(3) TIME ADJUSTMENT
The TIME adjustment controls how long the light will stay
on after the motion has been detected.
Turn the TIME control knob clockwise to increase (up to
about 4 minutes) how long the light stays on or anti-
clockwise to decrease (down to about 10 seconds) the
time delay.

Specification

Power: AC 220 - 240V / 50Hz
Detection angle: 90
Detection distance: 4m - 9m
Time adjustment: 10sec - 4min
LUX adjustment: 2 - 200 LUX
Operating temperature: -20c - +40c
Protection class: Class I
IP rating: IP44
Bulb type: E27 MAX 60w
