BULB INSTALLATION

(1) Install the bulb by using a screwdriver to loosen the 3 screws,
to lift off the glass to allow access to the holder.
(2) Insert the bulb into the holder and ensure a good fit
(3) Once fitted fit the glass and tighten the securing screws
Note: Be extra careful while handling the glass bowl.

INSTALLATION

Select a location for the unit based on
the coverage angles shown in FIGURE 1.
WALL MOUNTING
(1) Remove the backplate from the lamp by removing the 2
dome nuts on the front.(FIGURE 2a)
(2)
Using the backplate as a guide mark and drill holes
ensuring the UP arrow remains UP. (FIGURE 2b)
(3)
Drill two holes in the wall suitable for the wall fixings supplied.
(4) Use a screwdriver to break a small hole on the cable gland and
route the power cord through the gland and gland hole
(5) Follow WIRING INSTRUCTION guide then fix the lamp to the
back plate ensuring the light is secure.

WIRING INSTRUCTION

(1) Switch off the power source or wall switch.
Note: The power cord must meet H05RN-F, 3G, 1.0mm ²
requirement.
(2) Connect the BROWN wire to terminal
block " L" mark. Connect the BLUE wire to
terminal block " N" mark. Connect the GREEN / YELLOW
wire to terminal block "
Install a wall switch adjacent to the power source
for isolation of the mains power when required.
". (FIGURE 3)

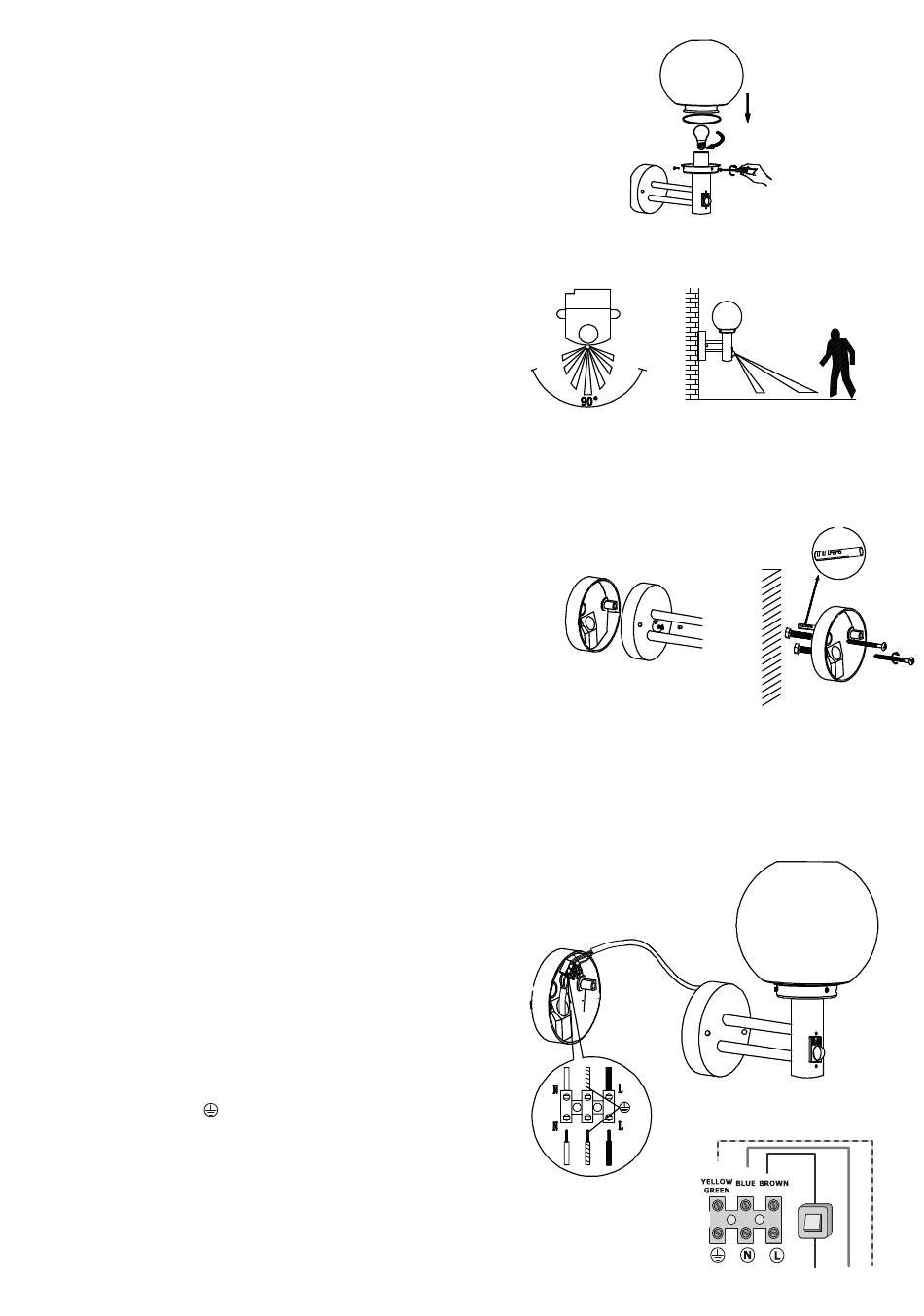

4m - 9m
FIGURE 1
FIGURE 2a
FIGURE 3
FIGURE 2b
