Lippert Electric Slideout System
Extending and retracting the slideout room is powered by the
Lippert Through Frame Electric Slideout System. It is a rack
and pinion guide system with a motor driven ball screw actuator.
The actuator is equipped with an automatic clutching system.
The Through Frame Electric Slideout System is a negative
ground system.
Manual operation
The Lippert Through Frame Electric Slideout System comes
with a manual override. Locate the 1" round Slideout Override
Access Hole in the skirt metal on the opposite side (of the RV)
from the room that you are trying to move.
• Disconnect your RV battery.
• Insert the crank handle extension.
• Turn clockwise to retract the slideout room.
• Turn counter-clockwise to extend the slideout room.
If using the
manual override
Use EXTREME CAUTION to extend and/or retract
the room. It is possible to extend or retract the slideout
beyond the maximum OPEN or CLOSED positions.
This can result in damage to the slide components,
slide room structure, or trim components.
IMPORTANT: The actuator is manual ready.
• DO NOT disengage the motor.
• Just hook up and crank.
Maintenance
Although the system is designed to be almost maintenance free,
actuate the room once or twice a month to keep the seals and
internal moving parts lubricated. Check for any visible signs or
external damage before and after movement of the RV.
• For the best performance, the slideout system requires
the auxiliary battery be fully charged.
• Check for corrosion, and loose or damaged terminals/
connections at the battery, the control switch, and the
electronic actuator motor.
• Check that the motor leads under the RV chassis are in
good condition. These connections are subject to damage
from road debris.
feature :
Slideout Systems
CAUTION
Always disconnect battery
from the system prior to
manually operating system.
Failure to disconnect battery
can cause electricity to back
feed through the motor and
cause serious damage to
the system as well as void
the warranty.
NOTICE
Use EXTREME CAUTION
if using the manual override
feature to extend and/or
retract the room.
It is possible to extend or
retract the slideout beyond
the maximum open or
closed positions. This can
result in damage to the
slide components, slide
room structure or trim
components.

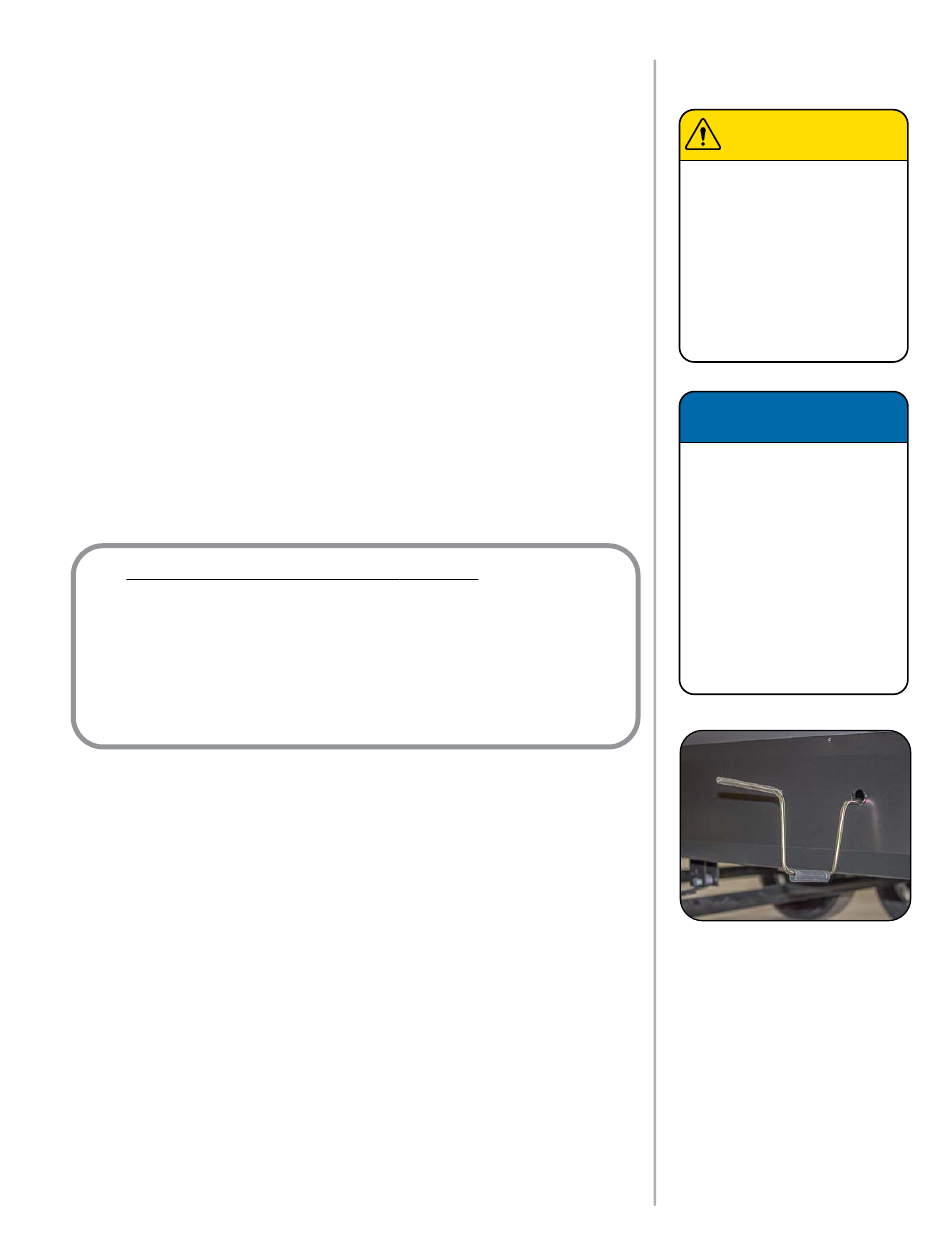

Slideout Override
Access Hole &
Crank Handle Extension
