Summary of Contents for Grand Design IMAGINE XLS 2023

  • Page 3: Table Of Contents

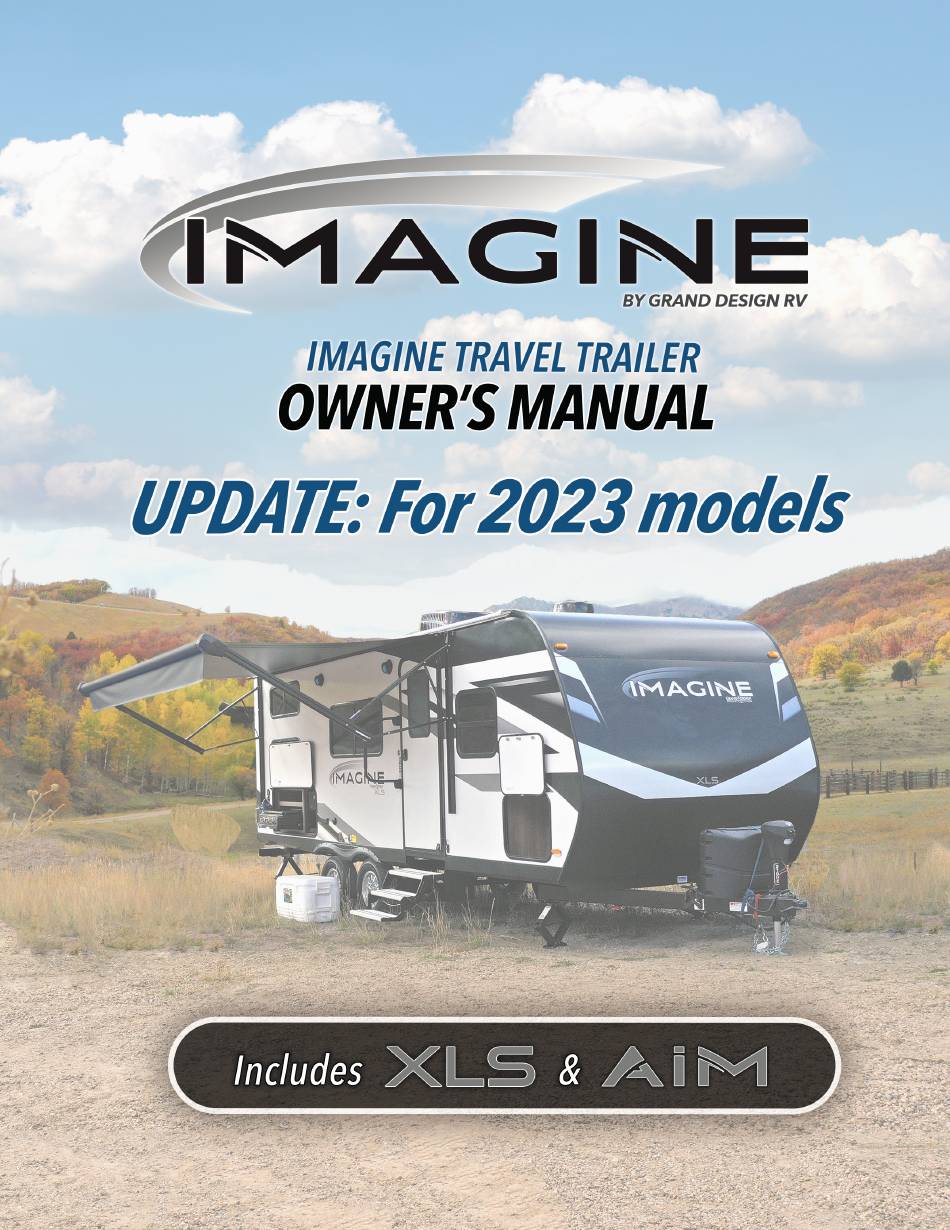

    Travel Trailer Owner's Manual UPDATE: 2023 Models UPDATE: 2023 Models Table of Contents Component Supplier Contact Information . . . . . . . . . . . . . . . . . . . . . . . 1 Component Manufacturer Warranty Information .

  • Page 4: Component Supplier Contact Information

    Service & Warranty Component Supplier Contact Information All component suppliers listed are correct at the time of printing . Grand Design RV may change components at their discretion . Please contact GDRV Customer Support with any questions . Component Brand...

  • Page 5: Component Manufacturer Warranty Information

    Service & Warranty Component Manufacturer Warranty Information Each manufacturer provides their own warranty for the components on your Imagine TT . This warranty information is current at the time printing, but is subject to change at any time per the manufacturer . Details can be found on the company websites listed or by contacting them directly .
  • Page 6 This page is intentionally blank .

  • Page 7: Amp Pwm Solar Controller

    Electrical Systems 30 Amp PWM Solar Controller (If So Equipped) Please read and understand the manufacturer’s manuals for the 30 Amp PWM Solar Controller and the Solar Panel BEFORE using the Solar Power Charging System . • Follow all safety alerts, warnings, and instructions when using the Solar Power Charging System .

  • Page 8: Inverter - 2000 Watts

    Electrical Systems Inverter - 2000 Watts (If So Equipped) Your Imagine Travel Trailer, if so equipped, has a 2000 watt inverter mounted next to the Universal Docking Station, See photo, left . • Please download and read the entire manufacturer’s owner’s manual for detailed operating instructions and safety warnings BEFORE using the inverter .
  • Page 9 • DC Voltage • Grid Input • Inverter Out • Fault Condition • DC Voltage • Grid Input • Inverter Out • Fault Condition Unit Setup - Sets inverter parameters For battery recommendations and any further questions, please contact your dealer or Grand Design RV Customer Service.

  • Page 10: Furrion Tankless Water Heater

    Furrion Tankless Water Heater Plumbing Systems Please read all safety and operating information provided both here and in the manufacturer’s manual before using the water heater. Based on the hot water demand, the tankless water heater will heat incoming cold water to a desired output temperature by monitoring key sensors to regulate the thermal energy released over a large heat exchanger .
  • Page 11 Plumbing Systems The temperature can be selected to operate in two different methods: WARNING Method 1: Point of use mixing: Set the controller temperature to a desired If the information in the manufacturer instructions output temperature, typically elevated above comfortable bathing is not followed exactly, temperatures .

  • Page 12: Winterizing The Furrion Tankless Water Heater & Plumbing System

    Plumbing Systems Furrion Tankless Water Heater, Continued Winterizing the Furrion Tankless Water Heater WARNING & Plumbing System: Both automotive antifreeze The Water Heater Bypass Vales (located on the back (ethylene glycol) and of the water heater) MUST be kept in the "Normal Position" windshield washer anti- freeze (methanol) are NOT the "Bypass Position."...
  • Page 13 Plumbing Systems 7 . PLACE the end of the Suction Line into a container It is important of RV antifreeze . to read all instructions & 8 . TURN the Winterize Valve to the OPEN position . understand each step before you begin the ◦...

  • Page 14: Antifreeze Function

    Furrion Tankless Water Heater, Continued Plumbing Systems Water Control Valve The Water Heater is equipped with a water flow control valve, set from the factory at MAX flow . The valve will reduce the water flow and capacity through the water heater to improve water heating performance .
  • Page 15 Storage and Transit Plumbing Systems Anytime the RV is not intended to be used, it is considered to be in storage or transit . To prepare the water heater, follow the below steps: 1 . Turn off gas supply . 2 .
  • Page 16 Plumbing Systems Furrion Tankless Water Heater, Continued 7 . Check that all wire connections are firmly in place and there are no signs of chafing or cracks on the insulation . Verify that the spark ignition cable between the Control Board and the igniter is securely in place and not shorted to any metal component .
  • Page 17 Plumbing Systems Pressure Safety Valve Maintenance 1 . The unit is equipped with a water pressure safety valve . The pressure safety valve needs to operate once each year to ensure this safety device is effective . 2 . The pressure relief valve is a safety component and must not be removed for any reason other than replacement .

  • Page 18: Water Heater, 6 - Gallon

    Water Heater, 6 - Gallon Plumbing Systems (If So Equipped) It is important to know which type of Water Heater is installed WARNING in your RV. Read all safety and operating information provided both here and in the manufacturer’s manual before using the If you smell propane gas, water heater.
  • Page 19 Plumbing Systems If the water heater is not properly derated, poor efficiency in WARNING heating the water may occur due to incomplete combustion . You may also notice pilot outage caused by burner lift-off or Water temperatures over sooting from a yellow burner, indicating the possibility of 125°F (49°C) can cause carbon monoxide .

  • Page 20: Winterizing The 6-Gallon Water Heater & Plumbing System

    Water Heater- 6 gallon (If So Equipped), Continued Plumbing Systems Water heater bypass valves The water heater bypass uses two (2) valves, located on the back side of the water heater . Also see page 22, Water Heater Bypass Valves. •...
  • Page 21 Plumbing Systems BEFORE Winterizing, the Fresh Water plumbing systems & Black Water, Grey Water Tanks MUST all be emptied. • See page 19 & page 106 in your Owners Manual. 1 . LEVEL the RV . WARNING 2 . Turn OFF the Water Heater 12-volt and 120-volt interior control switches .

  • Page 22: Draining The Fresh Water System

    Plumbing Systems Draining the Fresh Water System The low-point drain valves release water in the supply lines by opening the valves and all faucets . The water heater has its own drain plug . To drain the permanent fresh water holding tank and supply lines: 1 .

  • Page 23: Sanitizing The Fresh Water System

    Plumbing Systems Sanitizing the Fresh Water System Use the following procedures to sanitize your Fresh Water System (or Potable Water System) when it is new, becomes contaminated, or has not been used for a period of time . Before you begin: •...

  • Page 24: Universal Docking Station

    Plumbing Systems Universal Docking Station Standard & XLS Solar Charge Controller Battery Monitor Fresh Water Fresh Water Battery Gravity Fill Inlet Gravity Fill Inlet Disconnect City Water Inlet City Water Control Handle Spray Port Battery Disconnect Solar Charge Controller City Water Inlet City Water Control Handle...

  • Page 25: Water Heater Bypass Valves

    Plumbing Systems Water Heater Bypass Valves * The water heater bypass valves are found * The water heater bypass valves are found on the back side of the water heater. on the back side of the water heater. Cold In Cold In Hot Out Hot Out...

  • Page 26: Winterization Valve

    Plumbing Systems Winterization Valve Access the Water Pump (Location Varies by Floorplan) - See page 9, #5. Normal / Sanitizing: 1 . TURN the Winterization Valve to the CLOSED position . 2 . POUR the Chlorine / Water mixture into the Fresh Water Gravity Fill Inlet .
  • Page 28 Corporate Office 11333 County Road 2 Middlebury, IN 46540 (574) 825-8000 www.granddesignrv.com Copyright © 2022 Grand Design RV, All rights reserved. Part # 961645 Printed in the USA Rev. 10/2022...
