RR301
Quick Start Guide
Welcome to your new Remote Reader. The RR301 is an advanced meter reading
solu-on that provides a high visibility remote display of one or two u-lity
meters. GeZng the Remote Reader set up and installed is quick and easy. A
version that includes built-in wireless AMR support is available (RR301-TR).
Packaging Contents
A
Model: RR301-TR
NTEP: 20-012
E A 1 2 3 4 5 0
S / N :
C
D
E
Important
Model: RR301-TR
NTEP: 20-012
E A 1 2 3 4 5 0
S / N :
Addi$onal Resources
B
F

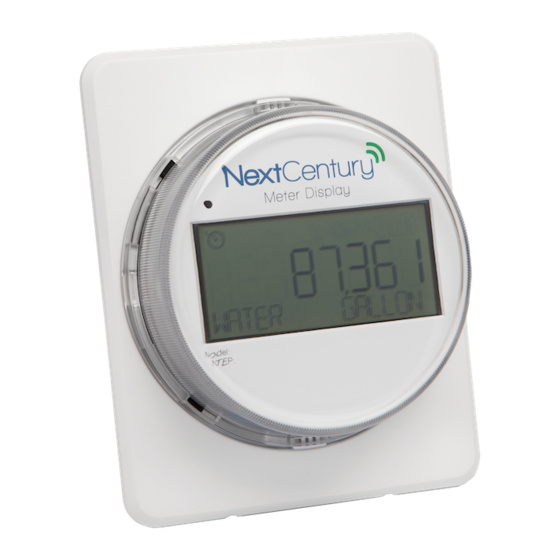

Meter Display
Model: RR301
NTEP: 20-012
E 0 1 2 3 4 5 0
S / N :
For full installa-on guide, spec sheets, and addi-onal
resources, please visit:
products.nextcenturymeters.com/rr301
Contact Informa,on
Phone: 844.538.8203
Email: support@nextcenturymeters.com
A) RR301 Remote Reader
B) Moun-ng Plate
C) Sheetrock Anchors
D) Wall Mount Screws #6-20
E) Box Mount Screws #6-32
F) Wire Security Assembly
G) Security Seal S-cker Tabs
G
During installa-on, you will
disconnect the Remote Reader from
the Moun-ng Plate. It is
necessary to open the Remote
Reader. The Remote Reader is a
sealed, water--ght design, and
should only be opened every 10
years (approximately) to replace the
internal baPery.
