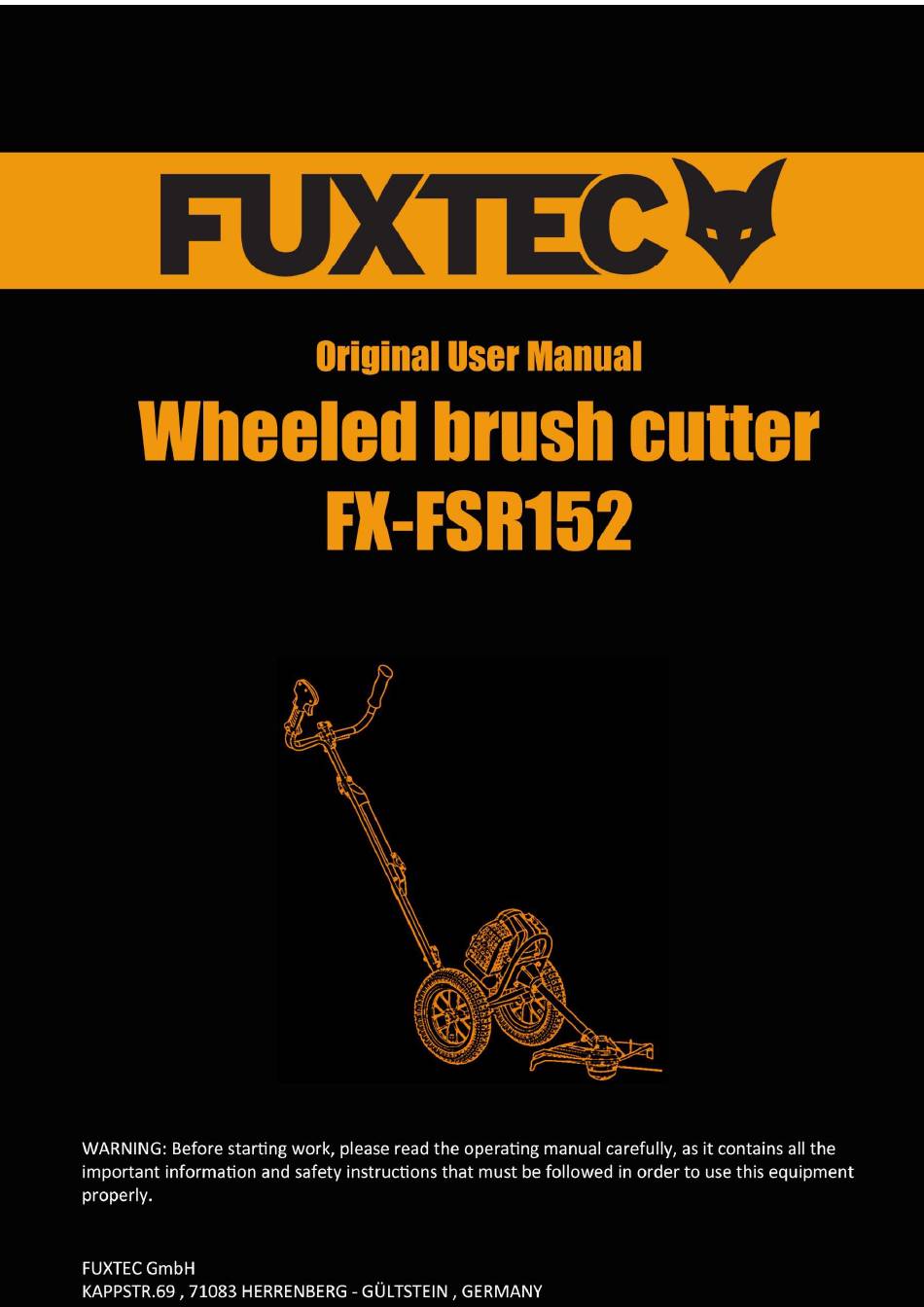

FUXTEC FX-FSR152 Original User Manual

FUXTEC FX-FSR152 Original User Manual

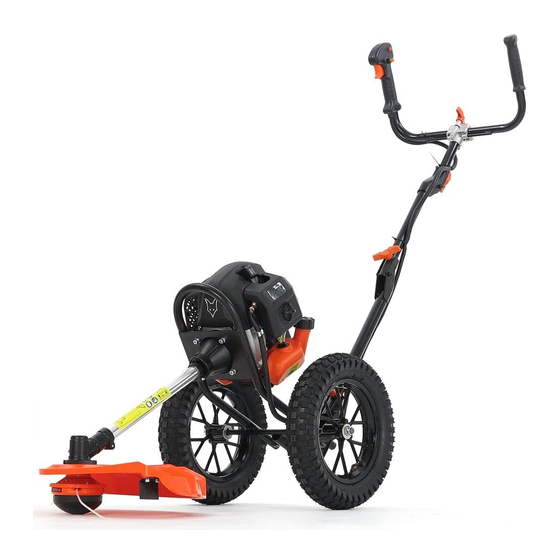

Wheeled brush cutter
Hide thumbs Also See for FX-FSR152:

Advertisement

Original User Manual FUXTEC FX-FSR152_de_fr_rev05
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-FSR152 and is the answer not in the manual?

Questions and answers

Сергей
May 20, 2025

Застряла леска в катушке. Ни туда, ни сюда. Как вытащить?

1 comments:
Mr. Anderson
May 24, 2025

To remove a stuck line from the FUXTEC FX-FSR152 reel:

1. Switch off the engine.
2. Place the trimmer on the ground with the drive axle and coil exposed.
3. Remove the nylon head.
4. Pull the stuck thread out with force.
5. Refill the thread head with a new thread if needed.

This answer is automatically generated

Summary of Contents for FUXTEC FX-FSR152

  • Page 1 Original User Manual FUXTEC FX-FSR152_de_fr_rev05...
  • Page 2 ORIGINAL USER MANUAL Wheeled petrol brush cutter FX-FSR152 Your new device has been developed and designed to meet FUXTEC's high standards, such as easy operation and user safety. Properly treated, this device will serve you well for years to come.
  • Page 3: Table Of Contents

    Original User Manual FUXTEC FX-FSR152_de_fr_rev05 TABLE OF CONTENTS 1. TECHNICAL DATA .................... 5 2. SYMBOLS AND SAFETY INSTRUCTIONS ON THE DEVICE ......6 3. INTENDED USE AND GENERAL SAFETY INSTRUCTIONS ......9 4. NOTES FOR ACCESSORIES ................11 5. SYMBOLS ON THE DEVICE ................12 6.
  • Page 4 Original User Manual FUXTEC FX-FSR152_rev05 20. EC DECLARATION OF CONFORMITY ............28 EMISSIONS DIRECTIVE 97/68/EC, (2010/26/EU) ..........28...
  • Page 5: Technical Data

    Original User Manual FUXTEC FX-FSR152_rev05 We are continually striving to improve our products. Therefore technical data and illustrations can change! 1. Technical data FX-FSR152 Engine Air-cooled; 2-stroke Cubic capacity 51.7cm Maximum output power (kW) 2.2kW / 7,500min (in accordance with ISO 8893)
  • Page 6: Symbols And Safety Instructions On The Device

    Original User Manual FUXTEC FX-FSR152_de_fr_rev05 2. Symbols and safety instructions on the device WARNUNG! IMPROPER USE CAN CAUSE SERIOUS INJURY READ AND UNDERSTAND THIS USER MANUAL BEFORE USE. ALWAYS WEAR EYE PROTECTION, EAR PROTECTION AND HEAD PROTECTION WEAR FOOT PROTECTION.
  • Page 7 Original User Manual FUXTEC FX-FSR152_rev05 NO SMOKING AND OPEN FLAMES ON THE DEVICE WARNING: DANGER OF HOT COMPONENTS ALWAYS TURN OFF THE DEVICE AND MAKE SURE THE CUTTING TOOL IS STOPPED BEFORE CLEANING, REMOVING OR ADJUSTING IT. WARNING: FUMES FROM THIS PRODUCT CONTAIN...
  • Page 8 Original User Manual FUXTEC FX-FSR152_rev05 Do not let others use this device unless these persons have been fully instructed, have read and understood the device manual and have been trained in the operation of the device. More extended use of the device exposes the user to vibrations, which can lead to white finger disease (Raynaud's syndrome) or carpal tunnel syndrome.
  • Page 9: Intended Use And General Safety Instructions

    Original User Manual FUXTEC FX-FSR152_de_fr_rev05 3. Intended use and general safety instructions This device may only be used for mowing or trimming grass, weeds and undergrowth. Never use it for other purposes, as this may cause serious injuries! Correct safety instructions must be observed. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER.
  • Page 10 Original User Manual FUXTEC FX-FSR152_rev05 ● Do not use the device if you are tired, sick or under the influence of medication, drugs or alcohol ● Use an entire nylon cutting head. If you hit a stone or any other obstacle, stop the device and check the nylon cutting head.
  • Page 11: Notes For Accessories

    Original User Manual FUXTEC FX-FSR152_de_fr_rev05 4. Notes for accessories ● Make sure that your product is only equipped with original accessories. Only use original parts that are specified by the manufacturer. The use of any other accessories or attachments may cause injury to the user and damage to the device ●...
  • Page 12: Symbols On The Device

    Original User Manual FUXTEC FX-FSR152_rev05 5. Symbols on the device WARNING ◆ For safe operation and maintenance, symbols are attached to the device. Adhere to the instructions to avoid errors The filler neck "Gasoline/2-cycle oil mixture 1/40 Position: Fuel filler cap Set the switch to "|"...
  • Page 13: Component Overview

    Original User Manual FUXTEC FX-FSR152_rev05 6. Component overview Nylon thread head Protective shield Gearbox Drive axle Clutch bell Starter hoist Tank Wheel Connector 10) Rotary connectors 11) Handle connector 12) Left-hand handle 13) Right-hand handle 14) Throttle lever lock* 15) Throttle lever 16) Start/stop switch *14 Throttle lock prevents accidental acceleration of the engine.
  • Page 14: Assembly Of The Device

    Original User Manual FUXTEC FX-FSR152_rev05 7. Assembly of the device ■ Assembly of the frame 1. Put the handle into the intended holder and fix it with the shown clamp and the corresponding wing screw. 2. Fasten the handle with the appropriate screw (1) and nut (2) 3.
  • Page 15 Original User Manual FUXTEC FX-FSR152_de_fr_rev05 ■ Mounting the protective shield Attach the protective shield (5) and gear unit cover (4) with the gear unit (6) using the screws (3) supplied and tighten these screws. ■ Assembly thread head Place the holder (2) on the shaft under the protective...
  • Page 16: Fuels

    90 days. WARNING: It must be a first-class oil for 2-stroke air-cooled devices. We recommend the FUXTEC two-stroke oil ''MADE IN GERMANY''. FUEL MIXTURE Mix fuel with 2-stroke oil in a particular container. Please note the mixture table on the following page for the correct ratio of gasoline to oil.
  • Page 17 Original User Manual FUXTEC FX-FSR152_rev05 Recommended fuel It is recommended to use unleaded gasoline with an octane number of 90 # or higher to reduce carbon deposition in the combustion chamber. Do not use old or dirty gasoline. Keep the fuel tank dust-free and avoid water getting into the tank. Sometimes overload will cause misfiring, which is normal.
  • Page 18: Cold Start Of The Device

    Original User Manual FUXTEC FX-FSR152_de_fr_rev05 9. Cold start of the device WARNING The cutting head rotates immediately when the engine is started. 1) Ensure a secure stand and a firm and level surface. Slide the engine stop switch on the right handle to the position I Push the switch to position 0 you have no ignition spark and the engine cannot be started 2) Move the choke lever upwards to "COLD START".
  • Page 19: Warm Start Of The Device

    Original User Manual FUXTEC FX-FSR152_rev05 NOTE: If the device does not start after repeated attempts, refer to troubleshooting chapters. NOTE: Always pull the starter cord straight out. Pulling the starter at an angle will cause the rope to rub against the eyelet. Pulling the starter at an angle can cause the starter cord to fray or break.
  • Page 20 Original User Manual FUXTEC FX-FSR152_rev05 Never lift the nylon cutting head above knee height during operation. Do not run the device on a slope if there is a chance of slipping or losing stability. Always remember that the tip of the thread will cut. You will get better results if you do not push into the cutting area.
  • Page 21: Replacing The Nylon Thread

    Original User Manual FUXTEC FX-FSR152_rev05 TRIMMING AROUND TREES Trim around logs with a slow approach; the thread should not collide with the log. Walk around the tree from left to right. Approach grass or weeds with the tip of the thread.
  • Page 22: Maintenance Plan

    Original User Manual FUXTEC FX-FSR152_de_fr_rev05 Maintenance plan Regular checks and adjustments must be made to ensure that the gasoline engine maintains its performance. Regular maintenance also ensures a long service life. See the following table for the regular maintenance period.
  • Page 23 Original User Manual FUXTEC FX-FSR152_rev05 Cleaning the air filter CAUTION: Never run the engine without the air filter. A dirty air filter puts pressure on engine performance, increases fuel consumption and makes starting more difficult. If you notice a loss of engine power: 1.
  • Page 24: Storage Of The Device

    Original User Manual FUXTEC FX-FSR152_rev05 WARNING The spark plug must be screwed down tightly; otherwise, the engine runs hot and is damaged. Sharpen the shielded knife 1) Remove cutting knife (E) from protective shield (F). 2. Clamp the knife in a vice. Sharpen the knife with a flat- file.
  • Page 25 Original User Manual FUXTEC FX-FSR152_rev05 9) Store the device in a cool, dry place away from any ignition source such as an oil burner, water heater, etc. TRANSPORT PROTECTION Make sure that the device is well-secured during transport to avoid fuel loss, damage or...
  • Page 26: Troubleshooting

    Original User Manual FUXTEC FX-FSR152_de_fr_rev05 Troubleshooting 1) Difficulties during commissioning Situation Cause Solution Clean the spark plug. Carbon deposit between the Adjust the gap Spark plug No ignition diodes of the spark plug 0.6~0.7mm, replace spark the spark plug Ignition coil defective flywheel...
  • Page 27: Customer Service

    Excluded from the warranty are wearing parts and damage caused by improper use, use of force, technical modifications, use of wrong accessories or non-original spare parts and repair attempts by non-qualified personnel. Warranty repairs may only be processed by FUXTEC workshop.
  • Page 28 EN ISO 14910:2007/A1:2009 standards: EN ISO 14982: 2009 Manufacturer signature/date: Tim Gumprecht, 14.09.2020 The name and address of the Tomislav Zelic person authorized to compile FUXTEC GMBH - KAPPSTRAßE 69, 71083 HERRENBERG, the technical documentation GERMANY established within the community...
  • Page 29 Mode d’emploi original FUXTEC FX-FSR152_de_fr_rev05...
