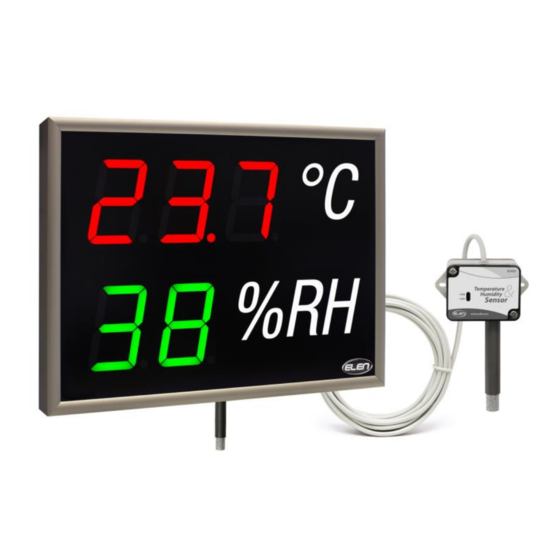

1. Brief Description The NDA 100/3-2 TH(S) series systems are electronic devices designed to monitor air temperature and relative humidity. The measurements are made by a high-precision digital sensor, which can be internal plug-in type (version THS) or external wired (version TH). - Page 3 Meaning of the letter code: THS Sensor Temperature and Humidity Sensor. 52 or 40 Enclosure protection rating, IP 52 / IP 40. 12DC/24DC/PoE Power supply voltage. RS485/LAN/PoE Communication interface. 3. Technical Specifications – LED Display The large-size LED display consists of super-bright single color (version R) or multi- color (version RG) 7-segment LED modules with 100 mm digit height and 120°...
- Page 4 4. Technical Specifications – Temperature / Humidity Sensor The measurements of air temperature and humidity are performed by a high-accuracy and precision digital sensor. The sensor device can be internal plug-in type (version THS) or external wired (version TH). Sensor Parameters •...
- Page 5 Internal Plug-in Sensor Connection (NDA…THS version) If your display delivery includes internal plug-in temperature and humidity sensor (NDA…THS version) insert the sensor device into the opening hole in the bottom side of display frame. To ensure proper electrical connection the connector of the sensor must be inserted all the way in.
- Page 6 LAN Interface Connector – P9 Ethernet 10/100 RJ45 shielded connector is used. Connector view Signal Direction output output input NC (LAN), +Vdc (PoE) NC (LAN), +Vdc (PoE) input NC (LAN), -Vdc (PoE) NC (LAN), -Vdc (PoE) shield The IP address, SubNet Mask and Gateway of display have been programed at factory. These values are printed on a label located on the back side of display.
- Page 7 6. Internet Web Browser Connection Reading Measured Values Display has a programmed web server. This feature allows remote connection with display using a standard PC based Internet web browser (Internet Explorer, Mozilla Firefox, etc. ) Simply enter the numeric IP address of display into browser’s URL field (For example: “192.168.0.69”).
- Page 8 You can view more displays at the same time by opening several tabs on your browser and entering their corresponding IP addresses into each tab’s URL field. Configuring Display When connected with display via its IP address in the web browser, you can enter the Administrator menu.
- Page 9 User Manual / NDA 100/3 TH(S) RG L30 230AC(PoE) LAN...
- Page 10 TEMPERATURE Displays temperature value currently on display. Temperature -9,9°C to +9,9°C. Offset Allows user to implement offset correction to measured values from -9,9°C to +9,9°C. Default value is 0. Please be cautious when using this feature because sensors are already calibrated from factory.
- Page 11 Sensor No. 1 IP address Valid for Ethernet LAN type external sensors only. Enter corresponding sensor IP address. This sensor’s IP address will be paired with display’s IP address. Measured values from the sensor with this IP address will be displayed on the large size display. (Display’s IP address is in the URL field of the browser.) If external RS485 sensor is used, IP address is not used.
-
Page 12: Display Settings
Display settings Display mode Sensor No. 1 / Sensor No. 2 / Average from 2 sensors Sensor No. 1 Display will show measured value from sensor No. 1 as configured above. Sensor No. 2 Display will show measured value from sensor No. 2 as configured above. -
Page 13: Change Administrator Password
It is possible to reset the IP address back to factory default value by pressing and holding the RESET button for seconds. The RESET button is located near the external sensor connector P1 on the back panel. Change administrator password Enter new password if you want to change it.
