K&K Sound Pure Resonator BB Product Manual page 2

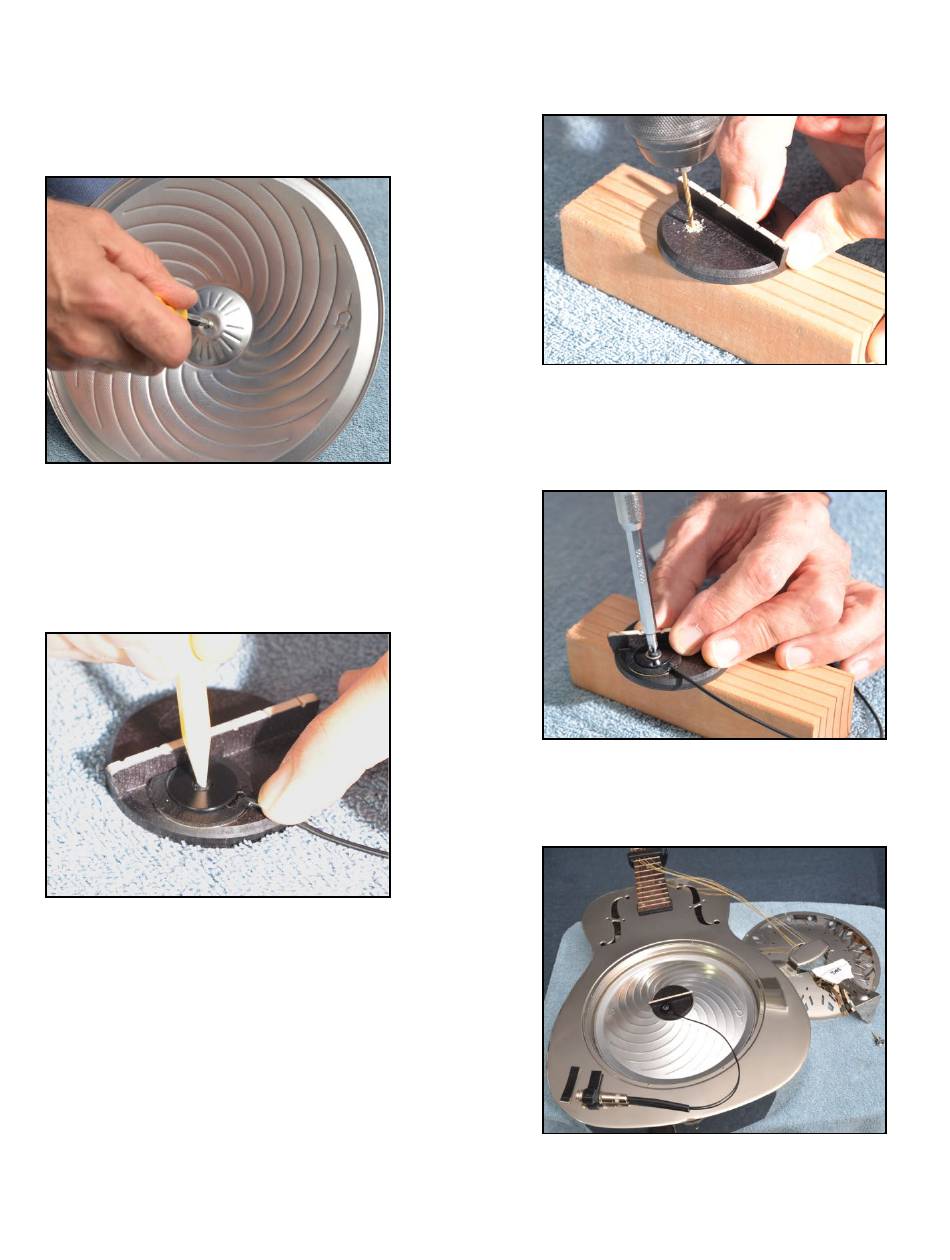

5. Take out the resonator cone with the biscuit
bridge.
6. Unscrew the biscuit-bridge-holding-screw on the
back of the resonator and remove the biscuit.
7. Mark the hole location for the pickup mounting
hole in the biscuit. Make sure the pickup is as far
as possible on the low string side, just without
the pickup edge extending over the outer edge
of the biscuit. It should slightly overhang the
bevel of the biscuit to maximize its location
towards the low string side, as shown in photo.
8. Drill a 5/64" (1.9 mm) hole through the biscuit
on the marked spot.
9. Mount the pickup like shown in photo with the
supplied black Phillips head screw and the small
washer that comes with it. Please note that you
should tighten this screw as hard as you can
with a screwdriver that nicely fits the screw.
10. Reinstall the biscuit to the resonator.
11. Place the resonator back in the resonator well in
the guitar.
