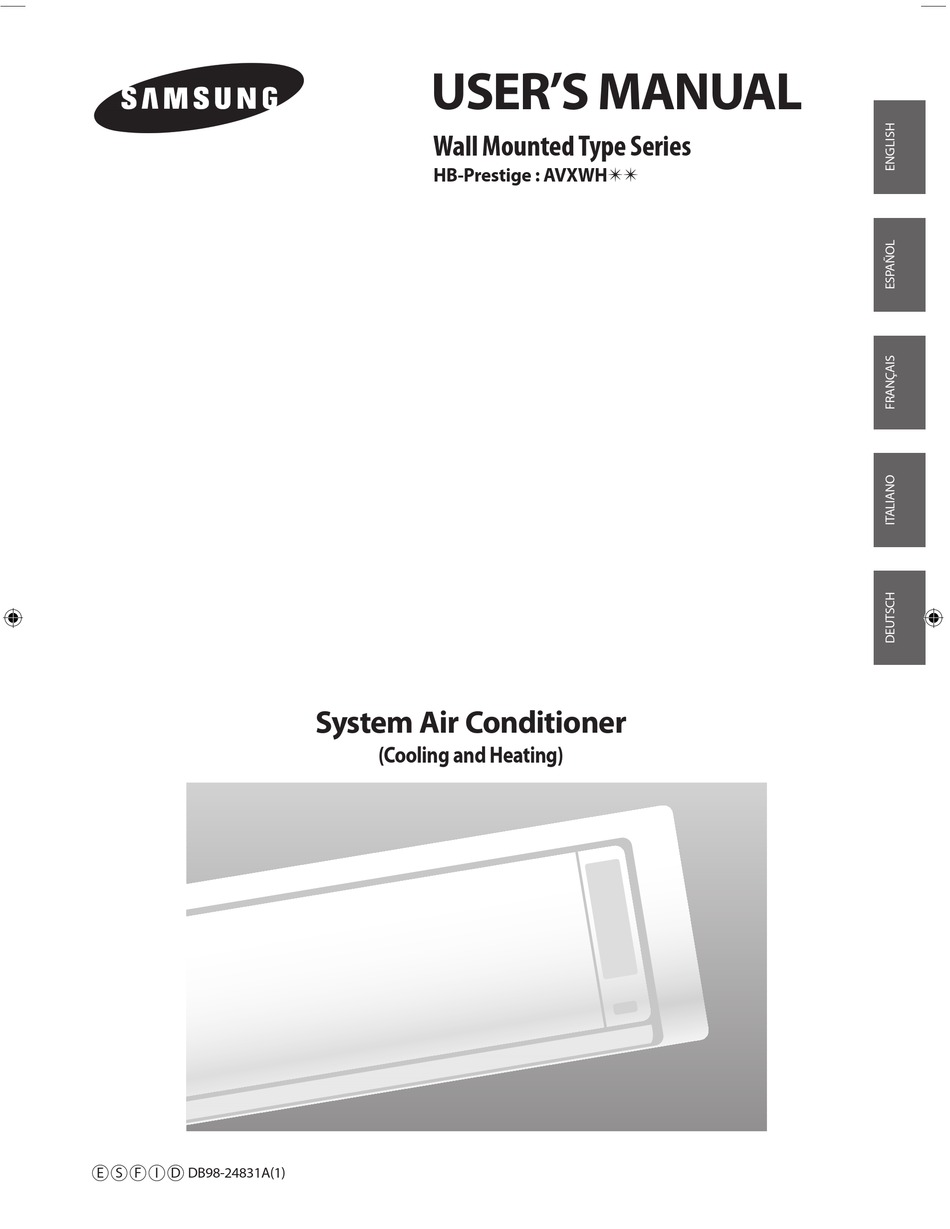

- Page 1 USER’S MANUAL Wall Mounted Type Series HB-Prestige : AVXWH System Air Conditioner (Cooling and Heating) F I D DB98-24831A(1)
-
Page 2: Table Of Contents
(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. -
Page 3: Safety Precautions
Register your product at www.samsung.com/global/register Safety Precautions You should take the following safety precautions when using your air conditioner. Risk of electric shock can cause injury or death. Disconnect all remote WARNING electric power supplies before servicing, installing or cleaning. - Page 4 WARNING URING PERATION Users of this product are cautioned not to attempt repair of this product at their own discretion. Instead, they are requested to directly contact a designated service center or the outlet at which the product was purchased. ...
- Page 5 WARNING ISPOSING THE Before throwing out the When you need to dispose of device, it is necessary to pull the unit, consult your dealer. back the battery cells and get If pipes are removed rid of them safely for recycling incorrectly, refrigerant may reasons.
- Page 6 CAUTION EGARDING OWER Disconnect the circuit breaker when you don’t use the air conditioner for a long time to save energy. URING PERATION Do not open the front grille during operation. Do not use the air conditioner for a long time in a closed room or in a place where there’s a baby or an old person.
- Page 7 CAUTION URING PERATION Do not touch the pipes Do not use the air conditioner connected to the air to maintain the machine, food, conditioner. pet, plant or cosmetics. THERS Be sure that the air filter not to ...
-
Page 8: View Of The Indoor Unit
View of the Indoor Unit The design and shape are subject to change according to the model. Air filter (under the grille) blades(outlet) Set temperature & room temperature Operation indicator (Auto-Cool, Cool, Dry, Fan : Blue Auto-Heat, Heat : Orange) Turbo function indicator Timer indicator (Orange) -
Page 9: Remote Control-Buttons And Display
Remote Control-Buttons and Display Remote control transmission indicator Battery life indicator Fan speed indicator Anions indicator Sleep mode indicator On Timer indicator Power (On/Off) button Mode selection button (AUTO, COOL, DRY, FAN, HEAT) Fan speed adjustment button Turbo button Energy saving button On Timer button Off Timer button Operating mode... -
Page 11: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when: You purchase the air conditioner The remote control does not work correctly Note Use two AAA, LR03 1.5V batteries. Do not use old batteries or different kinds of batteries together. B atteries may be completely discharged after 12 months, even ... -
Page 12: Selecting The Auto Mode
Selecting the Auto Mode Control Panel You can select the Auto mode if you want to cool or heat your room automatically. You can adjust the temperature in this mode. If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. ... -
Page 13: Selecting The Cool Mode
Selecting the Cool Mode You can select the Cool mode if you want to cool your room. You can adjust the temperature and the fan speed when cooling. If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. ... -
Page 14: Selecting The Heat Mode
Selecting the Heat Mode Control Panel You can select the Heat mode if you want to heat your room. You can adjust the temperature and the fan speed when heating. If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. ... -
Page 15: Selecting The Dry Mode
Selecting the Dry Mode You can select the Dry mode if you want to dehumidify your room. You can adjust the temperature in this mode. If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. ... -
Page 16: Selecting The Fan Mode
Selecting the Fan Mode Control Panel You can select the Fan mode if you want to ventilate your room. It helps to refresh the air in your room. You can adjust the fan speed in this mode. If necessary, press the (On/Off) button. -
Page 17: Selecting The Turbo Function
Selecting the Turbo Function You can select the Turbo Function if you want to cool or heat your room in the fastest way. After the 30 - minute operation with the maximum setting, it returns to the previous setting. If necessary, press the (On/Off) button. -
Page 18: Selecting The Energy Saving Function
Selecting the Energy Saving Function You can select the Energy Saving Function to save energy when cooling. The temperature range decreases in order to perform this function. If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. ... -
Page 19: Selecting The Auto Cleaning Function
Selecting the Auto Cleaning Function You can select the Auto Cleaning Function if you want to sterilize the air conditioner or remove mold. Even when the air conditioner is turned off, you can set this function. If necessary, press the (On/Off) button. -
Page 20: Selecting The Sound On/Off Function
Selecting the Sound On/Off Function You can turn on or off the sound of the air conditioner with the remote control. Press the button to turn off the sound. Note Each time you press the selected repeatedly. button, Sound On/Off function is... -
Page 21: Selecting The Anions Function
Selecting the Anions Function The air conditioner can generate anions with an ionizer in the indoor unit. Since it is an additional function, you can select it in any mode, even when the air conditioner is turned off. Press the button. -
Page 22: Adjusting The Airflow Direction Vertically
Adjusting the Airflow Direction Vertically You can adjust the airflow direction vertically. The outer airflow blade moves up and down to increase the efficiency of the cooling or heating operation. Press the button until the required direction is set. Result: ... -
Page 23: Adjusting The Airflow Direction Horizontally
Adjusting the Airflow Direction Horizontally You can adjust the airflow direction horizontally manually. The inner blades with small fins moves the air in the required direction. Adjust the inner blades by moving them to left or right. -
Page 24: Setting The On Timer
Setting the On Timer You can set the On Timer to turn on the air conditioner automatically at the appointed time. You can set the time from 30 minutes to 24 hours. Press the button until the required time is displayed to set the On Timer. You can set the time between 0.5 hour and 24 hours. -
Page 25: Setting The Off Timer
Setting the Off Timer You can set the Off Timer to turn off the air conditioner automatically at the appointed time. You can set the time from 30 minutes to 24 hours. Press the button until the required time is displayed to set the Off Timer. You can set the time between 0.5 hour and 24 hours. -
Page 26: Setting The Sleep Timer
Setting the Sleep Timer You can set the Sleep Timer to turn off the air conditioner automaticallywhile you are sleeping. The air conditioner stops operating 6 hours afteryou set the Sleep Timer. Press the button. Result: The indoor unit beeps. ... -
Page 27: Operating Recommendations
Operating Recommendations When you use your air conditioner, it is recommended to read the following: Topic Recommendation Heating capacity The heat pump inside the air conditioner absorbs heat from outside air and brings itindoors. If the temperature of the outside air drops, the air conditioner heats less. -
Page 28: Temperature And Humidity Ranges
Temperature and Humidity Ranges If you check the following tables, you can use your air conditioner more efficiently. If the air conditioner is used at... Heating capacity Low temperatures Protection mechanism Operation Outdoor Temperature Heating -15°C to 24°C approx. Cooling 5°C to 43°C approx. -
Page 29: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner For the best use of your air conditioner, you must clean it every 2 weeks regularly to remove the dust that accumulates on the air filter. IMPORTANT Before cleaning your air conditioner, ensure that you have switched off the breaker used for the unit. -
Page 30: Cleaning Anti-Allergy And Deodorizing Filter (Option)
Cleaning Anti-Allergy and Deodorizing Filter (Option) Deodorizing Filter Anti-Allergy Filter There are Anti-Allergy and Deodorizing filters inside your air conditioner. They remove odours and dust in your room. You should clean the filters every 3 months. Open the upper front grille by pulling the lower right and left tabs ofthe grille. Pull out the Anti-Allergy and Deodorizing filter. -
Page 31: Solving Common Problems
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem The air conditioner does not Check if power is on and operate the air conditioner again. operate at all. - Page 32 Contact SAMSUNG WORLD WIDE If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center. Country BELGIUM CZECH REPUBLIC DENMARK FINLAND FRANCE GERMANY HUNGARY ITALIA LUXEMBURG NETHERLANDS NORWAY POLAND PORTUGAL SLOVAKIA SPAIN SWEDEN Customer Care Center...
