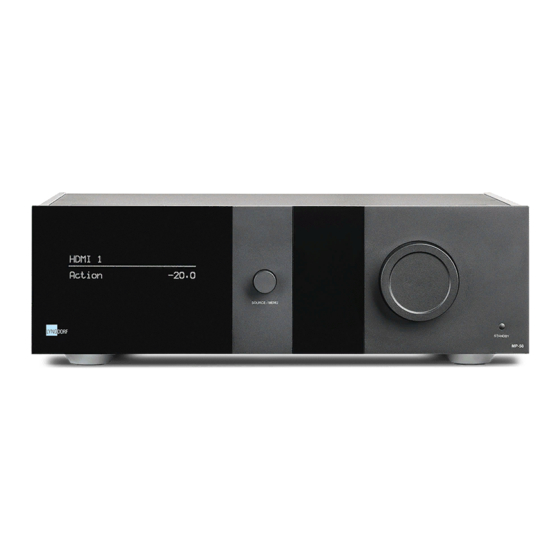

MODEL MP-50
SURROUND SOUND PROCESSOR
LYNGDORF MP-50
EXTERNAL CONTROL
EXTERNAL CONTROL MANUAL
MANUAL
2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lyngdorf MP-50

Summary of Contents for Lyngdorf MP-50

  • Page 1 MODEL MP-50 SURROUND SOUND PROCESSOR LYNGDORF MP-50 EXTERNAL CONTROL EXTERNAL CONTROL MANUAL MANUAL 2020...

  • Page 2: Table Of Contents

    Controlling Voicings ....................19 Controlling Lipsync ....................19 Getting Zone 2 Audio Status ..................20 Controlling Feedback Level ..................20 Controlling OSD and OSD Menu ................21 IR CODES ......................... 24 RS232 pinout diagram ....................25 Lyngdorf MP-50 – External Control Manual...

  • Page 3: Introduction

    For control from a PC, use Telnet, Putty, or similar programs to open the TCP connection. If you do not know the IP address of the MP-50 on your local network, the MP-50 supports Apple´s Bonjour Discovery service, which must be on the computer you want to set up the MP-50 with.

  • Page 4: Control Via Serial Port

    Control Via Serial Port The serial port on the MP-50 is wired as a DTE, so for communication with a PC or similar, you will need a null modem adapter and gender changer. The port settings should always be 8 data bits, no parity, one stop bit and no hardware handshake.

  • Page 5: Control Protocol

    Feedback level 2: Each command is also echoed back with the ‘#’ in front of the command instead of ‘!’ character. For example, command “!VOL?<CR>” would return “#VOL?<CR>!VOL(XXX)<CR>”. Lyngdorf MP-50 – External Control Manual...

  • Page 6: Commands

    !DTSDIALOGAVAILABLE? Request the current X = 0: Not available, availability of DTS !DTSDIALOGAVAILABLE(X) otherwise X = 1 Dialog Control !DTSDIALOGDN DTS Dialog Control Down !DTSDIALOGUP DTS Dialog Control !ENTER Enter button !EXIT Exit button Lyngdorf MP-50 – External Control Manual...
  • Page 7 -20.0 dB) maximum volume setting !MAXVOL(X) -550 to -200 (= -55.0 Sets the maximum to -20.0 dB) volume !MENU Menu Button !MULTIVIEW Multiview button !MUTE Mute toggle button !MUTE? !MUTEON or Requests mute !MUTEOFF Lyngdorf MP-50 – External Control Manual...
  • Page 8 Request list of !RPVOI(X)”name” of available voicings. available voicings Repeated for all available X is the number of the Voicings voicing and “name” is the name of the position as a string. !SETUP Setup button Lyngdorf MP-50 – External Control Manual...
  • Page 9 !TRIMBASS(X) X is between -120 (- Sets bas level trim (10 12dB) and 120 = 1dB) (+12dB) !TRIMBASS+ Increases bas level trim (10 = 1dB) !TRIMCENTER- Decreases center channel level trim (10 = 1dB) Lyngdorf MP-50 – External Control Manual...
  • Page 10 X is between -120 (- Sets treble level trim 12dB) and 120 (10 = 1dB) (+12dB) !TRIMTREB+ Increases treble level trim (10 = 1dB) !VERB? !VERB(X) 0 to 2 Requect verbosity level of active interface. Lyngdorf MP-50 – External Control Manual...
  • Page 11 Decrease zone B volume !ZVOL-(X) -999 to 240 (= -99.9 to decrease zone B +24.0 dB) volume by X !ZVOL? !ZVOL(X) -999 to 240 (= -99.9 to Request current zone +24.0 dB) B volume Lyngdorf MP-50 – External Control Manual...
  • Page 12 !ZVOL(X) -999 to 240 (= -99.9 to Set zone B volume +24.0 dB) !ZVOL+ Increase zone B volume !ZVOL+(X) -999 to 240 (= -99.9 to Increase zone B +24.0 dB) volume by x Lyngdorf MP-50 – External Control Manual...

  • Page 13: Control Protocol Usage

    Commands !ZVOL+<CR>, !ZVOL-<CR>, !ZVOL+(X)<CR>, !ZVOL-(X)<CR>, !ZVOL(X)<CR>, !ZVOL?<CR>, !ZMUTEON<CR>, !ZMUTEOFF<CR> and !ZMUTE<CR> are used to control zone 2 volume the same way as the main zone volume. Lyngdorf MP-50 – External Control Manual...
  • Page 14 It is never possible to set the volume above the maximum volume level setting with control interface commands, but it is very easy to accidentally reach the maximum volume level. Lyngdorf MP-50 – External Control Manual...

  • Page 15: Controlling Sources

    0 and the index of the last source. This response is also sent automatically, when the source changes, if feedback level is 1 or higher. If main zone is off, the MP-50 will reply with the previous selected source. Zone 2: Sources on zone 2 are a subset of the sources set up for main zone.
  • Page 16 This response is also sent automatically, when the zone 2 source changes, if feedback level is 1 or higher. If zone 2 is turned off, the MP-50 will reply with the previous selected source. Commands !ZSRC+<CR> and !ZSRC-<CR> are used to select next or previous source.
  • Page 17 Controlling Processing Modes The MP-50 processor has controls for selecting processing modes, also called audio modes. Command !AUDMODEL?<CR> can be used to get a list of processing modes; how many are there and what they are named. For example, a response for command !AUDMODEL?<CR>...

  • Page 18: Controlling Focus Positions

    !RPFOCS?<CR>. The installer might add or remove focus positions at any time, so it is recommended to update the list of selectable focus positions at least in every boot-up. Lyngdorf MP-50 – External Control Manual...

  • Page 19: Controlling Voicings

    Commands !LIPSYNC+<CR> and !LIPSYNC-<CR> are used to adjust the lipsync trim value by 5ms or -5ms, respectively. Command !LIPSYNC(X)<CR> is used to set the lipsync trim directly. The valid value range for this command needs to be fetched from the MP-50 (see below).

  • Page 20: Getting Zone 2 Audio Status

    1 or higher. Controlling Feedback Level It is possible to set the feedback level from the external control interface with command !VERB(X)<CR>, where X is the wanted feedback level 0, 1 or 2. Lyngdorf MP-50 – External Control Manual...

  • Page 21: Controlling Osd And Osd Menu

    On Screen Menu when using a dedicated control interface. Direct controlling of HDMI outputs It is possible to control the HDMI outputs of the MP-50 controller directly using special control interface commands. The controlling allows routing of any HDMI input directly to either one of the HDMI outputs in bypass mode.
  • Page 22 Spdif 4 (Opt.) Spdif 5 (AES) Spdif 6 (Coax) Spdif 7 (Coax) Spdif 8 (Coax) Internal Player 16-Channel 16-Channel 2.0 16-Channel 5.1 16-Channel 7.1 Audio Return Channel STREAM TYPES No. Stream type None vTuner Spotify AirPlay Lyngdorf MP-50 – External Control Manual...
  • Page 23 UPnP Storage Roon ready Unknown Lyngdorf MP-50 – External Control Manual...

  • Page 24: Ir Codes

    0x37CA, 0x718E Input 2 0x37CA, 0x728D Input 3 0x37CA, 0x738C Input 4 0x37CA, 0x748B Input 5 0x37CA, 0x758A Input 6 0x37CA, 0x7689 Input 7 0x37CA, 0x7788 Input 8 0x37CA, 0x7887 Input 9 0x37CA, 0x7986 Lyngdorf MP-50 – External Control Manual...

  • Page 25: Rs232 Pinout Diagram

    RS232 pinout diagram Lyngdorf MP-50 – External Control Manual...
  • Page 26 Lyngdorf MP-50 – External Control Manual SL AUDIO A/S • ULVEVEJ 28 • 7800 SKIVE • DENMARK • WWW.LYNGDORF.COM...
