Technical Specifi cations
Access Possibilities
NFC, Key Code
Power Supply
9...28VDC SELV/PELV
typ. 0.05W, max. 0.8W
Power Consumption
(while reading NFC)
Safety Rating
IP44
Ambient Temperature
-20...55°C / -4...131°F
Humidity
95% r.H. (non condensing)
This device is free of
Maintenance &
maintenance and may only be
Cleaning
cleaned with a dry cloth.
Connection
0.32...0.08mm
Wire Diameter
AWG22...AWG28
Exposed Wire Length
3.5mm / 0.14"
To make connection, insert the
Push-In Technology
wire; to remove the wire twist
and pull at the same time.
/
2
GET IN TOUCH!
o ce@loxone.com
www.loxone.com/contact
www.loxone.com

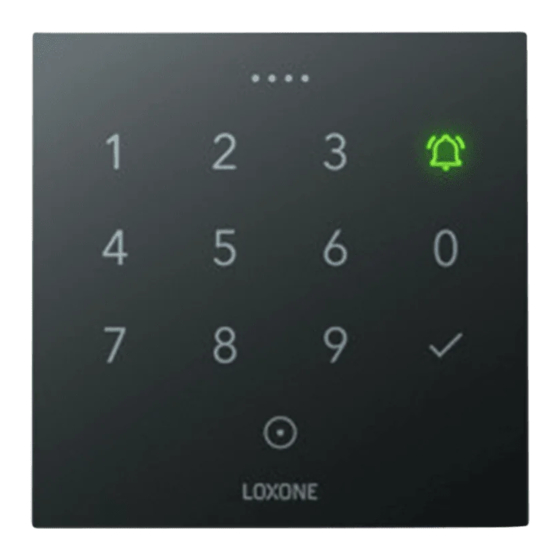

NFC CODE
TOUCH TREE
Part No.: 100300 (white)
Part No.: 100300 (white)
Part No.: 100306 (anthracite)
Part No.: 100306 (anthracite)
Advertisement
Table of Contents
Related Manuals for LOXONE NFC CODE TOUCH TREE
Summary of Contents for LOXONE NFC CODE TOUCH TREE
- Page 1 Connection 0.32...0.08mm Wire Diameter AWG22...AWG28 Exposed Wire Length 3.5mm / 0.14“ GET IN TOUCH! To make connection, insert the o ce@loxone.com Push-In Technology wire; to remove the wire twist and pull at the same time. www.loxone.com/contact...
- Page 2 Install the mounting frame of the NFC Code Touch on the desired installation place. Power up the device and pair it with your Miniser- ver in Loxone Config. To finish the installation, attach the NFC Code Touch as shown on the mounting frame.
