VH8

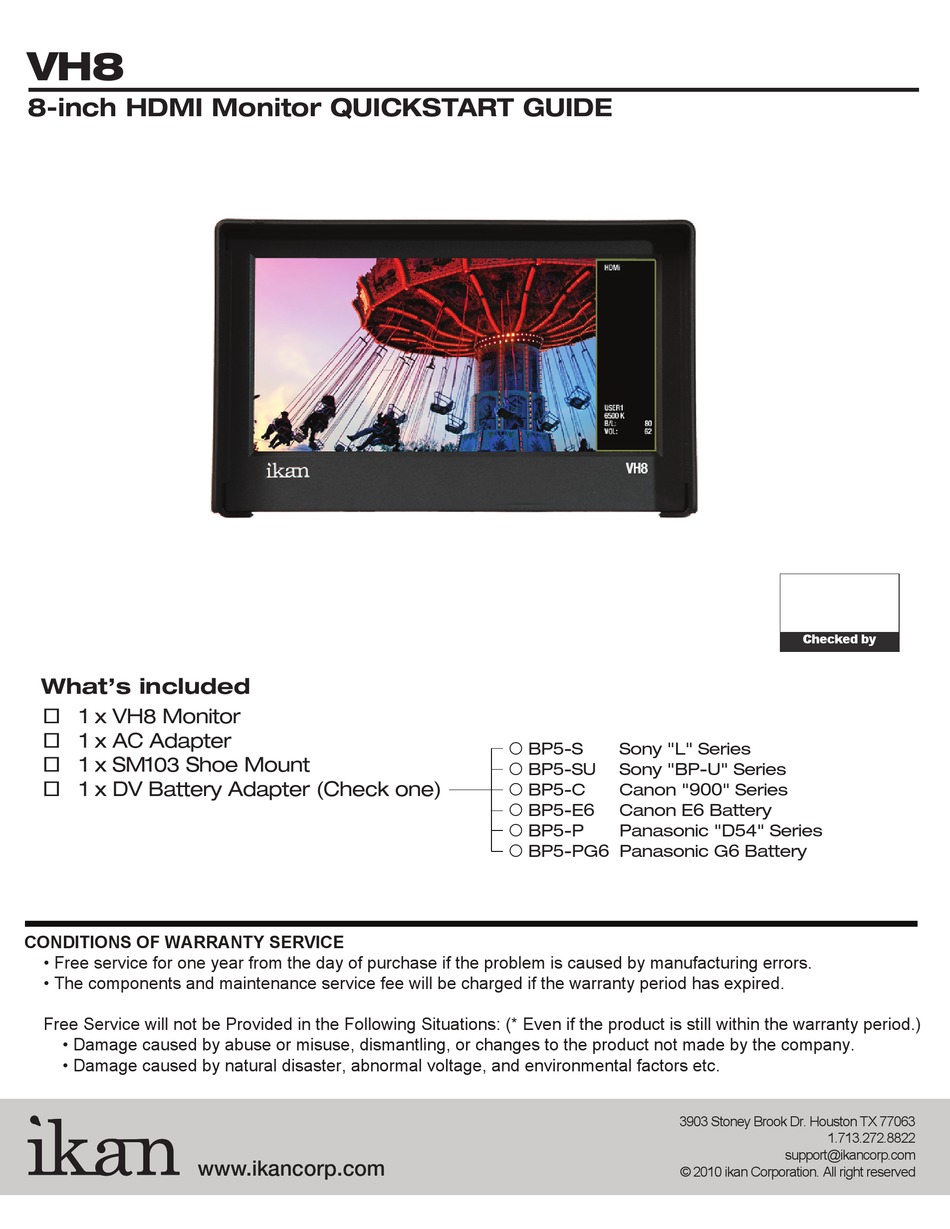

8-inch HDMI Monitor QUICKSTART GUIDE
What's included
 1 x VH8 Monitor
 1 x AC Adapter
 1 x SM103 Shoe Mount
 1 x DV Battery Adapter (Check one)
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
www.ikancorp.com
 BP5-S
Sony "L" Series
 BP5-SU
Sony "BP-U" Series
 BP5-C
Canon "900" Series
 BP5-E6
Canon E6 Battery
 BP5-P
Panasonic "D54" Series
 BP5-PG6 Panasonic G6 Battery
3903 Stoney Brook Dr. Houston TX 77063
© 2010 ikan Corporation. All right reserved
Checked by
1.713.272.8822
support@ikancorp.com

Advertisement

loading

Summary of Contents for Ikan VH8

  • Page 1 • Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors etc. 3903 Stoney Brook Dr. Houston TX 77063 1.713.272.8822 support@ikancorp.com www.ikancorp.com © 2010 ikan Corporation. All right reserved...
  • Page 2 8-inch HDMI Monitor QUICKSTART GUIDE Inches Resolution: 1600 x 768 SPECIFICATIONS SUPPORTED RESOLUTIONS & FRAME RATES Diagonal: 8-inch Video: NTSC-M, NTSC-J, NTSC 4.43 Resolution: 1600 x 768 PAL B/G H I D, PAL M, PAL N LCD Brightness: 300 NIT SECAM Contrast Ratio: 400:1...
  • Page 3 User programmable function keys. For quick access, the user may program the F1, F2 and F3 buttons to enable frequently DV Battery Plate Slot accessed monitor features via the main monitor con guration Mounting ikan DV battery plate menu. Sun Visor Head Phone Jack...
  • Page 4 See included chart for color assignments. EXIT The VH8 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will ash in a vivid purple, indicating only the over exposed area.
