Plotmaster HUNTER Series User Manual page 10

THE "SPLATTER PLATE" IS DESIGNED TO ALLOW SEED TO
THE PLATE IS ADJUSTABLE AND CAN DETERMINE THE
DIRECTION OF THE SEED WHEN DISPENSING. VERTICAL:
DROPS SEED DIRECTLY BEHIND THE UNIT HORIZONTAL:
SPLATTERS SEED MORE WIDELY.
THE "SPIRAL BRUSH" IS DESIGNED TO MOVE, MIX AND
DISPENSE SEED TO THE TEAR DROP HOLES IN THE
THIS INSURES AN EVEN DISTRIBUTION OF SEED AS WELL
AS BLENDING MIXED SIZED SEEDS.
Additional Seeding Note:
For lofty seed (Wheat, Rye, Oats, Grasses etc...) it may be necessary to
remove the Augur Shield inside the seeder (this is the scalloped plate
that covers the Spiral Brush) so that the seeds do not bridge between
the brush and the shield causing the motor to stall.
The reason that this happens is the dispense rate of these seeds is less
than that of the motor revolution rate. This sometimes happens with
various types of Soybeans as well but by removing the shield the issue is
rectified. (See Helpful Hints on Page 17)

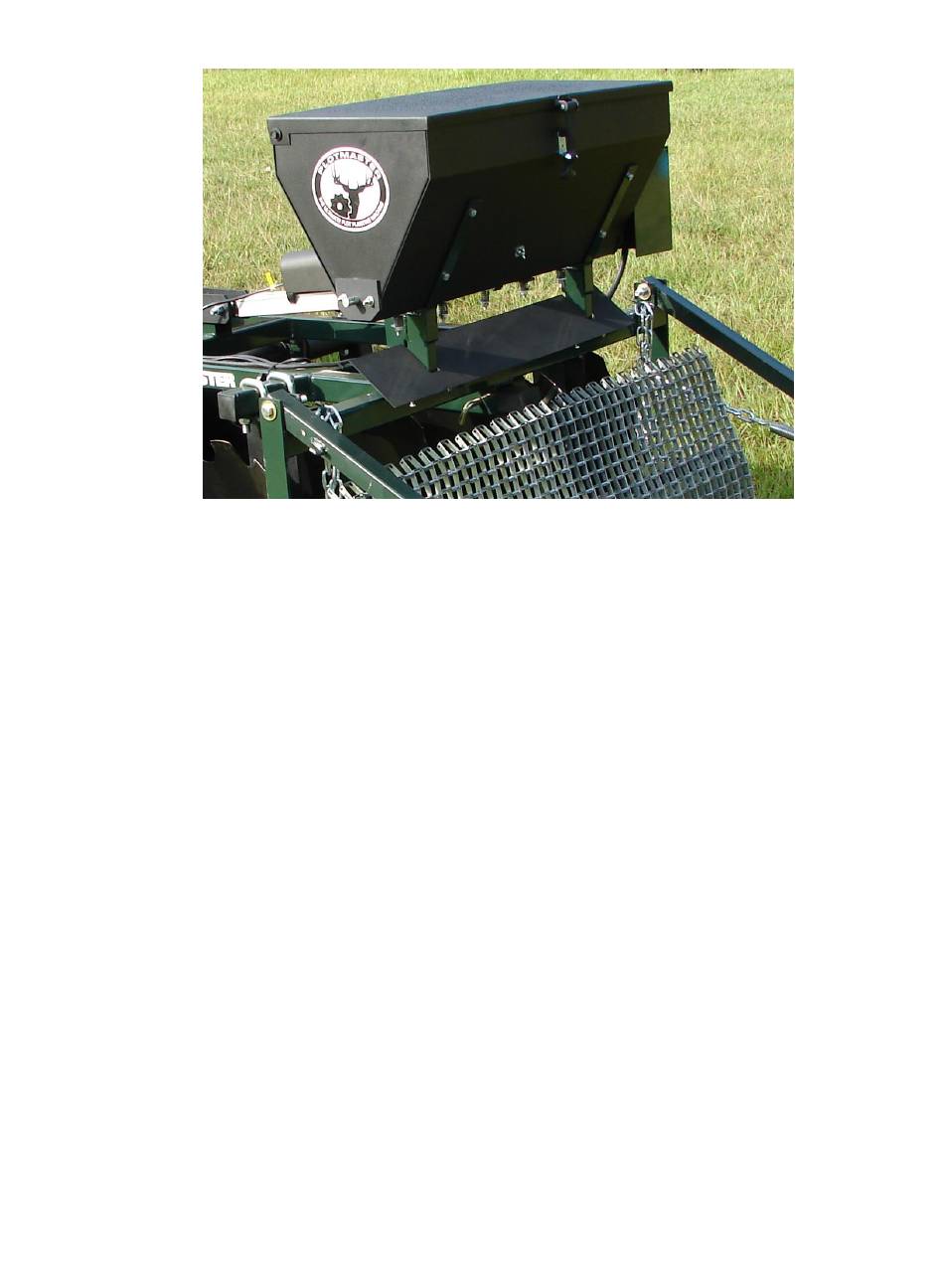

VERSA SEEDER ASSEMBLY
SCATTER AND SPREAD EVENLY.
BOTTOM OF THE SEED BOX.
Page 10 of 22
