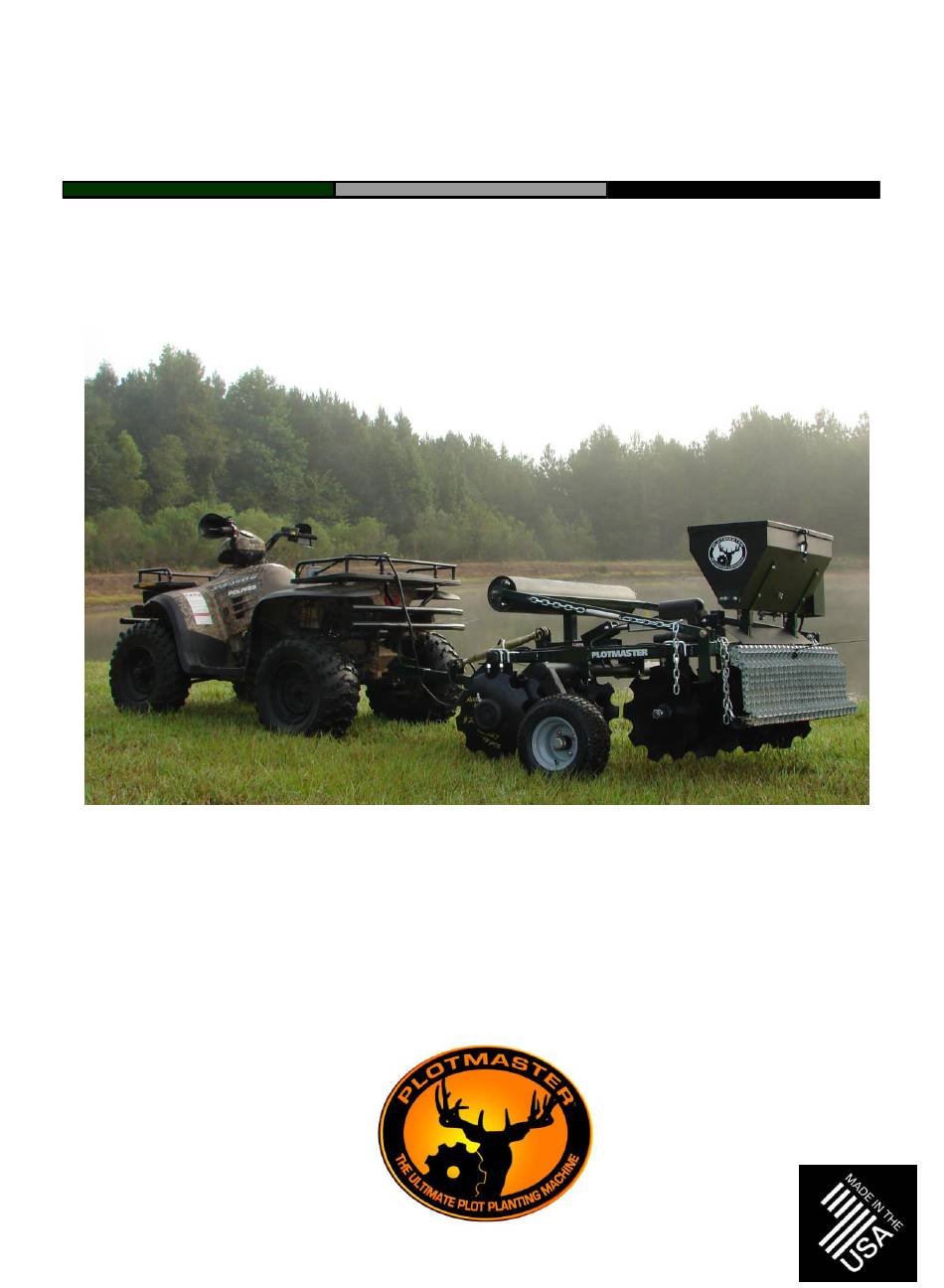

- Page 1 HUNTER SERIES (Single point - 3 point Hitch capable) USERS MANUAL, SAFETY INSTRUCTIONS & PLANTING TIPS Product PLOTMASTER™ Systems, LLC Wrightsville, GA 31096 1-478-864-9108 or 1-888-629-4263 Page 1 of 22...
- Page 2 (continued) Page 6………Details on components of your Plotmaster™ Page 7………Details on components of your Plotmaster™ (continued) Page 8…..…..2017 Diagram Main components of your Plotmaster™ Page 9.……...List of Components for 2017 Model Page 10……..Versa Seeder Assembly Page 11……..Unique Down Pressure System Page 12……..Pictures of Available Plow Attachments...
- Page 3 Hunter 600**Width: 80”----Length: 124”----Height: 47” Hunter 800**Width: 104”--Length: 124”----Height: 47” Q. Will the PLOTMASTER™ Hunter 300, 400 fit in the back of a truck? Yes, with the tongue folded back it will easily fit in a small pickup truck. Q. Are spare parts available? Yes.
- Page 4 PLOTMASTER™ DO NOT SIT, STAND OR RIDE ON THE WHILE IN USE MAXIMUM CAPACITY OF HUNTER SERIES SEEDER 40 LBS OF “SEED” - H-300 50 LBS OF “SEED” - H-400 DO NOT PUT HANDS IN SEED BOX WHILE SEEDER MOTOR IS IN THE ON POSITION.
- Page 5 KEEP HANDS AND FINGERS CLEAR WHEN RAISING OR LOWERING THE DRAG AND/OR CULTIPACKER TO AVOID PINCHING. THE HUNTER SERIES, (1 POINT HITCH MODELS), CAN BE USED WITH ATV’S/UTV’S. IT CAN ALSO BE USED WITH TRACTOR’S THAT HAVE DRAW BAR/SINGLE POINT CONNECTIONS.
- Page 6 (A. 1Pt. Hitch Receiver) Each Electric PLOTMASTER™ comes with a 1-point hitch hook-up that connects directly to your ATV or UTV. This hitch is designed to fit, 1 7/8” up to a 2” trailer ball. (Adjustment can be made by loosening or tightening the nut on the under-side of the coupler hitch).
- Page 7 The Seeder is where your seed is dispensed from; The H-300 capacity is 40# of seed and the H-400 capacity is 50# of seed. (Plotmaster “DOES NOT” recommend lime or fertilizer be dispensed through this seeder!) (I. Seeder Motor) (PT# SA-29-06-A) The Electric Seeder Motor is activated by the Control Boxes ON/OFF switch.
- Page 8 DIAGRAM OF 2017 HUNTER SERIES Page 8 of 22...
- Page 9 PART DESCRIPTION OF COMPONENT DIAGRAM FOR “2017 MODEL” A. 1-POINT HITCH B. TOP LINK—FOR DOWN PRESSURE C. CULTIPACKER/ROLLER D. LINEAR LIFT SYSTEM E. WHEEL ASSEMBLY F. DOUBLE DISC / GANG ASSEMBLY G. SEED FLOW CONTROL HANDLE H. ELECTRIC SEEDER BOX I.
- Page 10 VERSA SEEDER ASSEMBLY THE “SPLATTER PLATE” IS DESIGNED TO ALLOW SEED TO SCATTER AND SPREAD EVENLY. THE PLATE IS ADJUSTABLE AND CAN DETERMINE THE DIRECTION OF THE SEED WHEN DISPENSING. VERTICAL: DROPS SEED DIRECTLY BEHIND THE UNIT HORIZONTAL: SPLATTERS SEED MORE WIDELY. THE “SPIRAL BRUSH”...
- Page 11 UNIQUE DOWN PRESSURE SYSTEM THE “DOWN PRESSURE SYSTEM” IS DESIGNED FOR THE USER TO DISTRIBUTE THE CUTTING PRESSURE OF THE DISC WHERE NEEDED. THE “TOP LINK” CAN BE ADJUSTED TO PUT MORE CUTTING PRESSURE ON THE FRONT DISC OR CAN BE USED TO APPLY THE PRESSURE TO THE REAR DISC.
- Page 12 AVAILABLE ATTACHMENTS Visit www.plotmasters.com for a full list of Hunter Series attachments Turning Plow Reversible Tooth Point Page 12 of 22...
- Page 13 The turning tips also increase the down pressure on your Plotmaster forcing the discs deeper into your soil for increased tillage. The attachment fits into the rear 2”...
- Page 14 PLOTMASTER™ HUNTER 400 Recommended use: ATV---500CC or Larger---4 Wheel Drive Unit Includes: Unique Down Pressure System for the 1 point Hitch, Disc Harrow, Electric Versa Seeder, Linear Lift System (18 second retraction/extension), Cultipacker/Drag with Metal Grating. (Units can also be converted for use with Tractor 3 PT. Cat. 1) PT# H-PHC-101-08 Dimensions: ...
- Page 15 PLOTMASTER™ HUNTER 300 Recommended use: ATV---300CC or Larger ---4 Wheel Drive Unit Includes: Unique Down Pressure System for the 1 point Hitch, Disc Harrow, Electric Versa Seeder, Electric Lift System, Cultipacker/Drag with Metal Grating. (Units also available in 3 PT. Cat. 1) Dimensions: ...
- Page 16 The Hunter 300 recommended tractor size is 18 to 20 hp The hunter 400 recommended tractor size is 20 to 40 hp (Single 1 Point Hitch Model) REQUIRES THE ADDITION OF 3 PT CONVERSION CONNECTOR FOR USE WITH TRACTORS IF NEEDED PT# H-PHC-101-08 Page 16 of 22...
- Page 17 Helpful Planting Hints 1.) Do not fill Seeder Assembly with Seed prior to reaching the area you will be planting. Also, do not over-fill seeder beyond the recommendation. If you do the seed will become compacted around the brush and will stall your electric motor. (In case of compaction, open seed gate fully and then turn seeder motor on/off to relieve binding) 2.) If you will be planting small, similar or same size single species seeds (turnips,...
- Page 18 TWO SEASONS, TWO NUTRITIONAL NEEDS The whitetail’s nutritional needs can be divided into two parts and two needs –warm-season (spring-summer) protein need and cool-season (fall-winter) energy need. Happily, the needs of both bucks and does are virtually identical during both periods, but for different reasons. Warm-Season “Management”...
- Page 19 How to Calibrate Plotmaster™ Seeders To determine the seeding rate for any type seed when using the Plotmaster™ seeder, you need to know two things: a) seed coverage area and b) the amount of seed used to cover this area.
- Page 20 Hunter 300 Seed Chart Seed lbs per Acre Gate Setting Speed Alfa-Feast Alfalfa Buckbean Bucks and Bosses Chicory Clovers Cow Pea Lablab Lablab Plus Max Attract 50/50 Millet Monster Mix Oats Pea Patch Rye Grass Sorghum Soybean Sunflowers Ultra Forage Upland Game bird Wheat/Triticale NWGS...
- Page 21 Hunter 400 Seed Chart Seed lbs per Acre Gate Setting Speed Alfa-Feast Alfalfa Buckbean Bucks and Bosses Chicory Clovers Cow Pea Lablab Lablab Plus Max Attract 50/50 Millet Monster Mix Oats Pea Patch Rye Grass Sorghum Soybean Sunflowers Ultra Forage Upland Game bird Wheat/Triticale NWGS...
- Page 22 GIVE US YOU’RE FEEDBACK The Plotmaster™ can be found on the web at: www.plotmasters.com Email plotmastersystems@gmail.com Or Drop us a line at: Plotmaster™ Systems, LLC PO Box 111 Wrightsville, Ga. 31096 PLOTMASTER™ SYSTEMS, LLC PROVIDES A ONE-YEAR WARRANTY AGAINST MANUFACTURERS DEFECTS.
