Sanhua EEV SEC61 SERIES Quick Start Manual

SEC61X SERIES EEV CONTINUED
GENERAL SPECIFICATIONS
• ADVANCED PID ALGORITHM TO ENSURE ACCURATE AUTOMATIC ADJUSTMENT OF SUPERHEAT
• ALARM FEATURE FOR LOW AND HIGH SUPERHEAT
• EASY TO INSTALL; DIN RAIL OR SURFACE MOUNT
• MAXIMIZES SYSTEM EFFICIENCY WITH PRECISE SUPERHEAT CONTROL
• ALTERNATE USE AS AN ELECTRIC VALVE DRIVER
• OPERATES SANHUA LPF OR DPF(S03) SERIES EEVS
HOW TO VIDEO: SEC61X SERIES EEV
Click on the QR Code to access a How to Video on the SEC61X.
TECHNICAL LITERATURE: SEC61X SERIES EEV
Click on the QR Code to access a technical literature on the SEC61X.
TECHNICAL SUPPORT
For additional technical information and to learn more about
Sanhua's full product line, please visit:
sanhuausa.com
Technical information
https://www.sanhuausa.com/us/en/technical-info
WANT THE LATEST SANHUA NEWS?
FOLLOW US
QSG-SEC61X Controller-NA-0620
Sanhua©2020 All rights reserved. Subject to change without notice.
Sanhua©2020 All rights reserved. Subject to change without notice.
SEC61X SERIES EEV
QUICK START GUIDE

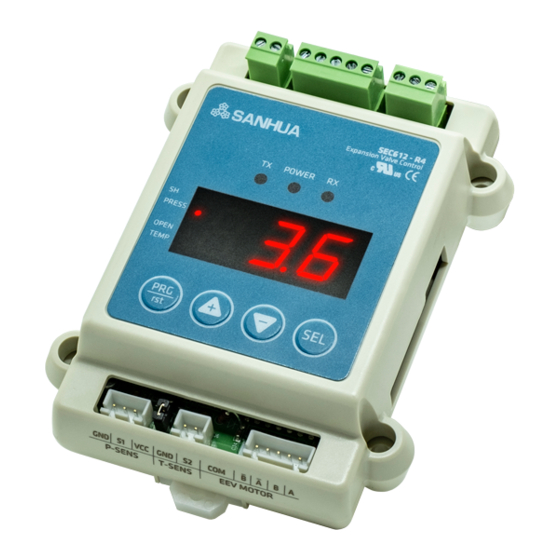

The Sanhua SEC61x Series controller is a standalone controller
for refrigeration and air conditioning systems. The controller
can be used to operate an electric expansion valve to control
superheat or discharge air temperature. It can also be used as
an electric valve driver (positioner) by accepting an external
signal from a main system controller.
How to Video on SEC61X
Technical Literature
QUICK START GUIDE:
1
SANHUA INTERNATIONAL
info@sanhuausa.com
SANHUAUSA.COM
Sanhua©2020 All rights reserved. Subject to change without notice.
12VAC/DC
15 VA
Pressure
Sensor
Temperature
Sensor
SEC61X SERIES EEV
DIN Slide Rail Mounting:
Mount the controller on the DIN rail by
the snap on the back of the controller.
Install in the electric control cabinet to
avoid moisture and dust.
EEV
