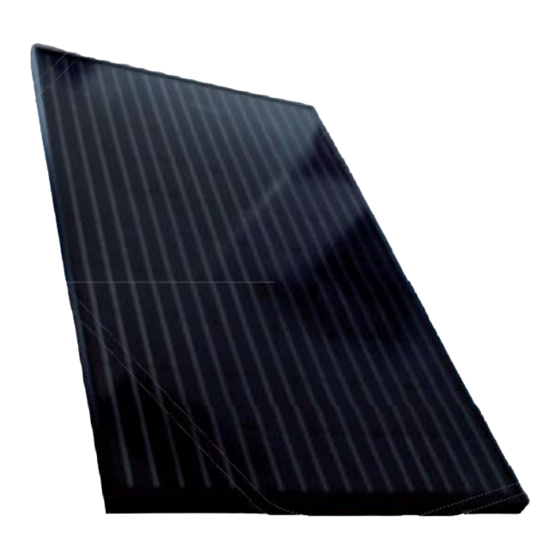

- Page 1 USER MANUAL PowerSlate Framed Mono Serie Dark Blue ™ Version 1.1 2010...
-
Page 2: Table Of Contents
Index of contents 1. Introduction 2. Basic safety instructions 3. Transport and storage 4. Installation options 5. Instructions for mounting 6. Maintenance and cleaning SOLUXTEC GmbH Page 2 of 10... -
Page 3: Introduction
This User Manual refers to the on-roof mounting, on flat-roof bracing and on shore installations with or without tracker. In case of divergence towards this user manual SOLUXTEC GmbH does not incur liability for personal damages or property damages, which arise because of improper utilization, maintenance or incorrect assembly of the photovoltaic module. -
Page 4: Basic Safety Instructions
Avoid any contact of the PV-element with metal parts. Pay attention to all warning notices and safety indication that are attached to the panel. The realized PV generator must not be perpetrated. SOLUXTEC GmbH Page 4 of 10... -
Page 5: Transport And Storage
61730: greater then 50Vdc; EN 61370: greater then 120Vdc); machines with dangerous performance, where you can expect an absolute accessibility (Modules, that are in this application class according to EN IEC 61730-1 and -2 qualified, you can assume that they fulfill safety class II) SOLUXTEC GmbH Page 5 of 10... -
Page 6: Installation Options
The solar modules can be installed vertically and horizontally. For installation you have to use a suitable mounting rack. SOLUXTEC approves the application of the mounting rack and the clamp from Schletter GmbH. The mounting system belongs to the Schletter Standart Serie, the exactly type designification of the rails are ,,Module Bearing Profile Solo 05‘‘... - Page 7 2400 Pa (Suction) and 2400 Pa (compression) into account. On installation site all respective snow and wind loads have to be considered and respected. In case of doubt please consult a stress analyst or rather an expert. SOLUXTEC GmbH Page 7 of 10...
- Page 8 For the wiring the use of a solar-single-wire cable which resists against Ozone, Weather & UV is required. The wire should also be free of halogen and should possess a double insulation. During the wiring please pay attention to the advices given from the cable manufacturer! SOLUXTEC GmbH Page 8 of 10...
- Page 9 All inverters have to respect the national and local grid-feeding standards including EMC regulations. It is requested to install on DC side a switch, which interrupts both poles of a string at the same time. The switch has to make sure the galvanic separation SOLUXTEC GmbH Page 9 of 10...
-
Page 10: Maintenance And Cleaning
Safety purchase of all fixings Cleanness, free of corrosion and safety connection of all cables connections Industriestrasse 28 B-4700 EUPEN T +32 (0)87 59 16 50 F +32 (0)87 59 16 55 E-mail: info@accubel.be Internet: www.accubel.be SOLUXTEC GmbH Page 10 of 10...
