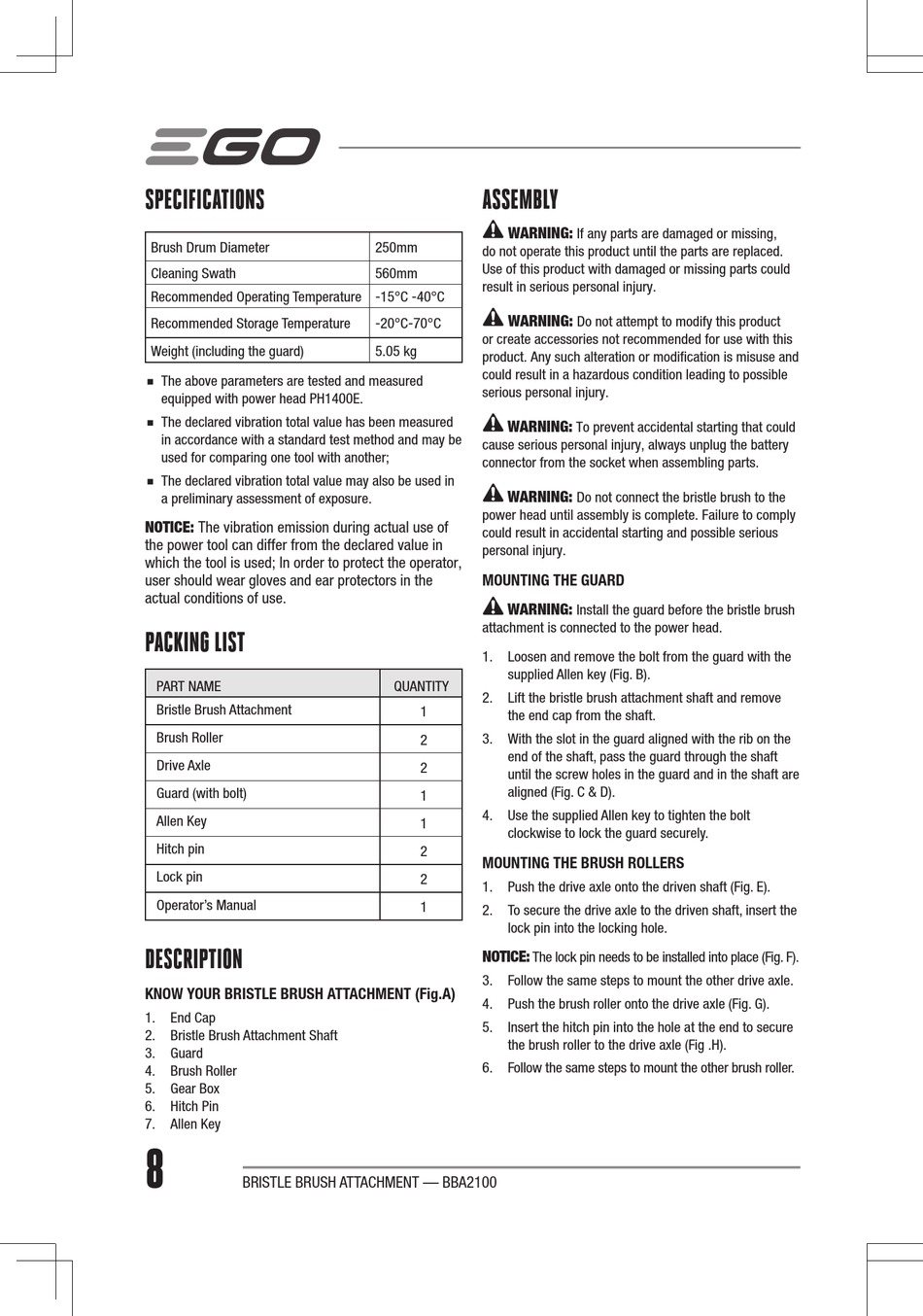

Specifications; Packing List - EGO POWER+ BBA2100 Operator's Manual

SPECIFICATIONS

Brush Drum Diameter
Cleaning Swath
Recommended Operating Temperature -15°C -40°C
Recommended Storage Temperature
Weight (including the guard)
◾
The above parameters are tested and measured
equipped with power head PH1400E.
◾
The declared vibration total value has been measured
in accordance with a standard test method and may be
used for comparing one tool with another;
◾
The declared vibration total value may also be used in
a preliminary assessment of exposure.
NOTICE: The vibration emission during actual use of
the power tool can differ from the declared value in
which the tool is used; In order to protect the operator,
user should wear gloves and ear protectors in the
actual conditions of use.

PACKING LIST

PART NAME
Bristle Brush Attachment
Brush Roller
Drive Axle
Guard (with bolt)
Allen Key
Hitch pin
Lock pin
Operator's Manual
DESCRIPTION
KNOW YOUR BRISTLE BRUSH ATTACHMENT (Fig.A)
1. End Cap
2. Bristle Brush Attachment Shaft
3. Guard
4. Brush Roller
5. Gear Box
6. Hitch Pin
7. Allen Key
8
BRISTLE BRUSH ATTACHMENT — BBA2100
ASSEMBLY
WARNING:
250mm
do not operate this product until the parts are replaced.
Use of this product with damaged or missing parts could
560mm
result in serious personal injury.
WARNING:
-20°C-70°C
or create accessories not recommended for use with this
5.05 kg
product. Any such alteration or modification is misuse and
could result in a hazardous condition leading to possible
serious personal injury.
WARNING:
cause serious personal injury, always unplug the battery
connector from the socket when assembling parts.
WARNING:
power head until assembly is complete. Failure to comply
could result in accidental starting and possible serious
personal injury.
MOUNTING THE GUARD
WARNING:
attachment is connected to the power head.
1. Loosen and remove the bolt from the guard with the
supplied Allen key (Fig. B).
QUANTITY
2. Lift the bristle brush attachment shaft and remove
1
the end cap from the shaft.
3. With the slot in the guard aligned with the rib on the
2
end of the shaft, pass the guard through the shaft
2
until the screw holes in the guard and in the shaft are
aligned (Fig. C & D).
1
4. Use the supplied Allen key to tighten the bolt
1
clockwise to lock the guard securely.
2
MOUNTING THE BRUSH ROLLERS
2
1. Push the drive axle onto the driven shaft (Fig. E).
1
2. To secure the drive axle to the driven shaft, insert the
lock pin into the locking hole.
NOTICE:
The lock pin needs to be installed into place (Fig. F).
3. Follow the same steps to mount the other drive axle.
4. Push the brush roller onto the drive axle (Fig. G).
5. Insert the hitch pin into the hole at the end to secure
the brush roller to the drive axle (Fig .H).
6. Follow the same steps to mount the other brush roller.
If any parts are damaged or missing,
Do not attempt to modify this product
To prevent accidental starting that could
Do not connect the bristle brush to the
Install the guard before the bristle brush
