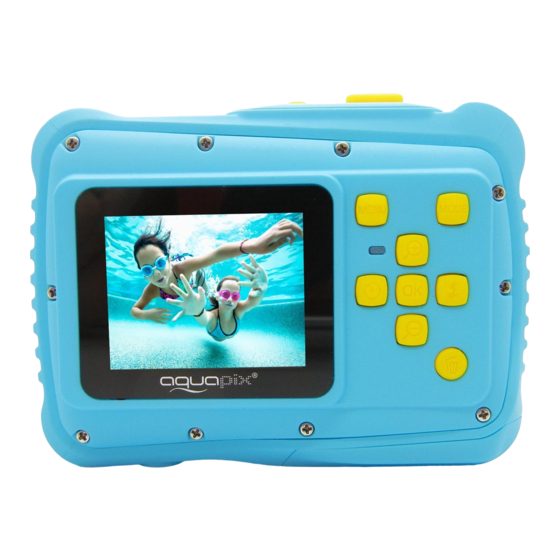

AquaPix W520 Surf Quick Start Manual
  1. Manuals
  2. Brands
  3. AquaPix Manuals
  4. Digital Camera
  5. W520 Surf
  6. Quick start manual

AquaPix W520 Surf Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
P R O D U C T S P E C IF IC A T IO N
Still Image Resolution: [12M] 4000x3000/
•
[8M] 32642x2448/ [5M] 2592x1944/[2M] 1600x1200
Video Clip Resolution: [HD] 1280 x 720 /
•
[640] 640 x 480
File Formats: JPEG/AVI
•
Supports micro SD Memory Slot up to 32GB
•
4 x Digital Zoom
•
USB 2.0 User Interface
•
Waterproof up to 3m
•
Power Source: 2 x AAA Batteries
•

Advertisement

loading
Need help?

Need help?

Do you have a question about the W520 Surf and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AquaPix W520 Surf

Summary of Contents for AquaPix W520 Surf

  • Page 1 P R O D U C T S P E C IF IC A T IO N Still Image Resolution: [12M] 4000x3000/ • [8M] 32642x2448/ [5M] 2592x1944/[2M] 1600x1200 Video Clip Resolution: [HD] 1280 x 720 / • [640] 640 x 480 File Formats: JPEG/AVI •...
  • Page 2 Works with Microsoft Windows XP, Vista, Windows 7 • Works with Mac OSX10.3 and above • Storage/Operation Temperature: 5°C to 40°C • G E T T IN G T O K N O W Y O U R C A M E R A D E V IC E O V E R V IE W ON/OFF button Flash Light...
  • Page 3 UP/Zoom In Button Busy indicator Right/Flash Button Display Screen OK Button Battery inner door/ Battery compartment Delete Button USB Slot Left/self-timer button Micro SD Card Slot Down/Zoom out button Tripod Connector Battery door...
  • Page 5 IN S T A L L IN G T H E B A T T E R Y Open the camera battery door by pushing the switch and release the cover at the same time. Insert 2 x AAA batteries as shown, ensuring the +/- symbols on the batteries are matching +/- symbols on the camera.
  • Page 6 IN S T A L L IN G T H E M IC R O S D C A R D The camera has no internal memory, to be able to take images and video clips you will need to insert a memory card.
  • Page 7 T U R N IN G Y O U R C A M E R A O N To turn the camera on: 1. To turn on the camera, press the Power button, press the power button again to turn the unit off. NOTE: The camera will automatically turn itself off after a period of inactivity to save power.
  • Page 8 C A M E R A M O D E S The camera has 3 different types of modes Capture mode, Video mode and Playback mode. Press the Mode button to select between all the modes. Display Title Description Capture mode For taking still photos Video mode For recording movie clips...
  • Page 9 4000x3000 3264x2448 2592x1944 1280x960 1600x1200 640x480 3264x2448 2592x1944 2048x1536 1280×960 640×480 2. Use the LCD screen to view your subject. 3. Use the “Zoom and Zoom Out” buttons to zoom in and out on your subject. The value of magnification level appears on the screen.
  • Page 10 V ID E O M O D E T A K IN G A V ID E O C L IP The Digital Camera allows you to take video clips without sounds. To take video clips: Press the Mode button to set the camera to video mode, the icon appears on the LCD screen.
  • Page 11 Use the LCD screen to view your subject. Use the “Zoom In and Zoom Out” buttons to zoom in and out on your subject. The value of magnification level appears on the screen. Press the Shutter button to start recording. While recording the top right of the screen will display how long it has been recording for.
  • Page 12 Press the MODE button to set the camera to playback mode, the icon appears on the LCD screen. The screen will look like below: The Screen will now display the files that have been saved. - when the bottom left of the screen displaying the icon , it means the file is a video, while there is nothing, it is a image.
  • Page 13 NOTE Before using your camera in the water please verify that all lids and locks are tightly closed and sealed. After using the camera in water please let it dry. The camera should not be exposed to high temperatures and humidity differences to avoid condensation behind the lens.

  • Page 14: Declaration Of Conformity

    DECLARATION OF CONFORMITY easypix herebly declares that the product W520 is in conformity to all the essential requirements of Directive 1999/5/EC. The declaration of conformity can be downloaded here: http://www.easypix.info/download/pdf/doc_w520.pdf For technical help please visit our support area on www.easypix.eu. Only EU...
