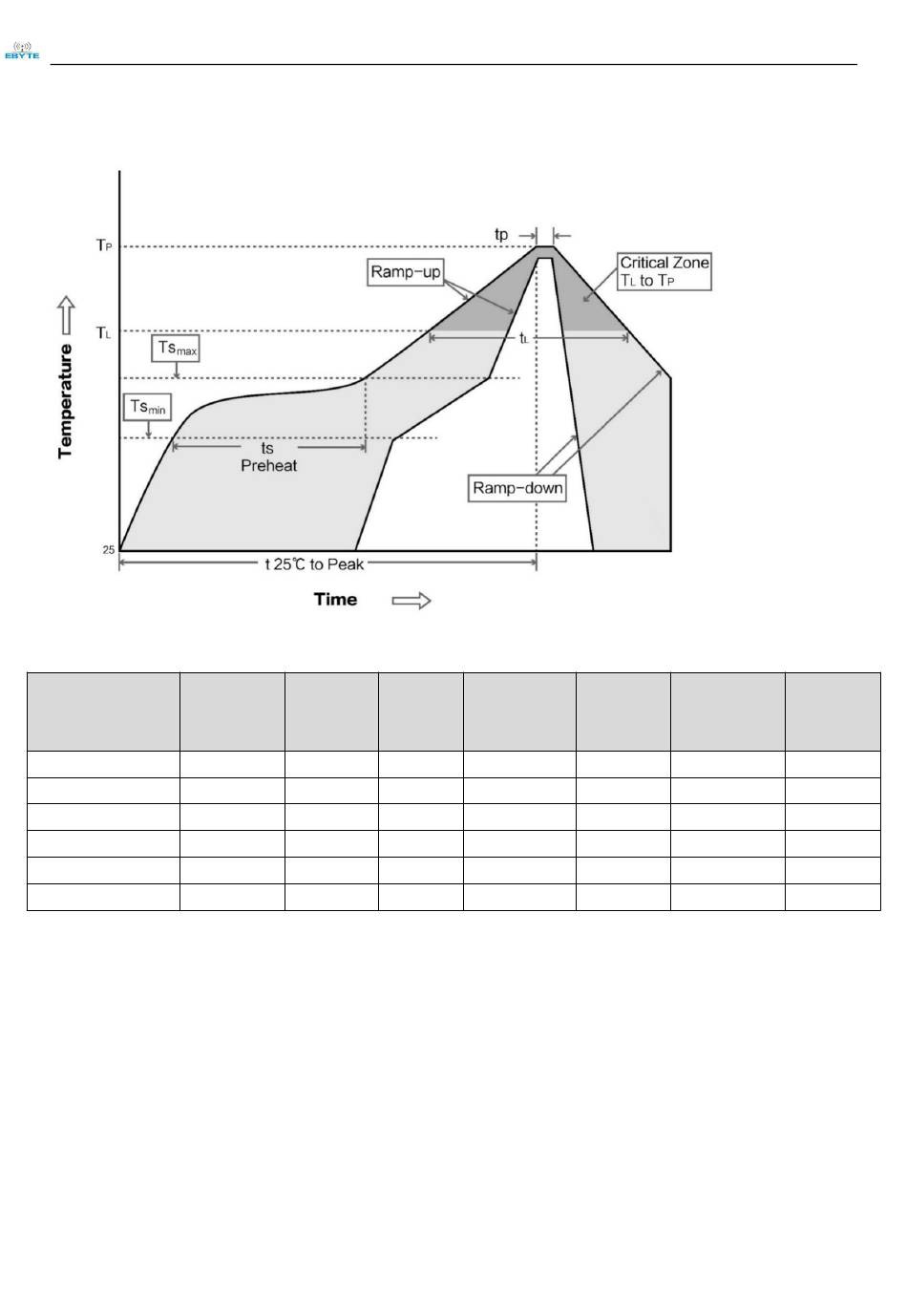

6.2 Reflow Soldering Curve

7. Related Model

Model
E73-2G4M04S1A nRF52810
E73-2G4M04S1AX nRF52810
E73-2G4M04S1B nRF52832
E73-2G4M04S1BX nRF52832
E73-2G4M08S1C nRF52840
E73-2G4M04S1D nRF51822

8. Antenna Type

8.1 Antenna recommendation

The antenna plays an important role in the communication process. The inferior antenna often has a great impact on the
communication system. Therefore, we recommend some antennas that support our wireless modules and have excellent
performance and reasonable price.
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co.,Ltd.
Frequency
Chip
Hz
2.4G
2.4G
2.4G
2.4G
2.4G
2.4G
TX
power Proyocol
dBm
4 BLE 4.2/5.0
4 BLE 4.2/5.0
4 BLE 4.2/5.0
4 BLE 4.2/5.0
8 BLE 4.2/5.0
4 BLE 4.2
E73-2G4M04S1AX User manual
Size
Package
mm
17.5*28.7 SMD
17.5*23.5 SMD
17.5*28.7 SMD
17.5*23.5 SMD
13*18 SMD
17.5*28.7 SMD
Antenna
Type
PCB/IPX
IPX
PCB/IPX
IPX
Ceramic
PCB/IPX
