Mounting the TV on a wall

If you mount this TV on the wall, follow the instructions exactly as set out by the manufacturer.
Incomplete or improper installation may cause injury to you, and/or damage to the LED TV.
When you have appropriate wall mount brackets, please install them by using the VESA screws
included in TV PE bag.
Install Steps

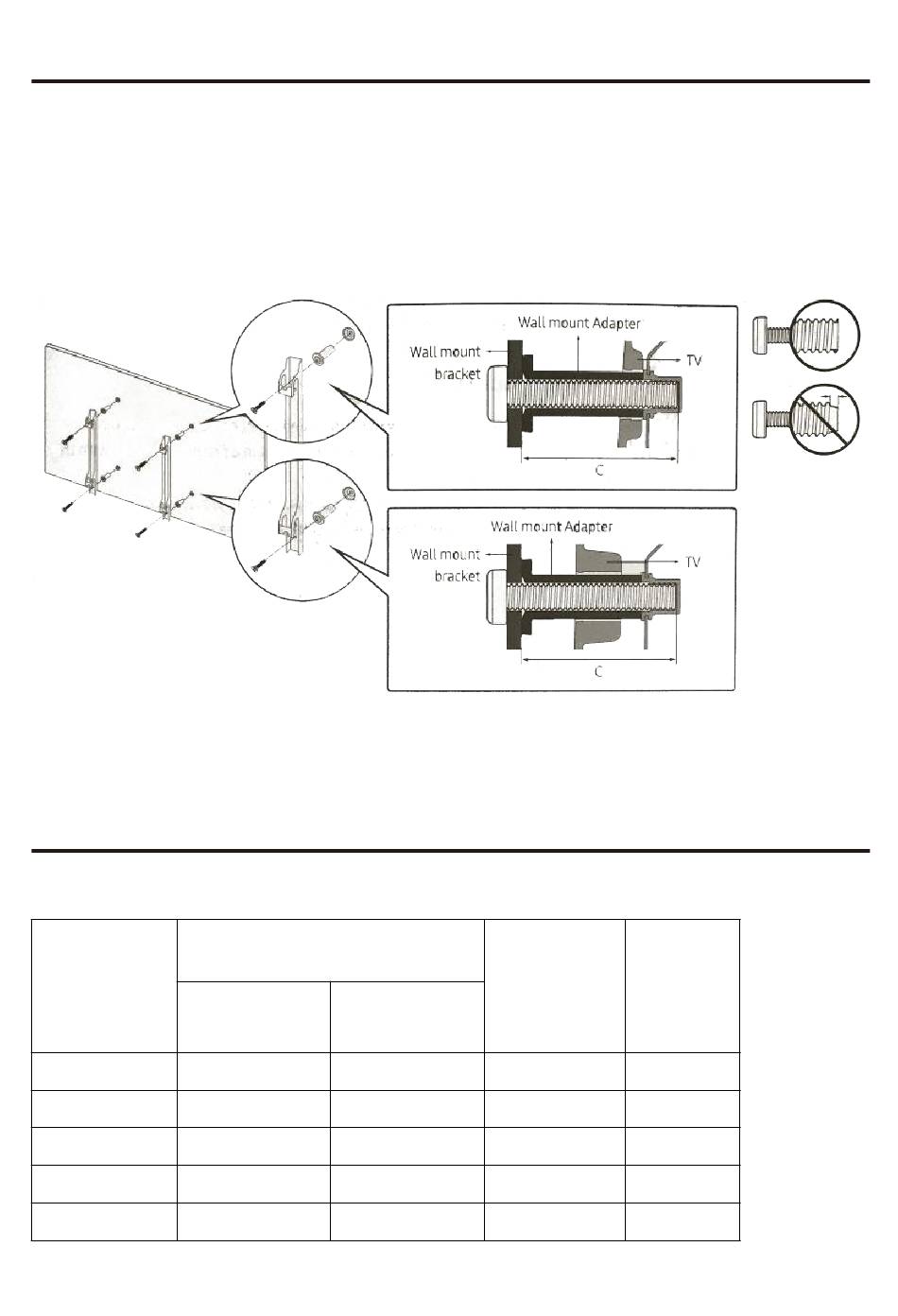

1.Assemble the wall mount adapter.
2.Install the wall mount adapter on a wall with screws.
3.Install the wall mount brackets onto rear cabinet with the VESA screws.
4.Buckle the brackets with TV into the wall mount adapter.
Please refer to the table below to ensure the correct size VESA mount is used with the TV.
TV size in
inches
19-28
3 2
39-55
65
75
VESA screw hole specs
Width Height
mm
100
200
200
400
600
Screw Size
mm
100 M4
100 M6
200 M6
400 M6
400 M8
4
Quantity
4
4
4
4
4
