Summary of Contents for Connex CX24A19

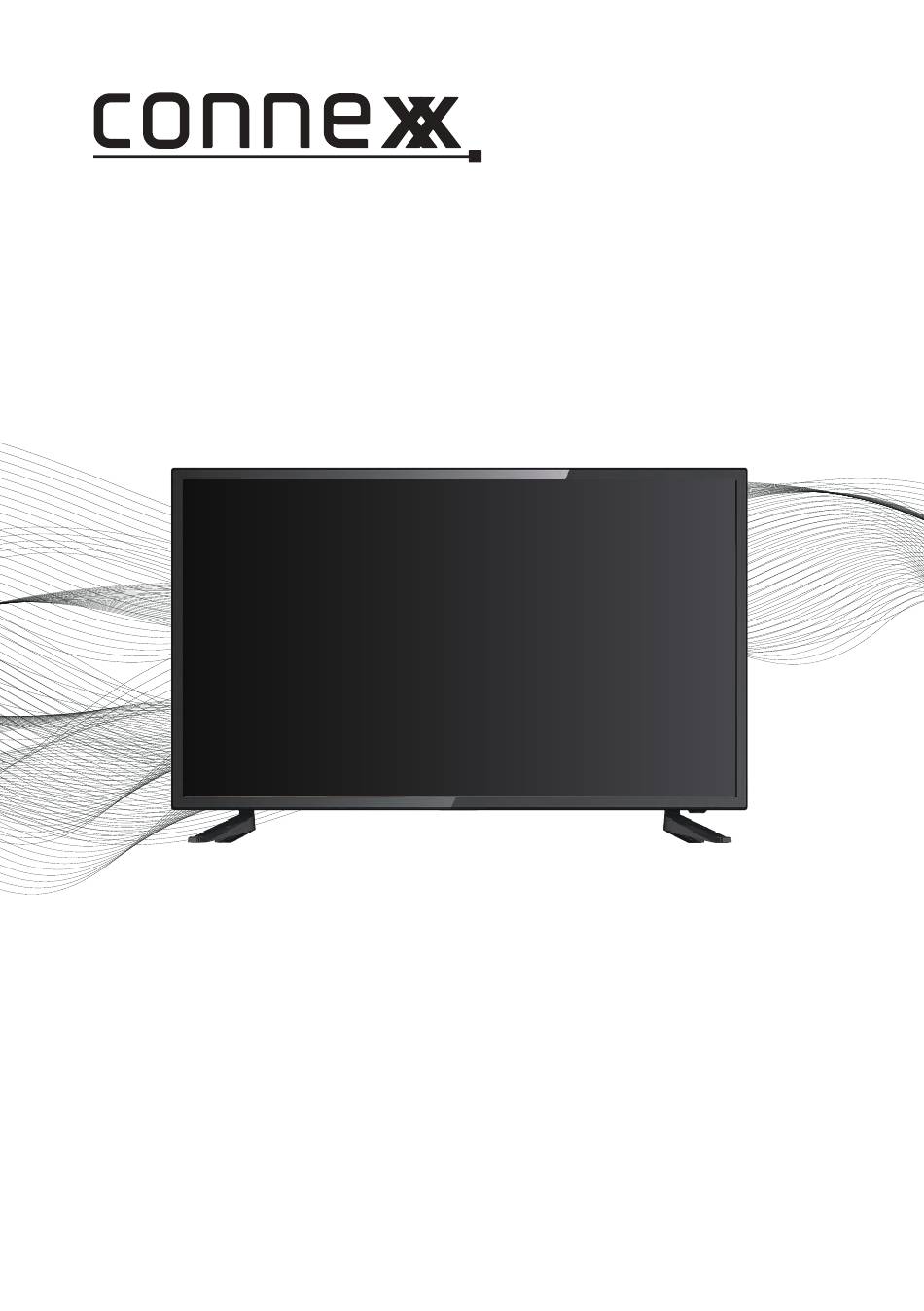

- Page 1 HD LED TV Model：CX24A19 Instruction Manual...
-
Page 2: Table Of Contents
Contents Important Safety Instructions ............... . About Your TV . -
Page 3: Important Safety Instructions
Important Safety Instructions... - Page 4 Important Safety Instructions gently...
-
Page 5: About Your Tv
About Your TV Specifications Includes • Model: CX24A19 • Remote control and 2 AAA batteries • Screen Size: 24” • Base stand • Panel Resolution: 1366*768 • Instruction Manual • Viewing Angle: 176(H)*176(V) • Aspect Ratio: 16:9 • USB Port: Supports JPEG image/MP3 audio/ MPEG1, 2 &... -
Page 6: Mounting The Tv On A Wall
Mounting the TV on a wall If you mount this TV on the wall, follow the instructions exactly as set out by the manufacturer. Incomplete or improper installation may cause injury to you, and/or damage to the LED TV. When you have appropriate wall mount brackets, please install them by using the VESA screws included in TV PE bag. -
Page 7: Orientation
Orientation TV Controls INPUT Press to select the input source MENU Press to enter the main menu VOL+ Press to increase the volume VOL- Press to decrease the volume Press to skip to the next channel Press to skip to the previous channel... - Page 8 Orientation Inputs Headphone Jack: Headphone output jack. Optical Out: Connects to the Optical Audio in port of an audio device. Audio Input Jack: Connects to the COMPOSITE AUDIO OUT ports of an audio device. Video Input Jack: Connects to the COMPOSITE VIDEO OUT ports of an audio device. Y/Pb/Pr: Connect to the COMPONENT VIDEO OUT ports of an audio device.
-
Page 9: Remote
Orientation Remote ENTER During playback, press to select the previous track/chapter. During playback, press to select the next track/chapter. Switch to the previous display. Move to the next display. Jump to a specific time on a DVD/ VCD/MP3/WMA or CD. Press to start the A-B repeat function. -
Page 10: Main Menu Operation Setup Wizard
Main Menu Operation Setup Wizard Connect RF cable to your TV Aerial socket. TV Location Set the TV Mode to Home or Retail display use. Press ◄ / ► button to select(Home / Store). Press button to select and press ENTER/► button to enter the sub-menu. Note: This page is only enable when you have Energy Star request. - Page 11 Main Menu Operation Setup Wizard Select Time Press button to select the time zone, daylight saving time and time format you want. Press ◄ / ► button on the remote control to adjust. Press button on the remote control to select and press ENTER/► button to enter the sub-menu. Auto Scan Press ◄...
-
Page 12: Setup Menu
Setup Menu Press ENU to enter the main menu,Press ◄ / ► button to select. Press to enter. ENTER / ▼ Press ENU again to exit or back to parent menu. Press ▼ / ▲ button to select among Menu Language / Transparent / OSD Timeout / Closed Caption /Over Scan/ Input Label / Other settings / Restore Default / Setup Wizard/Voice Guidance/Video Description. -
Page 13: Picture Menu
Picture Menu Press ENU to enter the main menu,Press ◄ / ► button to select. Press to enter. ENTER / Press ENU again to exit or back to parent menu. Press button to select among Picture Mode /Brightness/ Contrast / Color / Tint / Sharpness / Color Temperature/ Advanced Settings. -
Page 14: Sound Menu
Sound Menu Press ENU to enter the main menu,Press ◄ / ► button to select. Press to enter. ENTER / ▼ Press ENU again to exit or back to parent menu. Press ▼ / ▲ button to select among Sound Mode/Treble / Bass / Balance /MTS/ Audio Language /Digital Audio Output/ Surround Sound/AVL. -
Page 15: Time Menu
Time Menu Press ENU to enter the main menu,Press ◄ / ► button to select. Press to enter. ENTER / ▼ Press ENU again to exit or back to parent menu. Press ▼ / ▲ button to select among Sleep Timer / Time Zone / Daylight Saving Time / Time Format / Auto Clock / Clock. Press to enter. -
Page 16: Lock Menu
Lock Menu Press ENU to enter the main menu,Press ◄ / ► button to select. Press to enter. ENTER / ▼ Press ENU again to exit or back to parent menu. Press ▼ / ▲ button to select among Change Password/Key Lock / System Lock / Input Block / US Rating / Canada Rating / RRT Setting / Reset RRT. -
Page 17: Channel Menu
Channel Menu Press ENU to enter the main menu,Press ◄ / ► button to select. Press to enter. ENTER / Press ENU again to exit or back to parent menu. Press button to select among Air/Cable / Auto Scan / Favorite/Channel List / Show/Hide / Channel Number / Channel Label . Press to enter. -
Page 18: Media Menu
Media Menu Note: Before operating Media menu,Plug in USB device, then press INPUT button to set the Input Source to Media . Press ◄ / ► button to select Media in the Source menu, then press Enter button to enter. Press ◄... - Page 19 Media Menu Press ◄ / ► button to select PHOTO in the main menu, then press Enter button to enter. Press Menu button to return back to the previous menu and exit menu to quit. Press ◄ / ► button to select drive disk you want to watch, then press Enter button to enter. Press ◄...
- Page 20 Media Menu Press ◄ / ► button to select MUSIC in the main menu, then press Enter button to enter. Press Menu button to return back to the previous menu and exit menu to quit. Press ◄ / ► button to select drive disk you want to watch, then press Enter button to enter. Press ◄...
-
Page 21: Trouble Shooting
Trouble Shooting Problem Solution/Issue Make sure the power cord is plugged in. TV does not Try another AC outlet. operate Unplug unit for an hour, then plug it back in. Check the volume settings. Normal picture, but Sound muted? Press MUTE button. no sound Try another channel. -
Page 22: Customer Support Warranty
Customer Support Warranty Limited 1 Year Warranty The Manufacturer warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of 1 year for parts and 90 days for labor from the original date of purchase. - Page 23 River Park Inc. 21953 Protecta Drive | Elkhart, IN 46516 http://www.riverparkinc.com U.S.(800) 442-7717 International(574) 522-7781...
