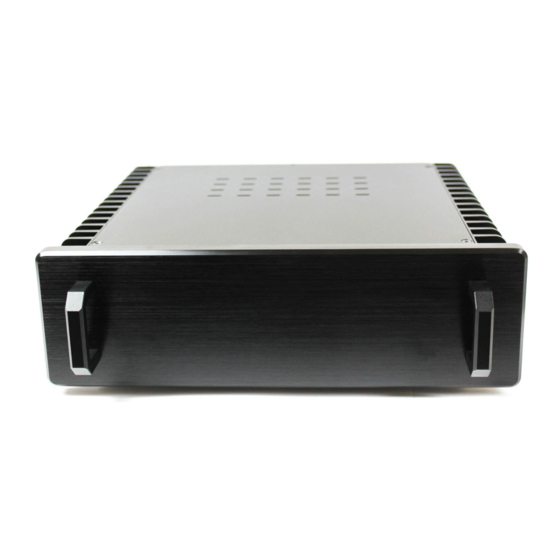

HDPLEX H3 V3 Series Fanless PC Chassis
Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the H3 V3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for HDPlex H3 V3 Series

Summary of Contents for HDPlex H3 V3 Series

  • Page 1 HDPLEX H3 V3 Series Fanless PC Chassis Installation Guide...
  • Page 2 Paypal/Rü ckerstattung zu Ihrem Auftrag. Offre de remboursement HDPLEX Recevez 20 dollars US pour tout achat d'un boitier HDPLEX. Pour bé né ficier de cette offre, rien de plus simple: prenez deux ou trois photos de votre installation HDPLEX accompagné es de vos commentaires ou suggestions (dans la langue de votre choix) puis postez-les sur un blog, sur Facebook, ou sur n'importe quel forum.

  • Page 3: Package Contents

    Package Contents H3 V3 Chassis Top Plate Bottom Plate Left Side Panel Right Side Panel Backplate Faceplate (Brushed Silver/Black) Four Aluminum Feet with cushion Front Handle H3 V3 Installation Kit List: A: M3*6 Screw w/cushion 16pcs B: HEX Socket Cap Head M5*8mm/12mm 8/4pcs M4*14mm 4pcs C: M4*6mm Flat Head HEX Screw-Black 16pcs D: M3*8mm Round Head Screw 8pcs E: M3*5mm Flat head screw 10pcs...
  • Page 4 Power Button with Cable, USB 3.1 Type C Internal Cable, 3.5mm Audio Cable AC and DC Adapter Plate for 7.4*5.0mm self-lock DC jack and IEC C14 Connector HDPLEX H5 Fanless CPU Heatsink System for HDPLEX H3 V3 H-1: M3*4mm Silver Screw 4pcs...
  • Page 5 CPU Heatsink System Installation Install four feet with rubber cushion to the bottom plate via 4pcs M4*6 HEX screw C. Install 7mm copper stud on the bottom plate motherboard installation position. Use M3 nut to lock the copper stud from the back. Install power button, USB 3.1 Type C internal cable, and front panel audio cable to the left side plate.
  • Page 6 Remove the protection cover from the copper base plate and install two rack on the copper bottom plate using 4pcs Install the holder on to the tip of the two racks. Please make sure the direction of part is correct. Install 4pcs into the holder.
  • Page 7 For the latest AM4 Ryzen socket, see below for correct rack installation position. Remove motherboard AMD socket mounting rack, keep the bottom plate on the back of the motherboard. Install the copper heatsink block using 4 Apply thermal paste to the heatpipe groove on both side panels using the dumbbell shaped tool.
  • Page 8 Warning: Do not over apply thermal paste as it will decrease heat transfer efficiency. Install heatpipe 1 and 2. Install heatpipe 3 and 4.
  • Page 9 Install heatpipe 5 and 6. Install heatpipe 7 and 8. Tighten the to the side panel using which goes through the hole on the side panel from outside of the H5 chassis. square shape and needs to be in the correct direction to match the mounting hole. Usually only 3pcs are needed to fully lock the heatpipes on the side panel.

  • Page 10: Power Supply Installation

    8pcs H-2. Power Supply Installation HDPLEX 200W AC-DC Adapter +HDPLEX 200W DC-ATX converter For ITX motherboard, install the 200W AC-DC on the bottom plate. For microATX motherboard, install 200W AC on the aluminum adapter plate using 4pcs M3*4 screws.
  • Page 11 HDPLEX 400W AC-DC Adapter +HDPLEX 400W DC-ATX converter For ITX motherboard, install the 400W DC-ATX on the bottom plate first and install the 400W AC-DC on the faceplate using 4pcs M3x4mm screws. The 400W DC-ATX output connector will not be blocked by the 400W AC-DC if installed correctly as below.
  • Page 12 For microATX (especially full size microATX), install the 400W DC-ATX on the H3 V3 faceplate and install 400W AC-DC with aluminum adapter plate on the side heatsink panel. H3 HDD Rack and SSD Installation H3 HDD rack has three SSD installation positions. Use flat head silver M3*6 screw to install SSD to the rack.
  • Page 13 Install HDD rack to H3 V3 two side heatsink panel using 3pcs G. H3 V3 series has two HDD rack installation positions. HDD Rack with 3.5” HDD can only be installed on the front position. For a few microATX motherboards with CPU heatsink very close to the front, CPU heatsink system aluminum top might conflict with 3.5”...

  • Page 14: Faceplate Installation

    Back Plate and PCIE Card Installation H3 V3 chassis has three expansion slots on the back plate. The two vertical slots support two low-profile expansion cards or one dual slot low-profile card. Install AC adapter plate using 4pcs A from internal side of backplate, DC adapter plate (if use external AC source), motherboard I/O shield, PCI cover bracket to the H3 V3 backplate first.
  • Page 15 To install optional handle. First use 4pcs Hex Socket Cap Head M4*14mm install the front handle from the back of the faceplate. Then use 4pcs Hex Socket Cap Head M5*8mm to mount the faceplate onto two side heatsink panel mounting ear from the back. Use M5 HEX key Allen wrench to tighten it. Test PC thoroughly and make sure heatsink system functions well.
  • Page 16 For suggestions and advice on HDPLEX fanless chassis, please visit our community at https://www.hdplex.com/forum Copyright 2019-2020 HDPLEX LTD. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited.
