Attaching A Base - Samsung SyncMaster 633NW User Manual

Using the Stand
Folding the base
Note

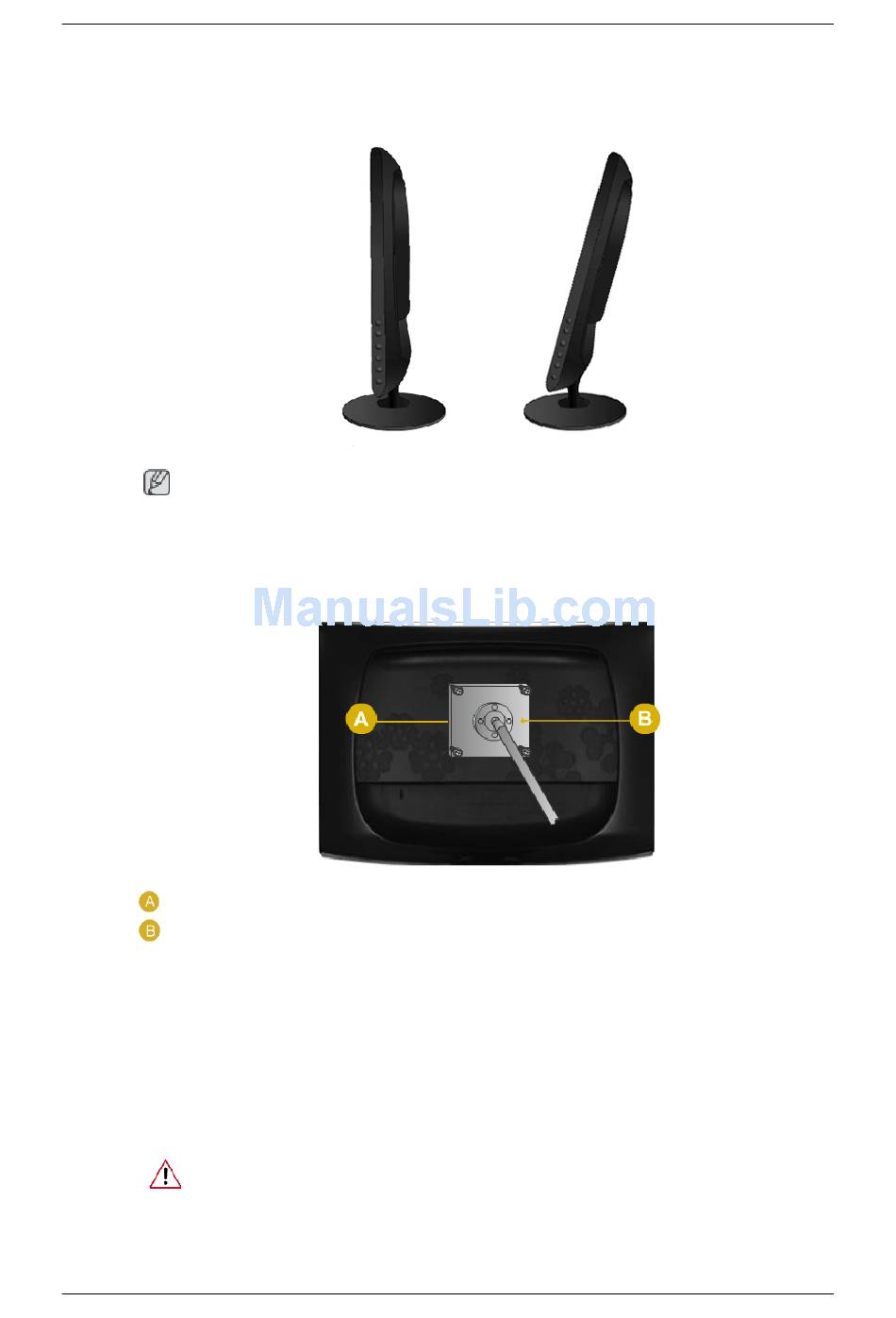

You can tilt the monitor upwards at an angle of 0° to 18°.

Attaching a Base

This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.
A. Monitor
B. Mounting interface pad (Sold separately)
1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the
screen.
3. Remove four screws and then remove the stand from the LCD monitor.
4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure
it with four screws that came with the arm-type base, wall mount hanger or other base.
• Do not use screws longer than the standard dimension, as they may dam-
age the inside of the Monitor.
• For wall mounts that do not comply with VESA standard screw specifica-
tions, the length of the screws may differ depending on their specifications.
