Summary of Contents for Samsung SyncMaster 242MP

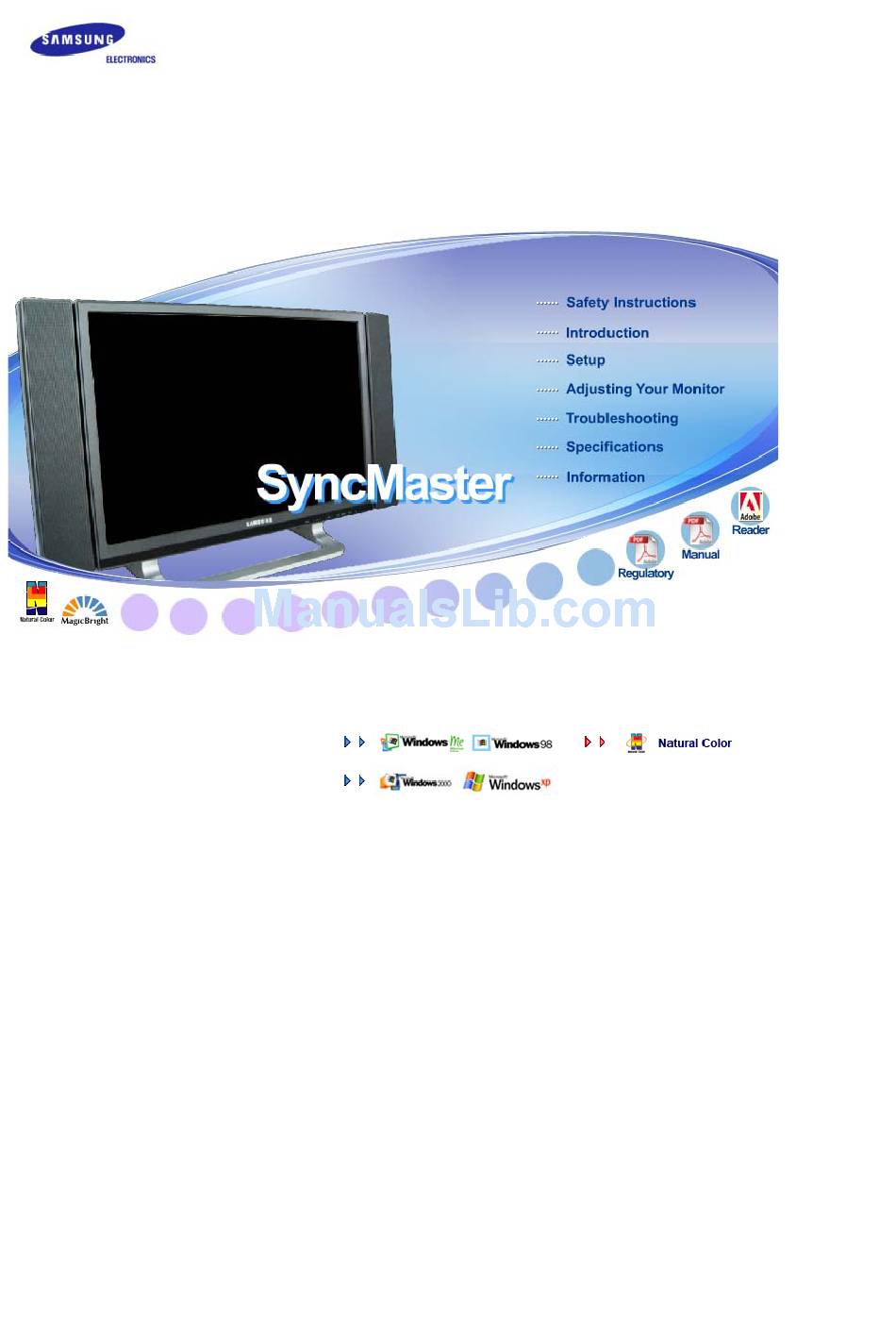

  • Page 1 SyncMaster 242MP Install Drivers Install Programs...
  • Page 2 Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Do not disassemble Do not touch Power When not used for an extended period of time, set your computer to DPMS. If using a screen saver, set it to the active screen mode.

  • Page 3: Installation

    24 hours such as the airport, the train station or etc. Failure to do so may cause a serious damage to your monitor.
  • Page 4 A knocked-over antenna may cause injury or an electric shock. Clean When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a slightly moistened, soft fabric.
  • Page 5 This may cause damage, electric shock or fire. Use the recommended detergent with a smooth cloth. If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth. A dirty connector may cause an electric shock or fire.
  • Page 6 Failure to do so may cause an electric shock or fire. Do not try to move the monitor by pulling only the wire or the signal cable. This may cause a breakdown, electric shock or fire due to damage to the cable.
  • Page 7 Watching the monitor continuously at a too close angle may result in eyesight damage. To ease eye strain, take at least a five-minute break after every hour of using the monitor. Do not use the monitor where it may be exposed to strong vibrations.
  • Page 8 This may cause a battery to break or leak and could lead to fire, injury, or contamination (damage). The battery (and rechargeable battery) are not ordinary refuse and must be returned for recycling purposes. The customer is responsible for returning the used or rechargeable battery for recycling purposes as the consumer of the battery.
  • Page 9 Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Monitor Manual Warranty Card User's Guide, Monitor Driver, Quick Setup Guide (Not available in all locations)
  • Page 10 D-Sub Cable Power Cord Radio Antenna Audio Cable DVI Cable Others Remote Control Batteries (AAA X 2) Connector Side cover Speaker(Option) Speaker Speaker-cover Speaker-Stand Speaker Brackets Screws Use only for the mounting type Speaker-Audio cable (Black 4EA, Silver 4EA) installation.
  • Page 11 Speaker-Side cover Front 1. MENU Use this button to open the on-screen menu and exit from the menu screen or close screen adjustment menu. Moves from one menu item to another vertically or adjusts selected menu values. In TV mode, selects TV channels.
  • Page 12 PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed or when left unattended for long periods. Rear Remove the rear monitor cover before connecting to an external device.
  • Page 13 6. POWER External device terminal - Scart is mainly used in Europe. As for EXT(RGB) port of the Monitor, it makes TV or Video signal input and output. 1. External device sound input terminal 2. External device (video) input terminal 3.
  • Page 14 Connecting the Monitor Remote Control The performance of the remote control may be affected by a TV or other electronic device operated near the monitor, causing malfunction due to interference with frequency. 1. POWER Use this button to turn the monitor on and off.
  • Page 15 2. Number button Selects TV channels in the TV mode. You may use this button in PIP mode as well. 3. +100 Press to select channels over 100. For example, to select channel 121, press "+100", then press "2" and "1".
  • Page 16 Push the PIP button to turn PIP screen On/Off. 20. S.MODE ( Sound Mode ) When you press this button, current mode is displayed on the lower center of the screen. The Monitor has a built-in high fidelity stereo amplifier.

  • Page 17: Connecting The Monitor

    When it is connected, replace the cover. 1. Connecting to a Computer Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.

  • Page 18: Connecting To Other Devices

    (You don't need to install any separate speakers for your computer.) You may get a blank screen depending on the type of video card you are using, if you connect simultaneously both the D-sub and DVI cables to one computer.
  • Page 19 S-Video cable. S-Video, RCA cable and EXT(RGB) cable are optional. 2. Connect the Audio (R) and Audio (L) terminals of a DVD, VCR or Camcorders to the monitor's R and L audio input terminals using audio cables.
  • Page 20 1. Connect the CATV or antenna coaxial cable to the Antenna terminal on the rear of the monitor. You need to use a coaxial antenna cable. When using an interior antenna terminal: Check the antenna terminal on the wall first and connect the antenna cable.
  • Page 21 1. Connect the Audio (R) and Audio (L) outputs on the DVD / DTV set top box to the Audio (R) and Audio (L) inputs on the monitor using audio cables. 2. Connect a video cable between the component( P jacks on the DVD / DTV set top box.
  • Page 22 A. When installing the speaker into the mains Be sure to hold the LCD set instead of the speakers when moving the LCD set with the speakers attached. (Otherwise may damage the brackets connecting the speakers.) Detach side covers from both sides of the LCD set.
  • Page 23 B. When separating the speaker from the mains Secure the Speaker Covers by setting them into the holes located on the front side of the speakers. Make sure the arrow inside the cover points upward Secure the Speaker Covers by setting them...

  • Page 24: Using The Stand

    2. Connect the cable in the way the rear terminal of the speaker fits into the rear R-SPEAKER-L terminal of the mains. Using the Stand This monitor supports various types of VESA-standard bases. You need to either fold or remove the base in use in order to install a VESA base.
  • Page 25 1. Turn off your monitor and unplug its power cord. 2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen. 3. Remove four screws and then remove the Stand from the LCD monitor.

  • Page 26: Installing The Monitor Driver

    Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/...
  • Page 27 3. Choose your monitor model in the model list, then click the "OK" button. 4. Choose your monitor model in the model list, then click the "OK" button. 5. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button.
  • Page 28 Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/...
  • Page 29 5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button. 6. Select "Don't search ,I will.." then click "Next" and then click "Have disk". 7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next" button.
  • Page 30 5. Click "Driver" and then click on "Update Driver.." then click on the "Next" button. 6. Choose "Display a list of the known drivers for this device so that I can choose a specific driver" then click "Next" and then click "Have disk".

  • Page 31: Microsoft ® Windows ® Millennium Operating System

    3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and then click OK. 4. Click Apply button if you see the screen working normally after clicking Test. If the screen is not normal, change to a different mode (lower mode of resolution, colors or frequency).
  • Page 32 One of the recent problems in using a computer is that the color of the images printed out by a printer or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor.
  • Page 33 Available Mode : PC / DVI Description Source List Use to select PC, TV or other external input source connected to the Monitor. Use to select the screen of your choice. The direct button on the remote control is 'SOURCE' button.
  • Page 34 5) Component Picture PC / DVI Mode When you input video signal into DVI, MENU is changed to TV / AV / S-Video / Component Mode. Available Mode : PC / DVI in Size, Position and Transparency will not be...
  • Page 35 If this is the case, adjust the Brightness and Contrast by using the OSD menu. You can use the on-screen menus to change the contrast and brightness Custom according to personal preference.

  • Page 36: Auto Adjustment

    - Available in PC Mode Only 1) Coarse : Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may relocate it to the center using the Horizontal Control menu. 2) Fine : Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).
  • Page 37 Automatically adjusts to the display screen. Can improve the skin tones. Intelligent - Displays natural colors even sharper. Full - Displays both natural skin tones and colors even sharper. Demo - Displays the improved image on the left and the original on the right. 2) Color Tone : Adjusts color tones to the preference of the user.
  • Page 38 Auto Reduces the differences in volume level among broadcasters. Volume 1) Off 2) On Dolby Virtual Sound Off / On (Dolby Virtual simulates the effect of the Dolby Dolby Virtual Surround sound system, recreating the movie-theatre or concert-hall- quality sound.)
  • Page 39 2) Sub Available : PIP ON FM Radio Press the button on the front or the "FM RADIO" button on the remote control to select the "FM RADIO" feature. The direct button on the remote control is 'FM RADIO' button.
  • Page 40 : PC / DVI Description Area When you turn the power on of the product for the first time since it released Configuration from a factory, menu to select location will appear. Choose the region and country where you use the monitor.
  • Page 41 4) Opaque Blue Screen If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue screen" mode to "Off".

  • Page 42: Self-Test Feature Check

    2. Not Optimum Mode If the vertical resolution is not in optimum mode, you can still see the display but the warning message below appears and disappears after one minute. The user must adjust the frequency within that one minute.
  • Page 43 1) Click Start → Settings → Control Panel → Display → Settings → Advanced → Adapter → Update Driver → Next → Display a list of the known drivers for this device so that I can choose a specific driver → Next → Have Disk (Insert Video Card Driver diskette) → OK → Next → Next →...
  • Page 44 Ensure that the power cord is firmly connected and the LCD monitor is on. (Refer to the Connecting the monitor) Ensure that the signal cable is firmly connected to the PC or video sources. (Refer to the Connecting the monitor) Ensure that the PC or video sources are turned on.
  • Page 45 (Refer to the Volume) Check the volume level. (Refer to the Volume) If the volume is still too low after turning the control to its maximum, check the volume control on the computer sound card or software program. Adjust the...
  • Page 46 Saver. Set the function at BIOS-SETUP of the computer. (Refer to Windows/Computer Manual). Disconnect the power cord and then clean the monitor with a soft cloth, using either a cleaning solution or plain water. Do not leave any remains of the detergent nor scratch the...
  • Page 47 Color system NTSC-3.58/4.43 ,PAL-M/N, PAL/SECAM-L/L',B/G,D/K,I Video format CVBS , S-Video, Component input(Y,Pb,Pr) , SCART input Maximum Pixel Clock 162 MHz Power Supply AC 100 ~ 240 VAC(+/- 10%) , 60/50 Hz ± 3Hz Signal Cable 15pin-to-15pin D-sub cable, detachable, 1.8m...

  • Page 48: Power Saver

    This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed,or when left unattended for long periods.
  • Page 49 If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.
  • Page 50 Lebanon Egypt Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz...
  • Page 51 Service The address and phone number of the company can be changed without previous notice. AUSTRALIA : Samsung Electronics Australia Pty Ltd. Customer Response Centre 7 Parkview Drive, Homebush Bay NSW 2127 Tel : 1300 362 603 http://www.samsung.com.au/ BRAZIL : Samsung Eletronica da Amazonia Ltda.
  • Page 52 20063 Cernusco s/Naviglio (MI) Servizio Clienti: 199.153.153 http://www.samsung-italia.com/ MÉXICO : SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V. Vía Lopez Portillo No. 6, Col. San Fco. Chilpan Tultitlán, Estado de México, C.P. 54940 Tel: 01-55-5747-5100 / 01-800-726-7864 Fax: 01-55-5747-5202 / 01-800-849-1743 RFC: SEM950215S98 http://www.samsung.com.mx/...
  • Page 53 Tel. 214 148 114/100 Fax. 214 148 133/128 Free Line 800 220 120 http://www.samsung.pt/ SOUTH AFRICA : Samsung Electronics,5 Libertas Road, Somerset Office Park, Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa Tel : 0027-11-549-1621 Fax : 0027-11-549-1629 http://www.samsung.co.za/ SWEDEN/DENMARK/NORWAY/FINLAND :...
  • Page 54 Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm...

  • Page 55: For Better Display

    5. Do not display a still image( such as on a video game or when hooking up a DVD to this LCD_TV ) on the Color TFT-LCD ( Thin Film Transister Liquid Crystal Display) panel for a long time as it can cause screen image retention.
  • Page 56 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 57 The Federal Communications Commission Radio Frequency Interference Statement includes the following warning: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 58 Since it has not been possible so far for the majority of electronic equipment to be recycled in a satisfactory way, most of these...

  • Page 59: Environmental Requirements

    Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental toxins, PCBs, which are suspected to give rise to similar harm, including reproductive damage in fish eating birds and mammals, due to the bioaccumulative processes.
  • Page 60 Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.
  • Page 61 Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.
  • Page 62 Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.
  • Page 63 This equipment has been tested and found to comply with the limits for medical devices to the IEC 601-1-2:1994. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to other devices in the vicinity.

  • Page 64: Product Information (Image Retention Free)

    LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.
  • Page 65 Normal conditions are defined as continuously changing video patterns. When the LCD panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be slight difference in voltage between electrodes that work the liquid crystal (LC) in a pixel.
