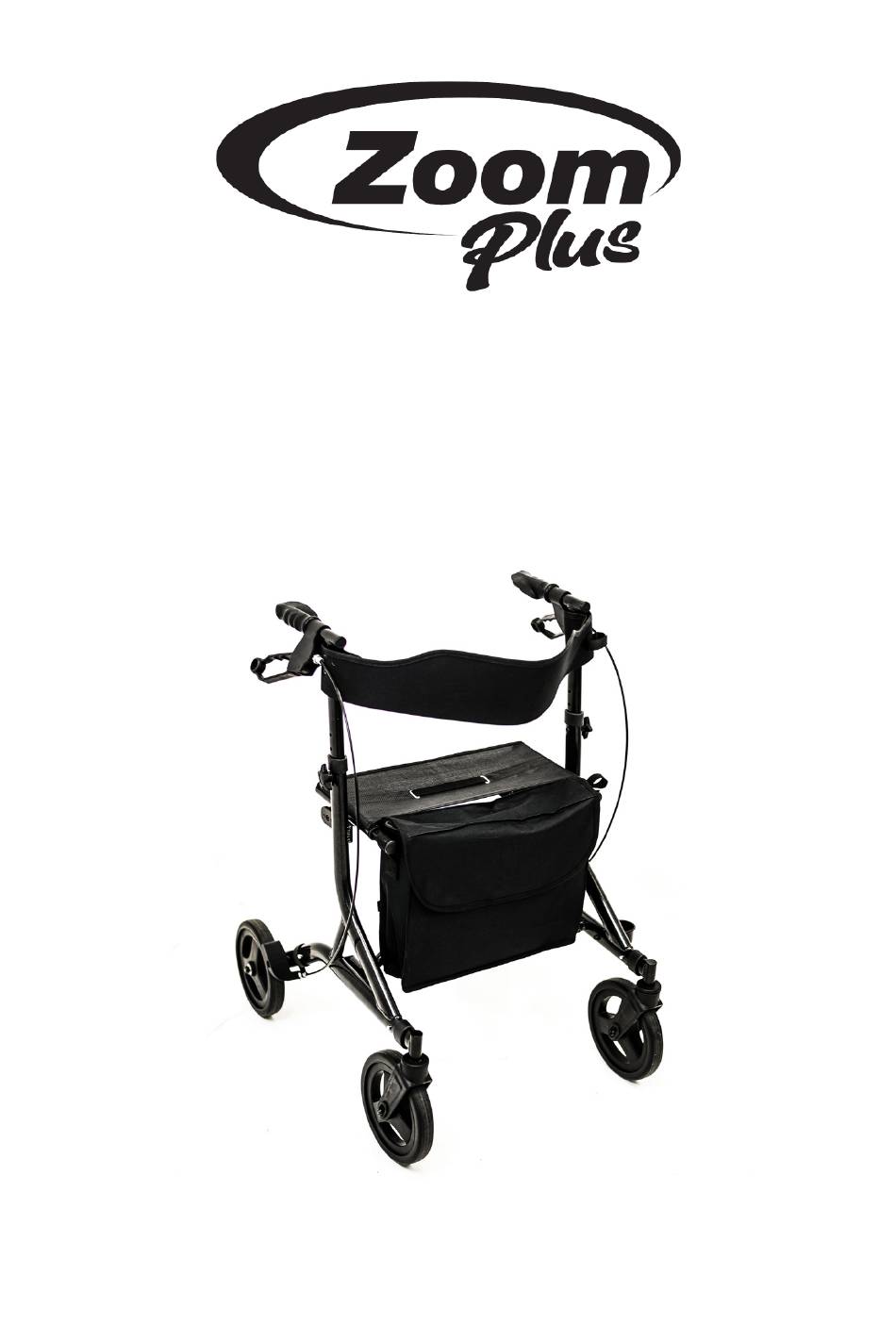

- Page 1 ROLLATOR USER MANUAL...
-
Page 2: Table Of Contents
Dear Customer Thank you for your purchase of our Zoom Plus rollator. Please find the following instrutions for use and product specifications. We wish you all the best with your new rollator. Contents Safety Guidelines Product Specifications Summary Assembly and User Instructions... -
Page 3: Product Specifications
Product Specifications The Zoom Plus rollator has been designed to assist the user to walk, rest and carry small items of shopping for both indoor and outdoor use on flat surfaces by a single individual with limited mobility with a maximum weight as in the below table. -
Page 4: Summary
The Zoom Plus Rollator has been designed to assist the user to walk, rest and carry small items of shopping for both indoor and outdoor use on flat surfaces by a single individual with limited mobility with a maximum weight as shown opposite. -
Page 5: Assembly And User Instructions
Assembly and User Instructions WARNING! Ensure that all bolts are securely fastened before using this rollator! Brakes must be in the parked /locked position before sitting on the rollator! 1. Remove all packaging and set out parts Front Wheels Handles Frame Seat Rear Wheels... - Page 6 2. Insert front and rear wheels Install front and rear wheel sets as shown. Put the wheel set tube into the frame tube and make sure the spring ball has popped out. Do the same for all four wheels. 3. Opening rollator To open the rollator, push down on either side of the cross bars as shown.
- Page 7 4. Inserting the handles Insert the handles as shown and push down to the required height. Use the tightening knobs provided to secure in place at the desired height. 5. Folding the rollator To fold the rollator pull up the strap in the middle of the seat as shown.
- Page 8 6. Rollator Bag Attach the bag to the rollator by placing the bag hoops over the two bag hangers postioned at the front of the seat as shown. Place the two Velcro bag straps around the rollator frame to secure the lower section of the bag.
- Page 9 8. Stick Holder Attatched to the rollator is a stick holder. Place your stick into the stick holder as shown and secure stick by using the Velcro strap attatched to the back rest. 9. Handle Height Adjustment To adjust the handle height up or down, undo the tightening knob and adjust the height.
- Page 10 11. Locking the Brakes (Parking Position) Push both brake levers down to apply and lock the brakes while the rollator is stationary. WARNING! Test the brakes regulary 12. Sitting on the Rollator Before sitting down on the rollator ensure the brakes are in the parking position and make sure the rollator is on an even surface and will not slide or topple over.
-
Page 11: Maintenance And Other
WARNING! Always apply brakes when in stationary position or when seated on rollator. WARNING! Do not hang bags or other items from handles - this will add stress to the rollator and could also make it unstable. Manufactured by One Rehab Ltd...
