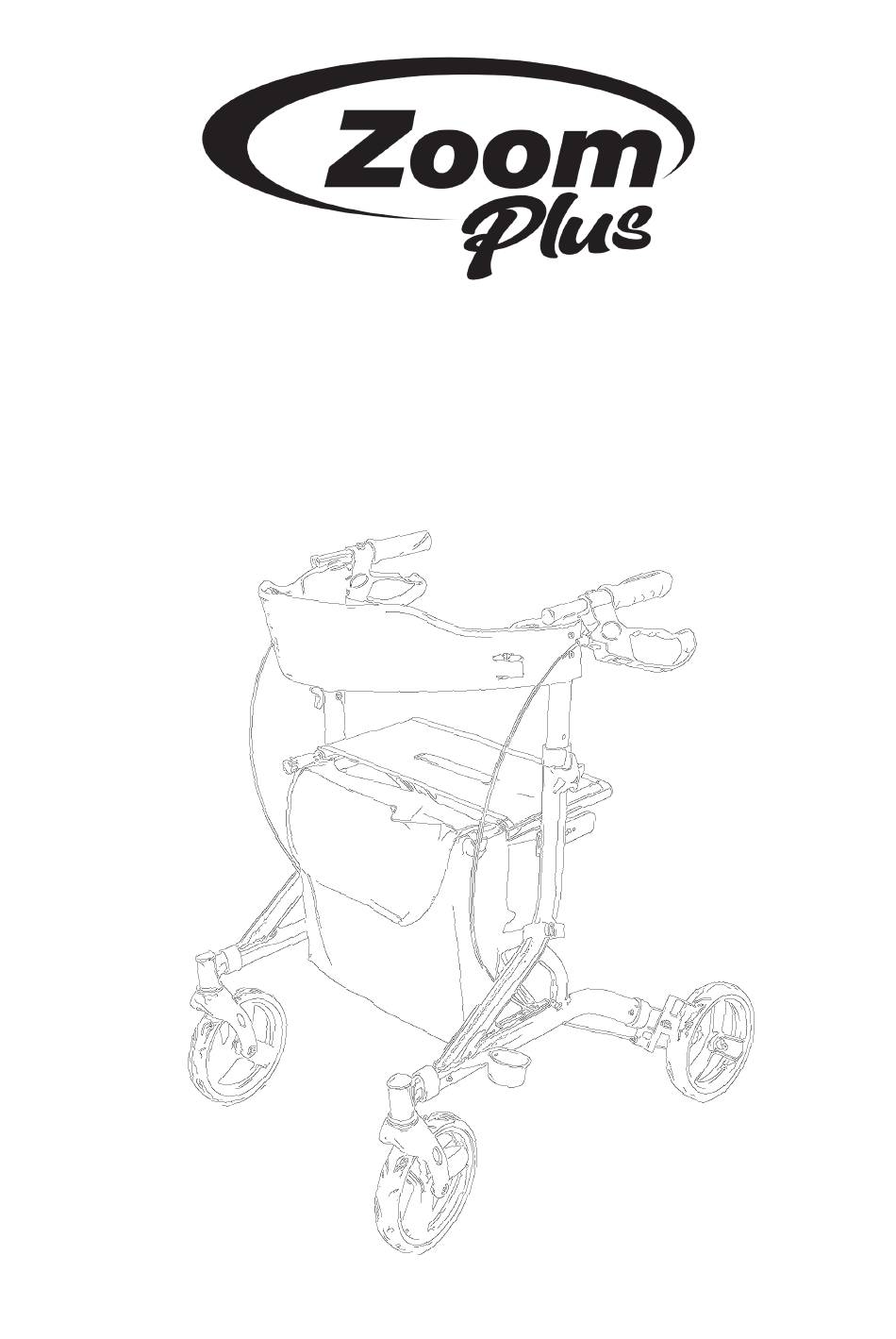

- Page 1 ROLLATOR USER MANUAL...
-
Page 2: Dear Customer
Dear Customer Thank you for your purchase of our Zoom Plus rollator. Please find the following instrutions for use and product specifications. We wish you all the best with your new rollator. Product Specifications The Zoom rollator has been designed to assist the user to walk, rest and... -
Page 3: Parts Description
Zoom Plus Specifications Model Reference Zoom Plus Rollator User Weight (Max) 21 st. (136kg) Total Weight 5.65 kg Seat Width 480 mm (19 in.) Seat Depth 200 mm (8 in.) Seat Height 560 mm (22 in.) Handle Height 810-910 mm Overall Width (Open) 625 mm (24.5 in.) - Page 4 Assembly and User Instructions WARNING! Ensure that all bolts are securely fastened before using this rollator! Brakes must be in the parked /locked position before sitting on the rollator! 1. Remove all packaging and set out parts Front Wheels Frame Rear Wheels Rollator Bag Back Strap...
- Page 5 3. Opening rollator. To open the rollator, push down on either side of the cross bars as shown. You should feel both sides click into position. WARNING! Be carful not to trap your fingers when pushing down the seat. 4. Inserting the handles Insert the handles as shown and push down to the required height.
-
Page 6: Folding The Rollator
5. Folding the rollator To fold the rollator pull up the strap in the middle of the seat as shown. Note: As shown, a band is supplied to hold the rollator together in folded postion... - Page 7 6. Rollator bag Attach the bag to the rollator by placing the bag hoops over the two bag hangers postioned at the front of the seat as shown. Place the two Velcro bag straps around the rollator frame to secure the lower section of the bag.
-
Page 8: Handle Height Adjustment
7. Back Strap Before using the rollator check that the back strap frame bolts are securely tightened and that the velcro straps are secure. 8. Stick Holder Attatched to the rollaor is a stick holder. Place your stick into the stick holder as shown and secure stick by using the Velcro strap attatched to the back rest. - Page 9 10. Braking For braking while moving, pull both brake levers upwards as shown and always brake slowly and steadily. 11. Locking the Brakes (Parking Position) Push both brake levers down to apply and lock the brakes while the rollator is stationary. WARNING! Test the brakes regulary...
- Page 10 12. Sitting on the Rollator Before sitting down on the rollator ensure the brakes are in the parking position and make sure the rollator is on an even surface and will not slide or topple over. Sit straight up and never lean backwards. Do not support your weight on the handle attempting to sit.
- Page 11 One Rehab...
- Page 12 Manufacture: One Rehab Ltd...
