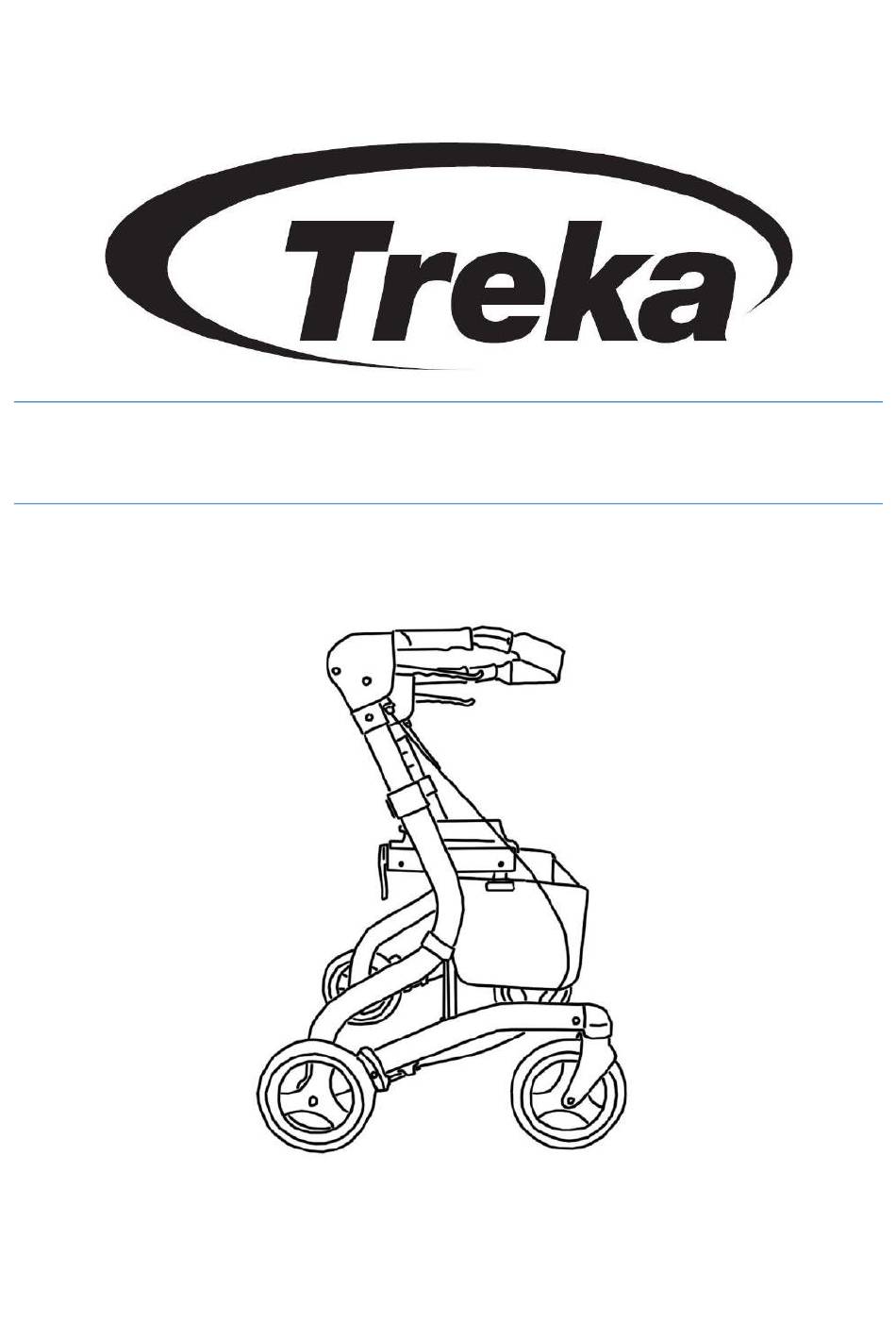

- Page 1 ROLLATOR USER MANUAL...

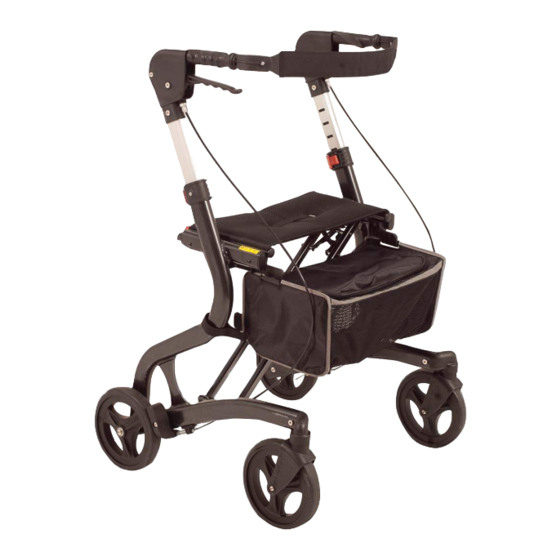

- Page 2 Dear Customer Thank you for your purchase of our Treka rollator. Please find the following instrutions for use and product specifications. We wish you all the best with your new rollator. Product Specifications The Treka rollator has been designed to assist the user to walk, rest and carry small items of shopping for both indoor and outdoor use on flat surfaces by a single individual with limited mobility with a maximum weight as shown below.
- Page 3 Treka Specifications Treka 480 Treka 540 Treka 610 User Weight 21.5 st. (136 kg) 21.5 st. (136 kg) 21.5 st. (136 kg) Total Weight 6.1 kg 6.2 kg 6.3 kg Seat Width 480 mm (18.9 in.) 480 mm (18.9 in.) 480 mm (18.9 in.)
- Page 4 Assembly & User Instructions WARNING! Ensure that all bolts are securely fastened before using this rollator! Brakes must be in the parked /locked position before sitting on the rollator! 1. Remove all packaging and set-out parts. 2. Un-folding the rollator: To open the rollator, un-hook the RED retaining clip as shown by lifting upwards.
- Page 5 3. Folding the rollator: To fold the rollator first unlock the RED retaining clip by lifting it upwards as shown below. Then lift the strap in the centre of the seat and continue to lift upwards to fold as shown. Once folded the RED retainging clip can be re-locked to hold the rollator in the folded postion for storage etc.
- Page 6 5. Installing the backrest: Slide the back strap into the backrest connector making sure the padded side of the back strap is facing to the inside of the rollator. Secure the back strap into position by tightening the screw and nut. 6.
- Page 7 7. Braking: For braking while moving, pull both brake levers upwards as shown and always brake slowly and steadily. Lifting the brake also releases the brake from locked position. 8. Locking the Brakes (Parking Position): Press both brake levers down to apply and lock the brakes while the rollator is stationary.
- Page 8 4. Always apply brakes when in stationary position or when seated on rollator. 5. Do not hang bags or other items from handles – this will add stress to the rollator and could also make it un-stable. Manufacture: One Rehab Ltd...
