Copernicus VRT101 Assembly Manual page 7

Vr storage tub – holds 10 all-in-one headsets

Advertisement

Actual Size:
3
1/4-20 x Lock Nut
C
2x
D
1/4-20 x 1/2" Hex Head Screw
2x

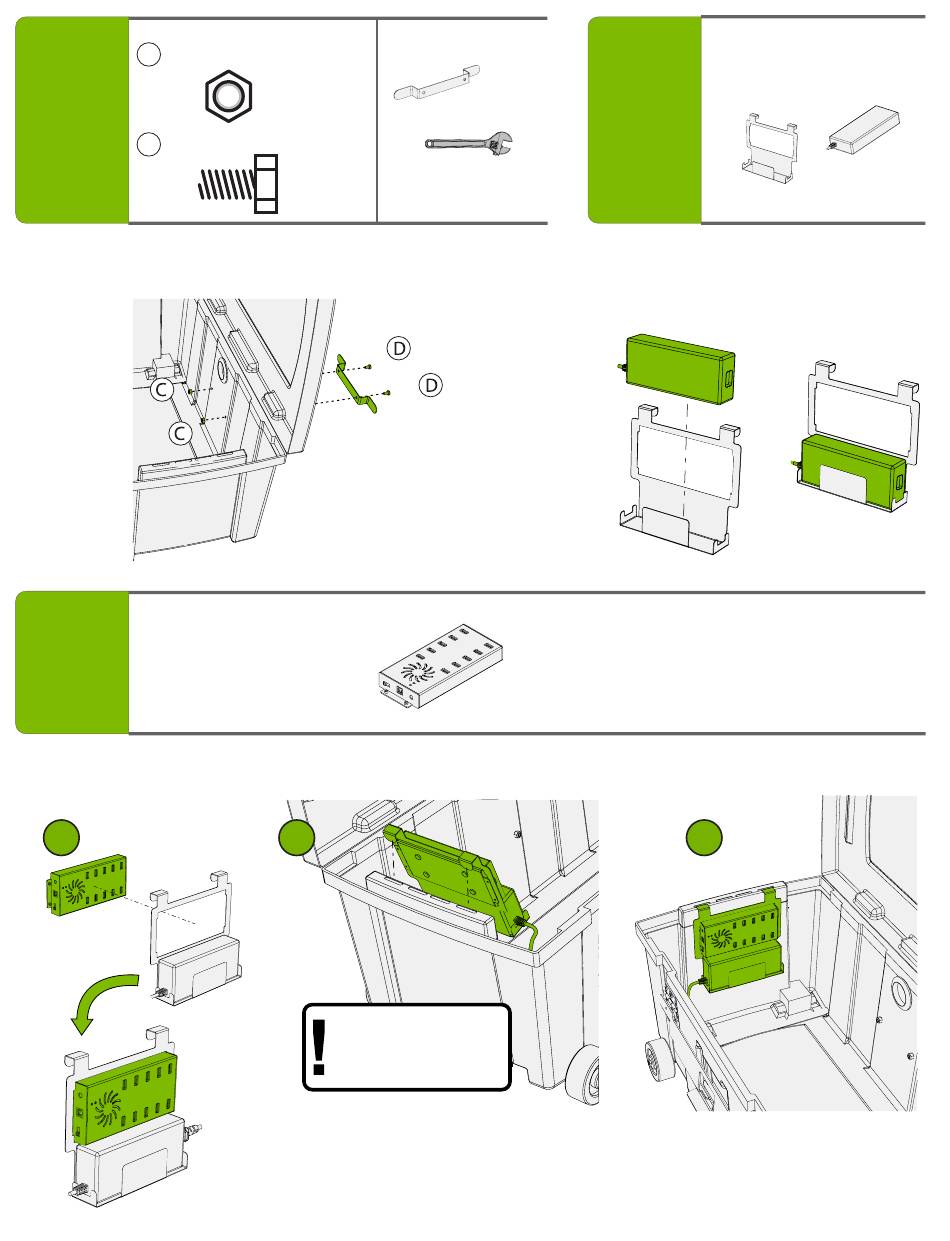

Install Cable Hook onto Tub
5
You will need: (Not to Scale)
Insert USB Hub into Mounting Bracket and Attach to Tub Wall
1
7
You will need: (Not to Scale)
Cable Hook
1x
Adjustable wrench
2x
OR
11mm or 7/16" wrench
2x
10 Port USB Hub
x1
2
USB hub MUST be
held in place when
installing bracket.
VRT101 - Version A - Released April 23, 2019 - Copernicus Educational Products Inc.
4
You will need: (Not to Scale)
Mounting
Bracket
x1
Insert Power Adapter into
Mounting Bracket
3
Power Adapter
x1
