Summary of Contents for Prismatibro DI-5 Series

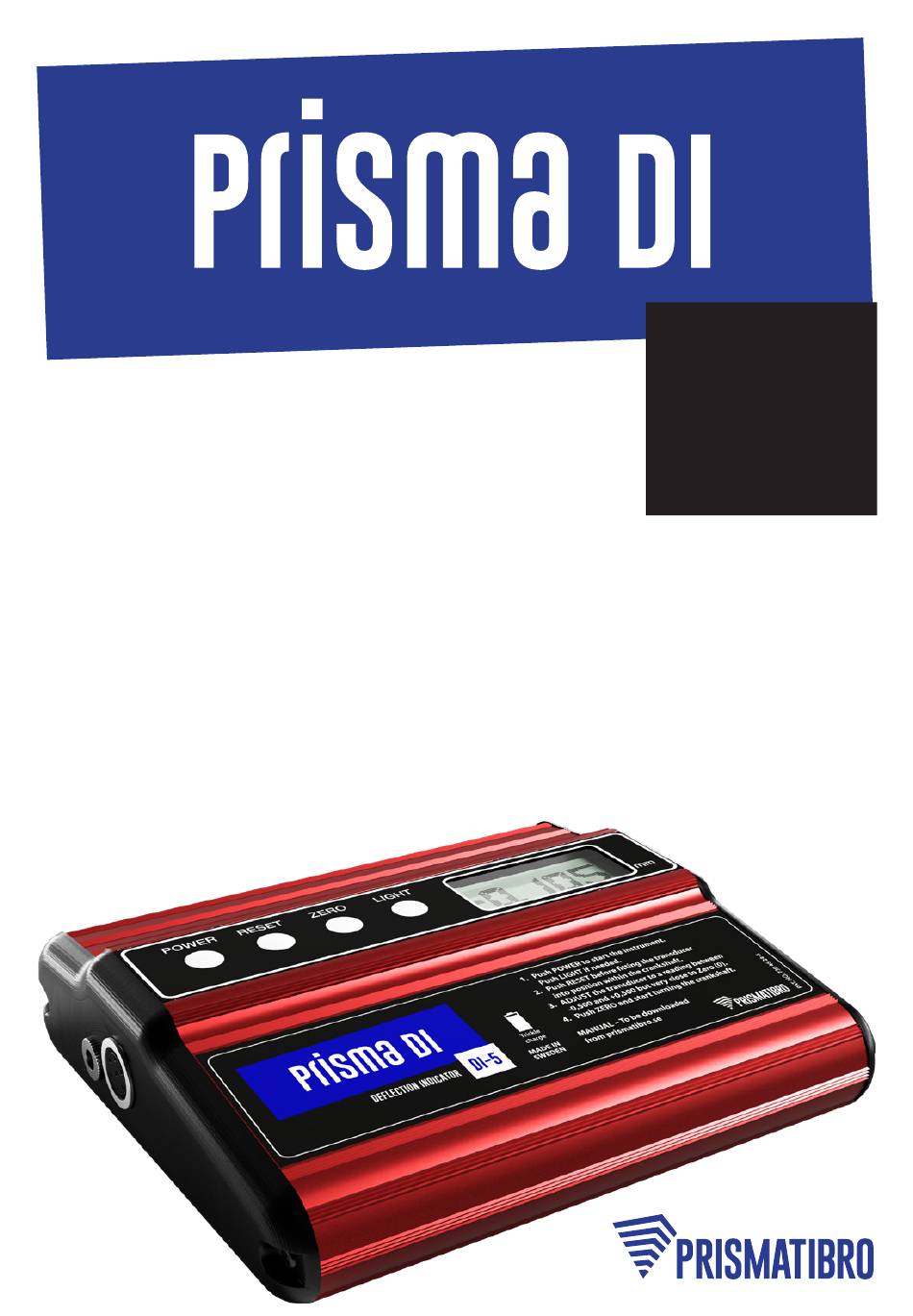

- Page 1 DI-5 M A N U A L I N S T R U M E N T...
- Page 2 INSTRUMENT OVERVIEW Display Push Buttons Battery Charge Port Transducer port Measuring Tip Transducer Locking Extension Bar 10 mm Ring Extension Bar 20 mm Extension Bar 40 mm Extension Bar 80 mm Adjusting sleeve, 10 mm Extension Bar 160 mm...
- Page 3 HOW TO USE THE INSTRUMENT 1. Ensure that the cable is properly connected. 2. Select the applicable extension bar(s). NOTE 1 Don´t fit the transducer yet. If the DI-5 is not used for 3. Push POWER button and hold shortly. a long time, then it´s Check the battery level when battery symbol show up.
- Page 4 FACTS ABOUT PRISMA DI-5 TOLERANCE Prisma DI-5 has a tolerance of max. 1% in the range of +/- 1,000 mm and max 2% in the range of 1,000-2,000 mm. HOW TO ACHIEVE OPTIMUM RESULTS An accurate measurement result can be achieved if both transducer and the measured object (Crankshaft) are having the same temperature so that the transducer temperature is not changed during the measurement.
- Page 5 MAINTENANCE • The calibration certificate supplied with the Prisma DI-5 is valid for 3 years. Please contact us if you would like to re-calibrate it. • Make sure that the extension bars and measuring tips are in good condition and replace it if it’s needed. CHANGE TRANSDUCER TIP 1.
- Page 6 SPARE PART LIST ITEM NO DESCRIPTION 412-2005 Transducer Standard, min 89 mm including measuring tip 10 mm 412-2214 Transducer Tip, Standard 412-2643 Adjusting sleeve, Standard, 12 mm 412-2794 Locking Ring, Standard, 12 mm 412-2893 Cable 7p/5p DIN, 3,6 meter 412-2897 Cable 7p/5p DIN, 7 meter 412-2899 Magnet to be Attached to cable 423-3005 Transducer Small, min 60 mm, including measuring tip 7 mm 423-3637 Adjusting sleeve, small 10 mm...
- Page 7 RECYCLING Decommissioning and Recycling of Prisma DI-5 • The metal parts to be recycled as metals • The electronic parts to be recycled as electronics • The plastic case/bag to be recycled as plastic • The Lithium Ion battery to be recycled as Dangerous Goods...

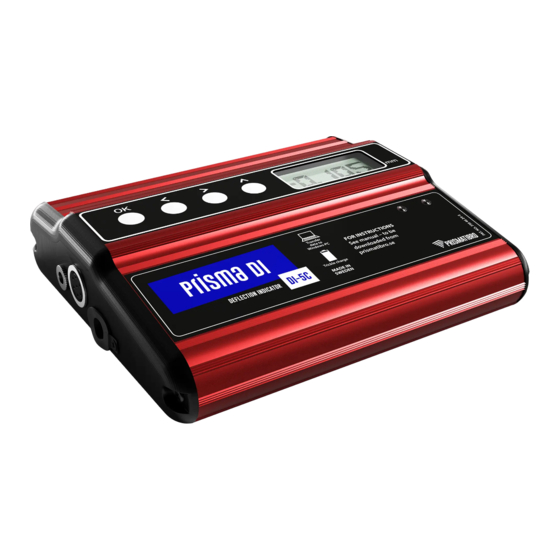

- Page 8 Prisma DI-5C • Made In Sweden • Easy To Use • Accuracy: 1/1000 mm • Trickle Charge • Option: Ovality Kit • Transfer to Windows-PC Prisma DI Ovality Kit ITEM NO 488-8100 Cylinder liner maintenance. The Ovality Kit is an accessory to the Prisma DI-5C and Prisma DI-5. The method is simply giving 5 measuring points at each level of the liner.
