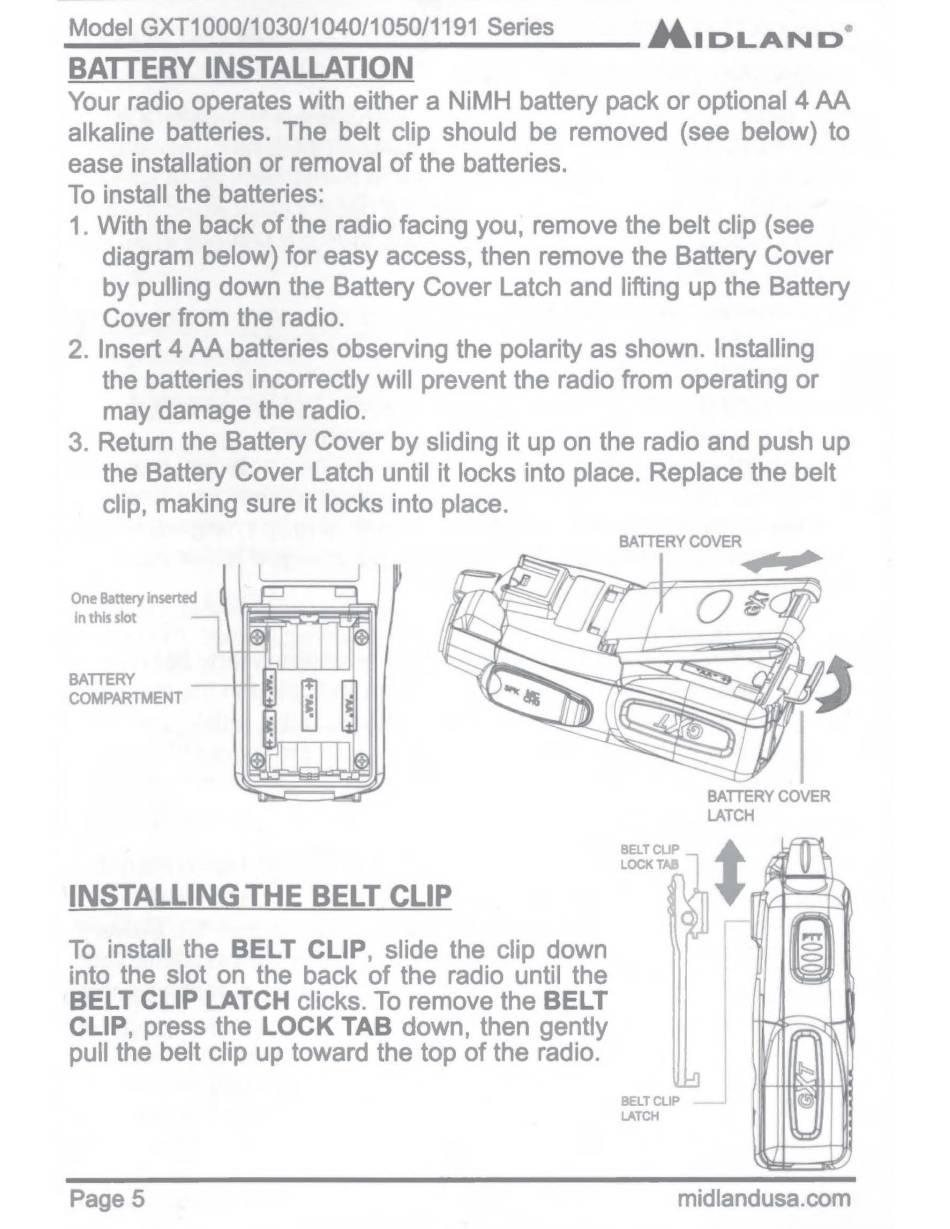

BATTERY INSTALLATION
Your radio operates with either a NiMH battery pack or optional 4 AA
alkaline batteries. The belt clip should be removed (see below) to
ease installation or removal of the batteries.
To install the batteries:
1. With the back of the radio facing you, remove the belt clip (see
diagram below) for easy access, then remove the Battery Cover
by pulling down the Battery Cover Latch and lifting up the Battery
Cover from the radio.
2. Insert 4 AA batteries observing the polarity as shown. Installing
the batteries incorrectly will prevent the radio from operating or
may damage the radio.
3. Return the Battery Cover by sliding it up on the radio and push up
the Battery Cover Latch until it locks into place. Replace the belt
clip, making sure it locks into place.
One Battery inserted
In this slot
BATTERY
COMPARTMENT
7
INSTALLING THE BELT CLIP
To install the
BELT CLIP,
slide the clip down
into the slot on the back of the radio until the
BELT CLIP LATCH
clicks. To remove the
BELT
CLIP, press the LOCK TAB down, then gently
pull the belt clip up toward the top of the radio.
Page5
BATTERY COVER
BELT CUP
LATCH
g •
4 •
BATTERY
COVER
LATCH
*
r
