Limiter; Hf Limiter - Maselec MPL-2 Quick Start Manual

input: 1 kHz burst +22 dBu

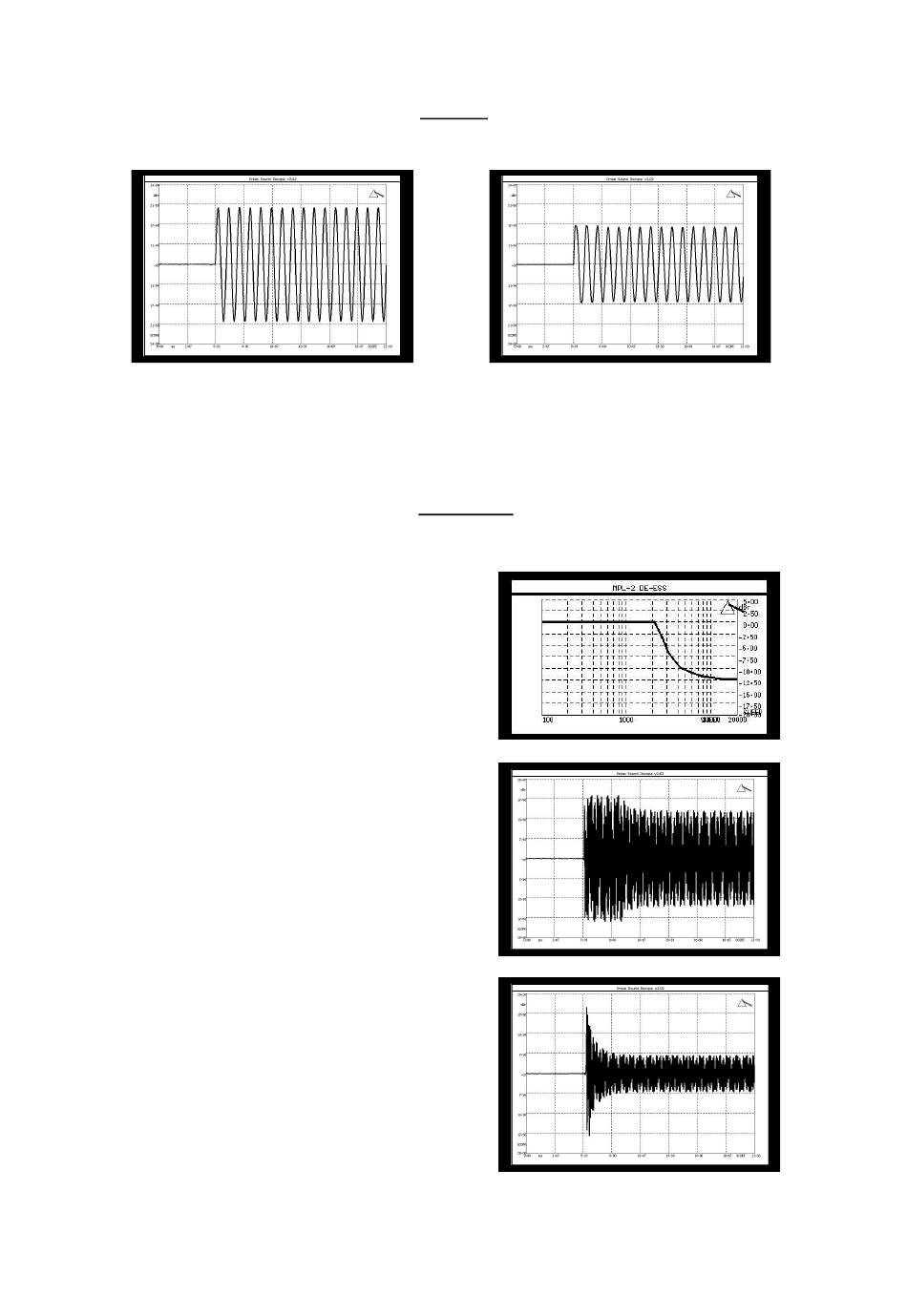

The diagrams above show how the limiter reduces the output level by 3 dB without overshoot
or distortion of the waveform.
Output frequency response when
the HF limiter is adjusted for max.
high frequency reduction.
4dB reduction: 5msec attack.
10 dB reduction: 1 msec attack
This shows how the attack time
becomes shorter when high
frequency reduction is increased.

LIMITER

output: threshold = +18 dBu

HF LIMITER

MASELEC MPL-2
Peak & High Frequency Limiter
