Summary of Contents for Maselec MPL-2

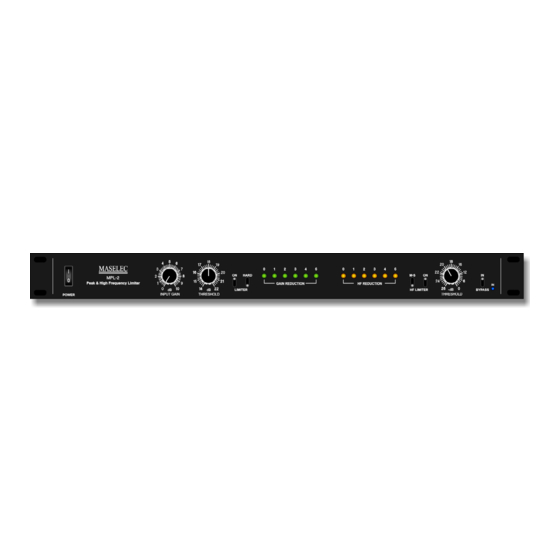

- Page 1 MPL-2 Peak & High Frequency Limiter http://www.maselec.com...
- Page 2 Part of the high frequency limiter circuit is also used to reduce distortion from the wide- band limiter. Users of the MPL-2 will notice the removal of spurious peaks, and an increase of subjective levels, without the coloration and increased distortion so often associated with soft clippers and other ultra fast limiters.
- Page 3 HF limiter is adjusted for max. high frequency reduction. 4dB reduction: 5msec attack. 10 dB reduction: 1 msec attack This shows how the attack time becomes shorter when high frequency reduction is increased. MASELEC MPL-2 Peak & High Frequency Limiter Page 3 of 5...
- Page 4 This is normally the case when de-essing vocals. Switching to M-S reduces HF limiting on ‘stereo’ signals whilst retaining the limiting on centre signals. Note: The actual audio path is not M-S processed. MASELEC MPL-2 Peak & High Frequency Limiter Page 4 of 5...
- Page 5 • For unbalanced connections either pin 2 or pin 3 should be terminated to audio ground. • Always connect audio screens to pin 1. • Do not place the MPL-2 near or above other units producing excessive heat or electro-magnetic fields.
